Can Gibault Joints Be Reused After Pipe Maintenance?

Gibault joints are widely used to connect or repair plain-ended pipes in municipal water systems, irrigation networks, drainage pipelines and other utility applications. Their detachable mechanical design makes them especially useful when a damaged pipe section must be removed and replaced without welding, threading or complicated pipe-end preparation.

However, after a pipeline has been opened for maintenance, contractors and utility operators often face an important question: Can the existing Gibault joint be reused, or should the entire joint be replaced?

In many situations, a Gibault joint can be reused, but reuse should never be automatic. The body, end rings, rubber seals, bolts and nuts must be inspected separately. Some components may remain suitable for service, while others—particularly aged rubber gaskets or corroded fasteners—may need replacement.

The final decision should consider the joint condition, pipe material, operating pressure, transported medium, maintenance history and applicable project requirements.

How a Gibault Joint Creates a Seal

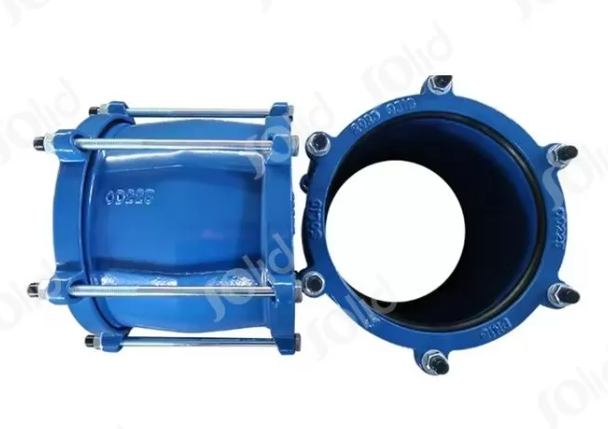

A typical Gibault joint consists of a center sleeve, two end rings or glands, rubber sealing rings, bolts and nuts. When the bolts are tightened, the end rings move toward the center sleeve and compress the rubber gaskets against the outside surface of the pipe.

This gasket compression creates a watertight mechanical connection. Because the joint connects plain pipe ends, it can simplify pipeline maintenance and reduce the need for permanent welded or flanged connections.

Solid Joints supplies Gibault joints for PVC and asbestos cement pipe applications, with options including ductile iron or cast iron bodies, EPDM or NBR seals, corrosion-resistant coatings and galvanized or stainless steel fasteners. Depending on the model, common pressure ratings include PN10 and PN16.

The same compression principle that makes installation convenient also explains why reuse requires careful inspection. The metal components may retain their original shape for many years, but the gasket has already been compressed and exposed to pressure, temperature, water chemistry and environmental conditions.

The Direct Answer: Yes, but Only After Inspection

A previously installed Gibault joint may be reused when:

• ·   The center sleeve and end rings are not cracked, bent or heavily corroded.

• ·   The sealing surfaces remain smooth and dimensionally stable.

• ·   The joint still matches the outside diameter of the repaired pipe.

• ·   The bolts and nuts have undamaged threads and sufficient remaining strength.

• ·   Suitable replacement gaskets are installed when the original seals are aged, damaged or permanently deformed.

• ·   The reassembled connection passes the required pressure and leakage tests.

Reuse is generally more practical when the joint has been in service for a relatively short period, was installed correctly, operated within its specified pressure and temperature limits, and can be removed without damaging its components.

By contrast, reusing an old joint from a buried pipeline with unknown service history introduces more uncertainty. Long-term corrosion, gasket hardening, chemical exposure and repeated pipe movement may not be obvious until the joint is disassembled.

Which Components Can Usually Be Reused?

Center Sleeve

The center sleeve is often the most reusable component because it does not normally undergo the same level of permanent deformation as the rubber seal.

Before reuse, inspect the sleeve for:

• ·   Cracks or impact damage

• ·   Ovality or dimensional distortion

• ·   Deep corrosion or pitting

• ·   Damaged gasket seating areas

• ·   Loss of coating

• ·   Sharp edges that could cut the new gasket

Minor coating damage may sometimes be repaired using a compatible protective coating. However, deep corrosion around the sealing area can prevent uniform gasket contact and increase the risk of leakage.

Pipe-coupling performance depends heavily on uniform contact between the gasket and the pipe surface. Dents, score marks, weld beads, deposits and other irregularities in the sealing area can reduce the pressure capability of the assembled connection.

End Rings or Glands

End rings may also be reused if they remain flat, round and free from cracks. Check all bolt holes for elongation, wear or damage.

Uneven end rings can apply inconsistent pressure to the gasket. One part of the seal may be over-compressed while another part remains insufficiently compressed, creating a potential leak path.

The two end rings should move evenly toward the sleeve during tightening. If one ring is distorted or binds against the bolts, replacing the joint is usually safer than attempting to force the assembly into position.

Bolts and Nuts

Bolts and nuts should not be reused solely because they can still be threaded together. Inspect them for:

• ·   Rust and section loss

• ·   Damaged or flattened threads

• ·   Bent bolt shanks

• ·   Galling on stainless steel fasteners

• ·   Cracked nuts

• ·   Previous over-tightening

• ·   Uneven stretching or permanent elongation

Light surface corrosion may be manageable in some non-critical applications, but severely corroded or damaged fasteners should be replaced.

Replacement bolts must match the required diameter, length, strength grade and material. Mixing fasteners of different grades can produce uneven clamping forces, even when all nuts appear equally tight.

Solid Joints offers Gibault joint fastener options such as galvanized carbon steel, hot-dip galvanized steel, SS304 and SS316, depending on the product configuration and project requirements.

Should the Rubber Gaskets Be Reused?

The rubber gasket requires the most conservative decision.

In theory, a gasket that remains flexible, undamaged and dimensionally correct might still produce a seal. In practice, installing new gaskets is normally the more reliable approach, particularly for pressurized water mains, buried pipelines and locations where another shutdown would be expensive.

Rubber seals gradually experience compression set. After remaining compressed for years, a gasket may not return fully to its original profile when removed. It may look acceptable but no longer provide sufficient sealing force after reinstallation.

Compression-coupling manufacturers emphasize that gasket performance depends on the seal retaining both flexibility and compressive stress throughout its operating life. Elevated or fluctuating temperatures can accelerate elastomer relaxation and reduce joint life.

Replace the gasket when it shows:

• ·   Cracks, cuts or tears

• ·   Hardening or brittleness

• ·   Swelling or softening

• ·   Permanent flattening

• ·   Surface crazing

• ·   Chemical attack

• ·   Loss of elasticity

• ·   Distortion during removal

• ·   Embedded rust, grit or sharp debris

For critical installations, the cost of new seals is usually small compared with the labor, excavation, water loss and service interruption caused by a leaking reused gasket.

The replacement gasket must also be compatible with the service medium. EPDM is commonly selected for potable water, drainage and sewage services, while NBR is generally more appropriate where oils, fuels or certain hydrocarbons may be present. Gasket selection must also account for operating temperature and chemical concentration.

When Should the Entire Gibault Joint Be Replaced?

Complete replacement is generally recommended when any of the following conditions exist:

The body or end rings are cracked

Cracked castings should never be repaired by tightening the joint more heavily. Additional torque can enlarge the crack or create sudden failure after the system is pressurized.

Corrosion has reached the sealing surface

Surface rust on an external area may not immediately affect performance. Deep pitting beneath the gasket, however, can create leakage channels that a new seal cannot reliably compensate for.

The joint has become distorted

A joint damaged during excavation, removal or previous over-tightening may no longer compress the gasket evenly.

The pipe outside diameter has changed

Gibault joints are often designed for a specific pipe outside diameter. A fitting removed from one pipe should not automatically be installed on another pipe simply because the nominal diameter is similar.

PVC, PE, ductile iron, steel and asbestos cement pipes may have different outside diameters for the same nominal size. Measure the actual pipe OD and verify that it falls within the fitting’s approved range.

The service conditions have changed

A joint previously used in a low-pressure irrigation line may not be suitable for a higher-pressure municipal water system. Reuse should be reconsidered when working pressure, test pressure, temperature, medium or installation environment changes.

The maintenance history is unknown

When there is no reliable record of installation date, pressure exposure, previous leaks or bolt tightening, installing a new joint may be more economical than accepting an uncertain risk.

Recommended Inspection Process Before Reuse

After isolating, draining and depressurizing the pipeline, disassemble the Gibault joint carefully. Avoid hammering directly on coated surfaces or forcing the end rings off the pipe.

Clean all reusable metal components and inspect them under good lighting. Pay particular attention to the internal sleeve edges, gasket seats and bolt holes.

The following procedure can support a more reliable decision:

1. Confirm the pipe material and measure its actual outside diameter.

2. Check the joint identification, size and pressure rating.

3. Inspect the sleeve and end rings for cracks, deformation and corrosion.

4. Examine coating condition, particularly beneath the original gasket position.

5. Check bolts and nuts for corrosion, thread damage and elongation.

6. Replace questionable gaskets and fasteners.

7. Clean the pipe surface where the new gasket will sit.

8. Remove dirt, scale, burrs, paint buildup and other irregularities.

9. Center the joint correctly over the pipe-end gap.

10. Tighten bolts gradually and evenly in an alternating sequence.

11. Follow the manufacturer’s recommended lubricant and tightening instructions.

12. Conduct the required leakage or pressure test before backfilling or returning the pipeline to normal service.

Do not use excessive bolt torque to compensate for a damaged gasket, corroded sleeve or incorrect pipe diameter. Over-tightening can distort the end rings, damage the gasket and increase rather than reduce leakage risk.

Special Considerations for Asbestos Cement Pipe

Gibault joints are frequently used when maintaining old asbestos cement, or AC, water pipelines. In these projects, joint inspection is only one part of the maintenance plan.

Cutting, sawing or breaking asbestos cement pipe can release airborne asbestos fibers. Work involving AC pipe should therefore be completed by trained personnel using applicable engineering controls, wet methods, personal protective equipment, disposal procedures and local regulatory requirements. OSHA notes that asbestos cement pipe can release fibers when cut, sawed or broken and identifies specific training and work-practice requirements for AC pipe operations.

A reusable Gibault joint does not eliminate the safety obligations associated with disturbing the pipe itself.

Is Reusing a Gibault Joint Cost-Effective?

Reusing serviceable metal components can reduce material costs and shorten repair time. It may be practical during planned maintenance when the joint is relatively new, fully documented and easy to inspect.

However, reuse stops being economical when it increases the probability of a second excavation or shutdown. For underground municipal pipelines, labor, traffic control, water isolation and site restoration can cost far more than a new joint.

A sensible maintenance strategy is often to reuse sound sleeves and end rings only after inspection, while installing new seals and replacing questionable fasteners. For highly critical systems, complete replacement provides greater predictability.

Final Recommendation

Gibault joints can be reused after pipe maintenance, but they should be treated as inspectable assemblies rather than automatically reusable fittings.

The ductile iron sleeve and end rings may remain suitable when they are dimensionally sound, corrosion-free in the sealing areas and compatible with the repaired pipe. Bolts may be reused only when their condition, material and threads remain acceptable. Rubber gaskets require the strictest evaluation and should generally be replaced when their age or service condition is uncertain.

Before ordering replacement components or a new Gibault joint, provide the supplier with the pipe material, actual pipe outside diameter, working pressure, temperature, transported medium and required quantity. Solid Joints offers Gibault joints for PVC and AC pipe applications with multiple body, gasket, coating and fastener options for water pipeline connection, repair and maintenance projects.
