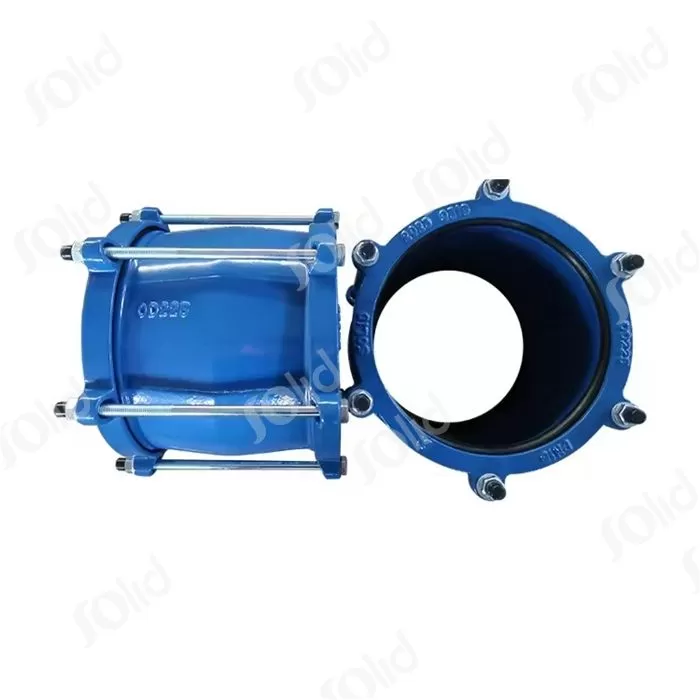

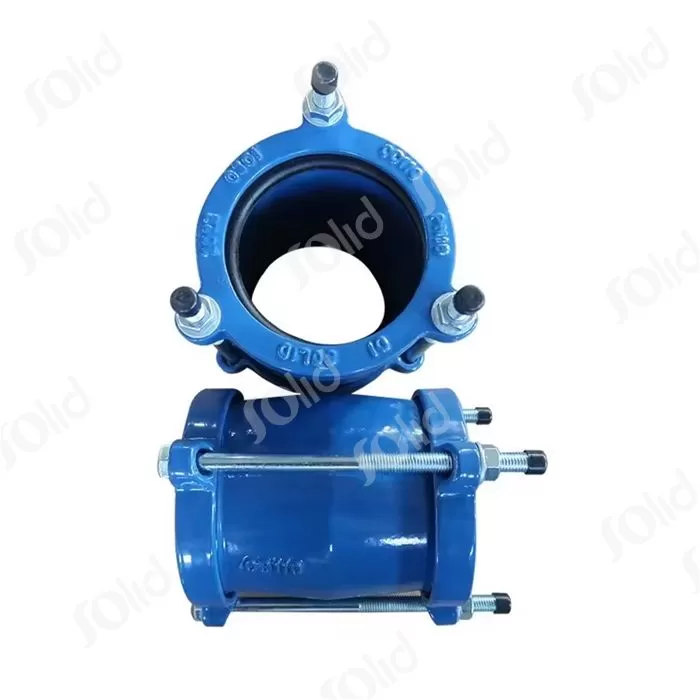

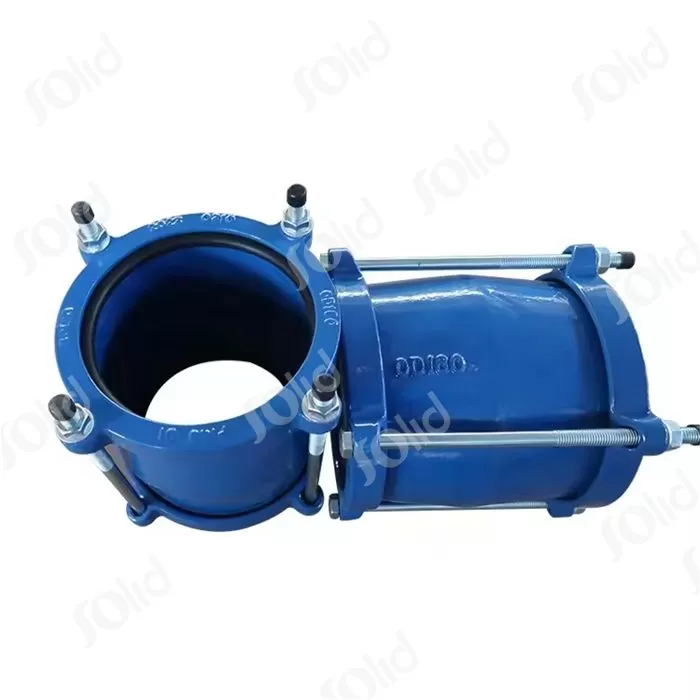

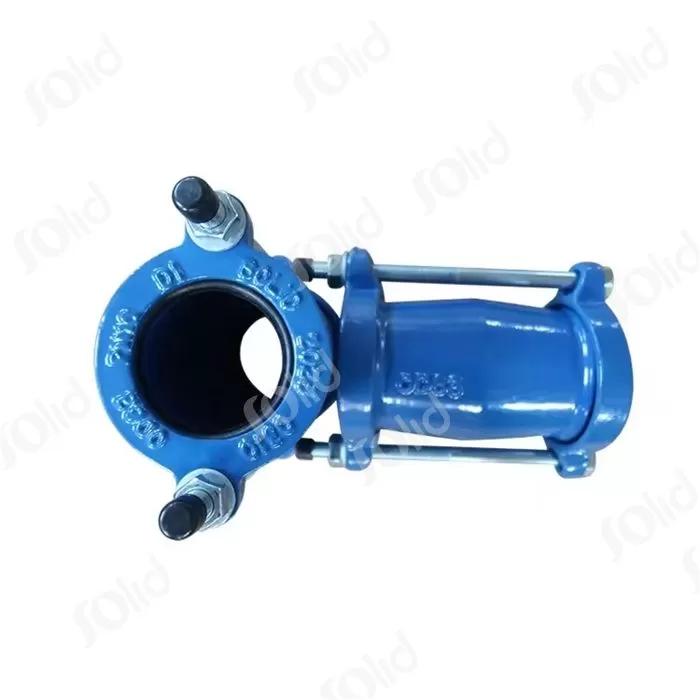

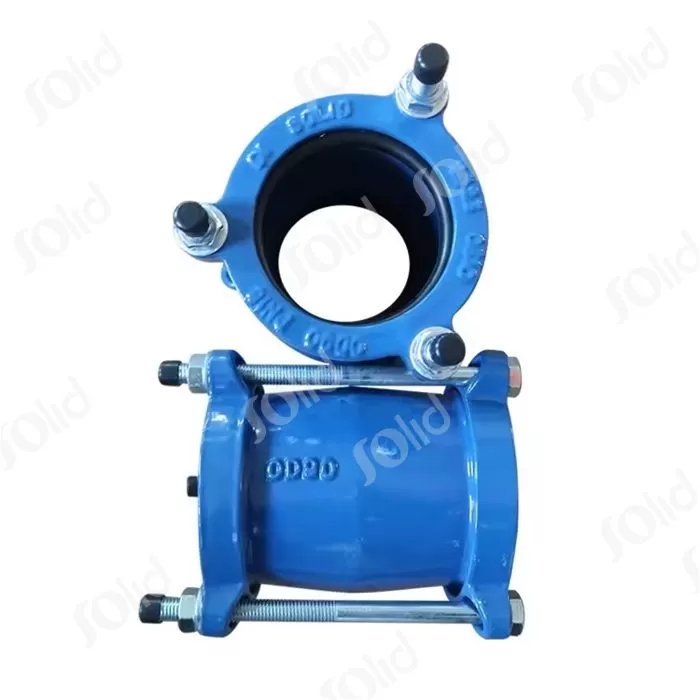

Gibault Joint for PVC

The Gibault joint is a type of pipe fitting designed to connect two pipes of the same or different diameters. It is particularly useful for repairing or joining pipes without the need for welding or threading. The joint consists of a central body with glands on either side, secured with bolts and gaskets to create a watertight seal. Gibault joints are commonly used in water supply systems, irrigation, and sewage pipelines due to their ease of installation and ability to accommodate pipe misalignment.

Solid Design manufactures several types of Gibault joints specifically for PVC and PE pipes. They are typically used to connect PVC plain-end pipes, while the long-body type can also be applied to low-pressure HDPE pipes. As a Gibault joint manufacturer in China, we offer a variety of Gibault joints to meet different piping requirements.

The gibault joint for PVC pipe is a specialized product tailored for connecting plain ends of PVC pipes with precision. Unlike universal couplings, the ductile iron joints are crafted to match the outer diameter of a single pipe, ensuring a snug fit that simplifies the tightening process and enhances sealing performance.

This pvc expansion coupling is engineered to handle higher pressures than comparable wide-range couplings, offering superior strength and reliability. Made from top-grade materials, the gibault joint is designed for durability and optimal performance in various pipeline systems, making it an essential component for connecting PVC pipes of different diameters in demanding environments.

PVC expansion joint is known for its innovation and ease of use. It is designed to make the installation process quick and simple. This is an important feature for workers who want to minimize labor while also improving the overall efficiency of their pipeline system. The pvc pipe union helps prevent leakage and ensures that the flow of water or other liquids is smooth and even.

The ductile iron gibault joint is manufactured to meet strict quality standards and passes rigorous testing. This ensures that it is reliable and will function optimally without any issues. Additionally, flanged gibault joint is compatible with a wide range of PVC pipes and is easy to install without any specialized tools or equipment.

Gibault Joint for PVC is an innovative solution for connecting PVC pipes of different diameters. It provides a secure and lasting connection that helps improve the efficiency and reliability of your pipeline system. With its quality materials, ease of use, and compatibility with a variety of PVC pipes, wholesale gibault joint for pvc pipe is a must-have investment for any pipeline system.

PERFORMANCE DATA:

• Max Recommended Operating Pressure: 1200 Kpa

• Min Recommended Operating Pressure: -80 Kpa

• Max Recommended Operating Temperature: 60 Celsius

STANDARD MATERIALS:

• Sleeve: Grey Iron to AS1830

• Flanges: Grey Iron to AS1830

• Bolts: Hot Dipped Galvanised Cup Head

• Seals: Natural Rubber to AS1646

OPTIONS:

• Sleeve Coating: Bitumen Dip, Rilsan Nylon 11, Napguard:

• Flanges Coating: Bitumen Dip, Rilsan Nylon 11, Napguard

• Bolts Material: Stainless Steel, Powder Coated, Black

• Seals: Alternative rubber compounds available upon request

Products are available for application outside the standard performance criteria listed above. Please contact your Crevet Technical Representatives at your nearest for more information.

What is a Gibault Joint?

The Solid Gibault joint is specifically designed for the plain ends of PVC and HDPE pipes. For other types of pipes, similar fittings are usually called couplings, which connect pipe plain ends. Unlike universal couplings, the Gibault joint is tailored to the outer diameter of a specific pipe, ensuring an accurate fit and making installation quick and easy. Its sealing performance is excellent, and it can withstand higher pressures than a wide-range coupling of the same size.

Gibault joints are also more cost-effective than wide-range couplings of the same size because they are designed for a specific pipe type. The rubber ring is lighter, and the gland and middle sleeve have a simpler design. For HDPE pipes, if a brass grip ring is not required, a long Gibault joint can be used, offering a faster connection and lower cost compared to restrained couplings.

If your goal is simply to connect two PVC spigot ends, a Gibault joint is the best choice in terms of both performance and price. However, pipe couplings have their own advantages depending on the design. For example:

• ·  Maxifit Coupling: connects multiple pipe types, reducing inventory needs.

• ·  Mechanical Joint Coupling: includes a locking function.

• ·  Step Coupling: allows transition between different pipe sizes.

Customers should choose based on their specific requirements.

What Determines if a Gibault Joint is Good?

As a manufacturer with over 20 years of experience producing Gibault joints, we often encounter clients concerned that our bolt numbers or gasket shapes differ from what is commonly used in their local market.

The answer: there is no need to worry. Our professional designers carefully consider all aspects to ensure that our Gibault joints perform reliably.

The variations in style are due to the absence of a uniform international standard for Gibault joints, so designs may differ from country to country.
