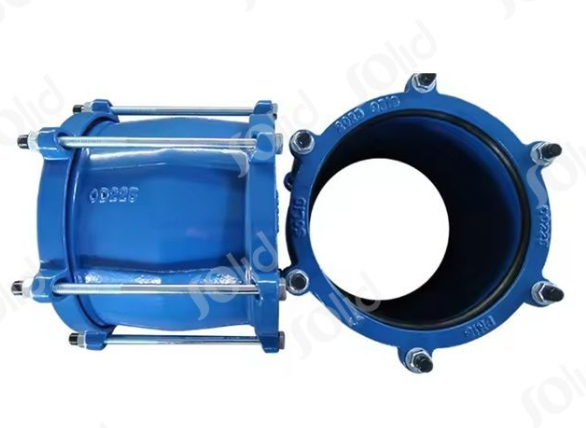

What is the Restrained Flexible Joint in Ductile Iron Pipes?

A restrained flexible joint (RFJ) in ductile iron pipe systems is a purpose-built connection that combines two important behaviors: it allows controlled angular and lateral flexibility while preventing pipes from pulling apart under axial loads. In plain terms, the joint can bend a little to follow alignment changes or ground movement, but it will hold firm against forces that would otherwise separate or push the pipeline out of its installed position.

Why it matters

Ductile iron pipes are used for water, sewage and industrial pipelines because of their strength and durability. However, pipelines still face several axial forces: internal pressure thrust at bends and tees, thermal expansion and contraction, soil movement, and transient forces from pump starts or hydrant closures. If joints are simply flexible without restraint, these axial forces can cause pipe separation, leaks, or damage. Traditional solutions include massive concrete thrust blocks, but restrained flexible joints provide a cleaner, more controlled, and often space-saving method of resisting axial loads while retaining some flexibility.

How a restrained flexible joint works

At its core, an RFJ consists of the standard flexible socket-and-spigot connection used on ductile iron pipes, plus a mechanical restraint mechanism integrated into the socket (or attached externally). Key elements include:

• Gasketed sealing surface: Maintains a watertight seal while permitting small rotations or deflections.

• Mechanical restraint feature: Often this is a set of internal wedges, lugs, or cast-in clamps that engage the spigot when axial loads try to pull the joint apart.

• Bolts or screws: In some systems, bolts compress the restraint elements or connect an external harness that locks pipe ends together.

• Coatings/linings: Pipes and joint components are typically lined and coated to resist corrosion where metal-to-metal contact may occur.

When axial tension develops, the restraint engages and transfers that load through the joint into the pipe wall and surrounding soil. For moderate bending or angular movement, the gasket compresses and the joint flexes, allowing the pipeline to accommodate misalignment or movement without losing seal integrity.

Typical applications

Restrained flexible joints are widely used where space, soil conditions, or loading make conventional thrust blocks impractical:

• Horizontal and vertical bends where thrust forces are significant.

• Dead ends and terminal fittings.

• Trenchless installations (directional drilling or jacking) where placing concrete is difficult.

• Seismic zones or areas with high frost heave risk.

• Confined urban locations where compact restraint is required.

Benefits

• Compact design: Eliminates or reduces the need for large concrete thrust blocks.

• Controlled flexibility: Allows installation tolerances and small ground shifts without compromising the seal.

• Faster installation: Mechanical restraints are typically quicker to install than forming and pouring blocks.

• Predictable performance: Restraint capacities are specified and tested, enabling engineered designs for specific axial loads.

Limitations and considerations

• Design verification: The restraint must be sized to resist calculated axial loads (pressure thrust, hydrostatic test loads, thermal forces). Overlooking load combinations can lead to under-designed restraint.

• Inspection and maintenance: Mechanical restraining elements should be accessible where possible; in buried systems they are often not easily visible. Corrosion protection and quality installation are vital.

• Movement limits: While the joint is flexible, it only allows limited deflection—exceeding that can compromise seals or overstress components.

• Compatibility: Restraint systems vary by manufacturer. Mixing incompatible products or components can reduce performance.

Installation best practices

• Follow manufacturer instructions precisely—torque values, bolt patterns, and sealing element orientations matter.

• Clean and inspect spigots and sockets before assembly; damaged surfaces compromise seals.

• Verify restraint engagement during assembly and pressure testing.

• Plan for corrosion protection where metal restraint parts contact soil or water.

• Coordinate with an engineer to calculate axial loads and select an appropriately rated restrained joint.

RFJ vs. Thrust Block: which to choose?

Both approaches resist axial forces, but they answer different project constraints. Thrust blocks are low-cost for projects with adequate space and suitable soil bearing capacity; they are passive and durable when properly installed. Restrained flexible joints excel in tight spaces, trenchless work, or when predictable engineered restraint is preferred. Often, projects use a hybrid approach—mechanical restraint where needed and thrust blocks elsewhere.

Quick FAQ

• Can an RFJ be used with other pipe materials? Mostly designed for ductile iron, but restrained couplings exist for other materials—always confirm compatibility.

• Do RFJs allow angular deflection? Yes, a limited amount—manufacturer specs list maximum degrees per joint.

• Are they re-usable? Some restrained components can be reused if undamaged and properly cleaned; follow manufacturer guidance.

Restrained flexible joints bring reliability and design flexibility to ductile iron piping systems, balancing the need for movement with the imperative to resist axial separation. When selected and installed with an engineer’s input and careful attention to manufacturer guidance, RFJs are a practical, space-efficient solution for modern pipeline challenges.
