Performance of Rubber Expansion Joints Under High-Temperature Conditions

Feb. 25, 2026

Rubber expansion joints are prized for vibration damping, misalignment compensation, and thermal movement absorption. But when the mercury rises, their behaviour changes — sometimes subtly, sometimes catastrophically. This article explains what happens to rubber expansion joints in high-temperature service, how to choose the right elastomer and construction, and practical steps to get reliable, long-lived performance.


Why temperature matters


Rubber is a polymer — its mechanical properties depend strongly on temperature. As temperature increases you typically see: reduced stiffness (at first), accelerated oxidative and thermal ageing, increases in permanent deformation (creep), and eventual hardening, cracking, or loss of sealing capability. Thermal exposure also affects chemical resistance and compatibility with conveyance media. These changes are a main cause of premature joint failure in hot systems. Research on thermal ageing and its effect on tensile and creep behaviour confirms these trends and shows material-specific responses over time.


Typical temperature ranges — what common elastomers tolerate


Different rubber compounds have different useful temperature windows. Manufacturers commonly publish working ranges and “high-temperature” variants:


  • EPDM (ethylene-propylene-diene rubber): widely used for hot water and many chemicals; standard EPDM products are typically suitable to ~100–120°C, while specially formulated “EPDM-HT” compounds are often rated up to ~140°C in service.

  • NBR / Nitrile: great for oils and fuels but has lower heat limits (commonly up to ~90–120°C depending on formulation). Some specially compounded NBRs can go higher.

  • FKM / Viton (fluoroelastomer): far better high-temperature chemical resistance — many constructions tolerate 150–200°C, making FKM a go-to for aggressive hot services.

  • Silicone: excellent high-temperature flexibility (often up to 200–250°C) but weaker mechanical strength and poor resistance to many oils/solvents; choose only when media compatibility is confirmed.

Manufacturers also offer metal-reinforced or fabric-inserted constructions and PTFE linings for extreme temperatures or aggressive chemicals. Always check the product datasheet rather than relying on general rules.

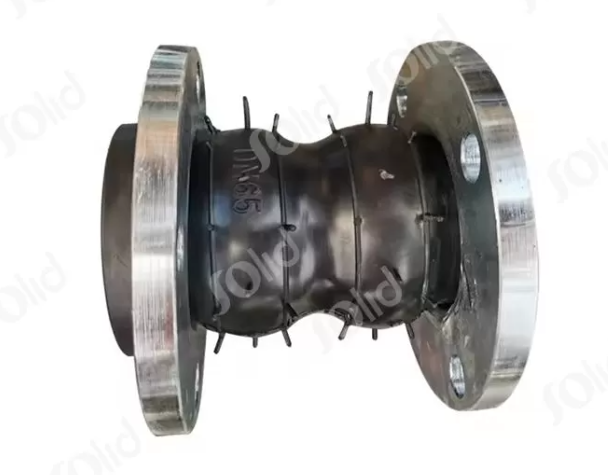

Rubber expansion joints


What actually happens at high temperature (mechanical + chemical)


High temperature accelerates several degradation mechanisms:


  • Thermal ageing / oxidation: rubber chains break or cross-link in different ways; modulus and brittleness change — often the part becomes harder and more brittle, which reduces fatigue life. Studies show tensile and creep behaviour evolve with thermal exposure time, correlating with failure mechanisms.

  • Creep (permanent set): sustained temperature and pressure cause permanent deformation, reducing the joint’s ability to absorb movement and eventually compromising flange gaps and sealing faces. Evidence shows high temperature combined with humidity or aggressive media increases creep and shortens life.

  • Loss of compression set: seals may not spring back, so gaskets and sealing lips can lose contact pressure and leak.

  • Chemical attack at elevated temperature: many fluids become more aggressive at higher temperature, accelerating swelling, softening, or chemical breakdown of elastomer compounds.


Design and selection rules for hot service


  1. Select the right elastomer for both temperature and media. If the fluid is hot and chemically aggressive, prefer FKM/Viton or PTFE-lined solutions. EPDM works well for hot water and steam services up to its rating.

  2. Use high-temperature rated constructions. Manufacturers offer “HT” compounds, insulating fabric layers, and metal protection rings to protect the rubber from radiant heat or hot ambient conditions.

  3. Check pressure × temperature derating. A joint rated for a pressure at 20°C may have a lower allowable pressure at 120°C — consult the manufacturer’s pressure/temperature curves.

  4. Design for movement and restraint. High temperature often means larger thermal movements — verify that the joint’s movement capacity (axial, lateral, angular) fits the expected expansion, and that anchors/guides are located to prevent overloading.


Installation and operational precautions


Correct installation is essential to prevent overheating during adjacent hot-work (welding), avoid stress concentrations, and minimise premature ageing:

  • Delay fitting until hot-work is complete and the pipeline has cooled. Welding sparks and local radiant heat damage rubber quickly.

  • Avoid tight bends or rotation beyond the joint’s limits. High temperatures magnify the effect of over-deflection.

  • Provide insulation or heat shields if ambient temperatures are high. Radiant heat from nearby equipment can exceed the joint’s rated temperature even if the fluid temperature is acceptable.


Testing, inspection & maintenance in hot service


  • Hydrostatic testing at anticipated operating temperature is ideal (or plan for derating), but at minimum verify joints under working temperature and pressure during commissioning.

  • Periodic inspection for hardening, cracking, swelling or permanent set. Keep a log of operating hours and ambient/fluid temperatures; age-related degradation often accelerates after a predictable service interval.

  • Plan spares and replacement intervals for critical hot services — rubber joints are replaceable wear items in many systems.


Example scenario (realistic)


A plant used EPDM-lined rubber expansion joints on a hot brine circulation loop at 130°C. After 18 months the joints showed increased stiffness, cracks at the flange edge, and reduced axial movement capacity due to thermal hardening and creep. A root-cause review found EPDM compound selection marginal for continuous 130°C operation and radiant heat from adjacent piping accelerated ageing. The fix: replace with FKM-lined joints rated for 160°C, add heat shields, and introduce a 12-month inspection cadence. (This type of outcome and corrective approach is consistent with published manufacturer guidance and ageing studies.)


Quick selection checklist for high-temperature rubber joints


  • Confirm fluid composition and maximum fluid temperature.

  • Match elastomer to fluid and temperature (EPDM, FKM, silicone, PTFE liner).

  • Check pressure/temperature derating and movement capability.

  • Protect from welding/ambient heat during installation.

  • Plan inspection intervals, spares, and a documented maintenance log.


Final thoughts


Rubber expansion joints can and do operate successfully in high-temperature systems — but only when the elastomer, construction, and installation are matched to the service. The two failure drivers to watch are thermal ageing (which changes mechanical properties) and creep/permanent set (which reduces movement capacity). When in doubt, choose the higher-temperature material, protect the joint from radiant sources, and maintain a proactive inspection schedule.
