Ductile Iron Pipe Joints and Their Uses

Ductile iron pipes are renowned for their strength, durability, and versatility in various piping applications. A critical component of these systems is the joint, which ensures a secure and leak-proof connection between pipe segments. Understanding the different types of ductile iron pipe joints and their specific applications is essential for engineers and professionals in the field.

Types of Ductile Iron Pipe Joints

1. Push-On Joints

Push-on joints are among the most commonly used connections in ductile iron piping systems. They consist of a rubber gasket seated in a groove inside the socket at the bell end of the pipe. The beveled end of the adjacent pipe is lubricated and pushed past the gasket, compressing it to form a watertight seal. This design allows for easy assembly and is particularly effective in preventing infiltration, exfiltration, and root intrusion.

Advantages:

- Simple and quick installation process.

- Effective in preventing leakage and root intrusion.

- Suitable for various installation conditions, including wet trenches.

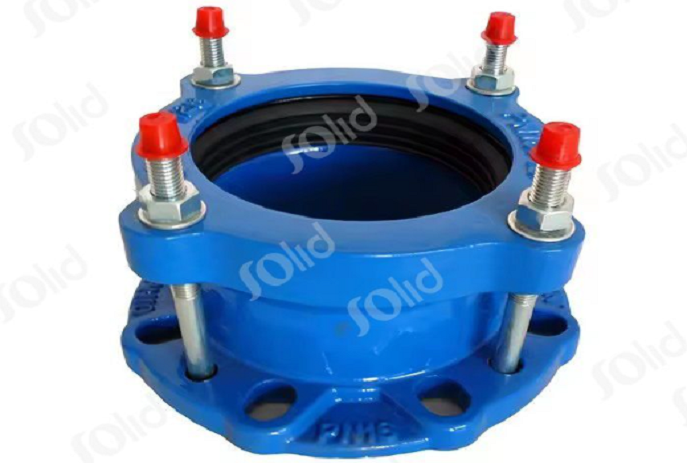

2. Mechanical Joints

Mechanical joints utilize a flange cast with a bell, a rubber gasket, a gland (or follower ring), and tee head bolts and nuts for tightening. This assembly method is labor-intensive but straightforward, requiring only a ratchet wrench for installation. Mechanical joints are flexible, with deflection dependent on pipe diameter, and are primarily used with fittings rather than pipes.

Advantages:

- Provides flexibility in pipeline design.

- Suitable for applications requiring deflection.

- Allows for easy disassembly and maintenance.

3. Flanged Joints

Flanged joints consist of flat rings around the ends of pipes, which mate with equivalent flanges from another pipe. The two flanges are held together by bolts, with a deformable gasket placed between them to provide the seal. Flanged joints are designed to various specifications, differing due to dimensional variations in pipe sizes and pressure requirements.

Advantages:

- Suitable for above-ground installations.

- Allows for easy disassembly and maintenance.

- Provides a rigid connection capable of bearing tension, compression, and limited shear.

4. Restrained Joints

Restrained joints are designed to resist thrust forces without the need for thrust blocking. They function similarly to thrust blocks, with the reaction of the entire restrained unit of piping with soil balancing the thrust force. These joints offer flexibility and are simple and quick to install. citeturn0search1

Advantages:

- Eliminates the need for thrust blocking.

- Provides flexibility in pipeline design.

- Suitable for applications with high thrust forces.

5. Ball and Socket Joints

Ball and socket joints are used for subaqueous crossings and other specialized applications. They consist of a ball-shaped end on one pipe that fits into a socket on the adjacent pipe, allowing for angular deflection. This design is particularly useful in areas where movement or settlement is expected.

Advantages:

- Allows for angular deflection, accommodating movement or settlement.

- Suitable for subaqueous crossings and other specialized applications.

- Provides a flexible connection that can absorb stresses.

Applications of Ductile Iron Pipe Joints

- Water Distribution Systems: Ductile iron pipes and their joints are extensively used in municipal water supply systems due to their strength and durability. The variety of joint types allows for flexibility in design and installation, accommodating various environmental conditions.

- Sewerage Systems: The watertight nature of ductile iron pipe joints makes them ideal for sewerage applications, preventing leakage and infiltration. The push-on joint, in particular, is effective in preventing root intrusion, a common problem in sewer systems made from other materials.

- Industrial Applications: Ductile iron pipes are used in various industrial applications where high strength and resistance to corrosion are required. The choice of joint type depends on the specific requirements of the application, including pressure, temperature, and environmental conditions.

Conclusion

Ductile iron pipe joints are integral to the performance and longevity of piping systems. The selection of the appropriate joint type—whether push-on, mechanical, flanged, restrained, or ball and socket—depends on the specific requirements of the application, including environmental conditions, pressure, and flexibility needs. Understanding the characteristics and advantages of each joint type enables engineers and professionals to design and implement effective and reliable piping systems.
