What Is the Difference Between a Tapping Saddle and a Sleeve Tap?

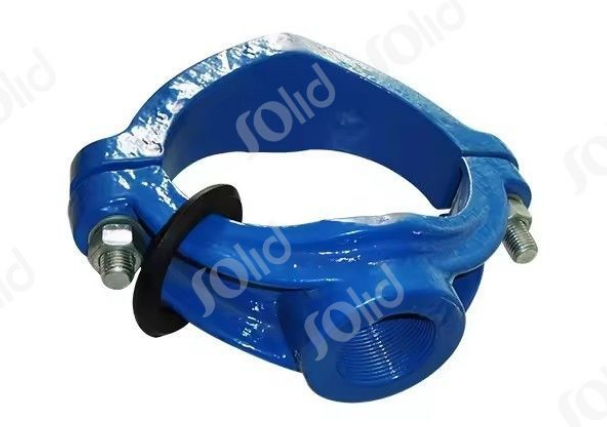

What Is a Tapping Saddle?

A tapping saddle is a clamp-on device designed to create a branch connection to an existing pipe without needing a full system shutdown. Here are its key features:

- Partial Encirclement: A tapping saddle typically only covers a portion of the pipe’s circumference. This design makes the saddle easier and faster to install.

- Components: It consists of a saddle body with pre-formed openings, an outlet connection (which can be flanged, threaded, or otherwise compatible with a branch line), and an O‑ring or gasket. Bolts secure the device onto the pipe.

- Installation: Installation is generally simple and fast, as it involves clamping the saddle to the pipe, sealing it with an O‑ring gasket, and drilling a hole through the pipe for the branch connection.

- Applications: Tapping saddles are most suitable for low-pressure applications and smaller-diameter pipes. They are widely used in municipal water mains, wastewater systems, and irrigation applications where minimal disruption is crucial.

What Is a Sleeve Tap (Tapping Sleeve)?

A sleeve tap, also known as a tapping sleeve, is a fitting designed to create a secure connection to a pressurized pipeline, often with enhanced structural support. Its primary characteristics include:

- Full Circumferential Fit: Unlike a tapping saddle, a sleeve tap usually wraps around the entire diameter of the pipe. This full encirclement provides a robust and stable connection that is ideal for high-pressure systems.

- Components: A sleeve tap is generally comprised of a metal sleeve (which may be made of stainless steel, ductile iron, or other alloys), a flange or outlet connection for the branch, and high-quality gaskets. Some installations may require welding in addition to bolting to ensure the sleeve is firmly secured.

- Installation: The installation process for a sleeve tap is more labor-intensive. In high-pressure applications, welding may be used to guarantee a strong bond, or specialized bolting procedures are followed to secure the sleeve.

- Applications: Sleeve taps are most appropriate for high-pressure systems and larger diameter pipelines. Their added rigidity and continuous clamping action make them popular in water and gas distribution systems where robust connections are essential.

Technical Comparison

Below is a detailed comparison of the primary attributes of tapping saddles versus sleeve taps:

In-Depth Analysis from Multiple Angles

1. Installation Considerations

Ease and Speed:

- Tapping Saddles:

  - Their design allows for a rapid “clamp-on” installation without the need for specialized equipment. This is particularly advantageous in emergency repairs or when system downtime must be minimized.

  - Because the saddle only covers a portion of the pipe, installers can quickly drill a hole for the branch connection after securing the device.

- Sleeve Taps:

  - These fittings require more time to install. The process might include welding (especially with stainless steel sleeves) or precise bolting to ensure the entire circumference of the pipe is secured.

  - In high-pressure lines, the added reinforcement provided by a sleeve tap can outweigh the extra installation time.

Tooling and Skill:

- For tapping saddles, standard tools (wrenches, drills) are typically sufficient, which is ideal for field repairs.

- Sleeve taps may require welding equipment or specialized torque wrenches. This makes them better suited for projects with planned downtime or where highly trained technicians are available.

2. Durability and Performance

Sealing Integrity:

- Tapping Saddles:

  - The sealing largely depends on the quality of the O‑ring or gasket and proper clamping. In lower-pressure environments, this is usually sufficient.

  - However, if the pressure increases or if the pipe undergoes thermal expansion or slight movements, the partial encirclement may be more prone to leakage.

- Sleeve Taps:

  - With a design that completely encircles the pipe, sleeve taps provide a more consistent pressure distribution along the entire contact area.

  - This feature enhances their durability under high-pressure conditions and reduces the risk of leaks caused by pipe deflection.

Resistance to External Factors:

- Sleeve taps, often made from stainless steel or alloy materials, offer better corrosion resistance and structural integrity. They are less likely to deform under mechanical stress or environmental factors such as temperature fluctuations.

- Tapping saddles, while generally robust for their intended applications, might be more vulnerable in environments where the pipe is exposed to significant external mechanical forces (e.g., heavy excavation equipment or ground movement).

3. Cost and Economic Considerations

Material and Labor Costs:

- Because tapping saddles with SS belt require simpler materials and less installation time, they tend to be more economical for projects where high pressure or heavy pipe loads are not concerns.

- Sleeve taps, with their more robust design and potential need for welding, are generally higher in cost. However, in applications where safety and system integrity are paramount—such as in water or gas distribution networks—the additional expense is justified by the enhanced performance and reliability.

Maintenance:

- The simpler design of tapping saddles can be an advantage if frequent maintenance is required. They can often be replaced quickly if a leak develops.

- Sleeve taps, being more complex and robust, typically offer longer service life and lower overall maintenance frequency, which can be cost-effective over the long term in critical systems.

4. Application-Specific Performance

Low-Pressure Applications:

- Tapping saddles are ideal when working with small water mains, irrigation networks, or secondary branch lines where pressure requirements are modest. Their ease of installation makes them particularly useful in retrofit projects or emergency repairs.

High-Pressure and Industrial Installations:

- Sleeve taps are designed for challenging environments where pipelines carry high pressure or where the structural integrity of the system is paramount. They are commonly used in municipal water or gas distribution systems, industrial pipelines, and situations where a reliable and durable connection is non-negotiable.

Comparative Table Summary

Here is a quick-reference table summarizing the differences:

Conclusion

Both tapping saddles and sleeve taps serve the essential function of safely branching off an existing pipeline while minimizing service interruption. The choice between the two depends on several factors:

- Pressure Requirements: Use tapping saddles for lower pressure and smaller pipes, and sleeve taps for high-pressure, large-diameter applications.

- Installation Environment: Tapping saddles offer rapid installation ideal for emergency repairs, whereas sleeve taps require precise installation and are better suited for planned projects where maximum durability is critical.

- Cost and Maintenance: Tapping saddles are cost-effective and easier to maintain; sleeve taps, although more expensive, provide long-term stability and reliability in demanding systems.

By carefully considering these factors, engineers and contractors can select the appropriate fitting to ensure the safety, efficiency, and longevity of their piping systems.

Whether you’re retrofitting a municipal water main, expanding a gas distribution network, or performing an emergency repair, understanding these differences is key to achieving a secure and durable branch connection.
