What is the Use of a Universal Pipe Coupling?

1. What Are Universal Pipe Couplings?

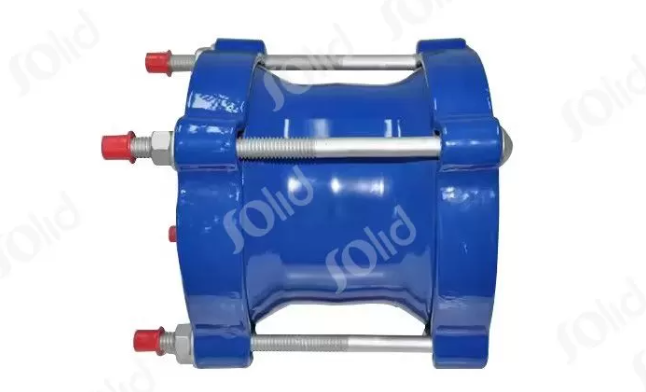

A universal pipe coupling is a versatile mechanical joint used to connect pipes of different materials and diameters. Unlike traditional couplings, which are typically designed for use with specific pipe types, universal pipe couplings provide greater flexibility when joining various piping materials, making them suitable for a wide range of pipeline systems.

These couplings are designed to create a reliable, leak-proof seal while allowing a certain degree of movement and misalignment between connected pipes. In general, a universal pipe coupling is composed of a sleeve, a rubber gasket, gland flanges, and fastening components such as bolts and nuts.

2. Key Applications of Universal Pipe Couplings

2.1 Connecting Dissimilar Pipes

One of the primary applications of a universal pipe coupling is connecting pipes made from different materials. For example, these couplings can be used to join ductile iron pipes with steel pipes or PVC pipes. This capability is especially valuable in situations where existing pipeline systems consist of multiple pipe materials, or during system upgrades and expansions when new materials are introduced. As a result, universal pipe couplings offer strong adaptability across a wide range of plumbing and industrial applications.

2.2 Facilitating Pipe Repairs

Universal pipe couplings are also widely used for repairing damaged sections of pipelines. Because they can connect different pipe materials and sizes, they allow damaged sections to be replaced without the need to rebuild or standardize the entire pipeline system. Their straightforward installation design enables repairs to be carried out quickly and efficiently, making universal pipe couplings an essential solution for maintenance teams responding to leaks or pipe failures under tight time constraints.

2.3 Simplifying Installation of Valves and Fittings

Universal pipe couplings simplify the installation of valves, flanged pipes, and other fittings. Their flexible design makes alignment and connection easier, helping to reduce installation time and effort. For this reason, universal pipe couplings are commonly used with pumps and other equipment in water supply and drainage systems, where convenient access and efficient integration into the overall piping network are required.

2.4 Accommodating Pipeline Movement

Universal pipe couplings are designed to allow a certain degree of angular deflection and pipeline movement. This capability is critical in preventing damage caused by thermal expansion, ground movement, or other external factors that place stress on rigid piping systems. By accommodating these movements, universal pipe couplings help reduce the risk of leaks and pipe damage, contributing to the overall reliability and service life of the pipeline system.

3. Benefits of a Universal Pipe Coupler

3.1 Reduced Inventory Costs

Because a universal pipe coupling can accommodate a wide range of pipe materials and sizes, it reduces the need to stock multiple types of couplings. This versatility helps distributors and contractors lower inventory costs while simplifying logistics and storage management. By minimizing the variety of fittings required, companies can streamline operations and make more efficient use of warehouse space.

3.2 Ease of Installation and Repair

Universal pipe couplings are designed for easy installation using standard tools such as spanners, without requiring specialized training or labor. Their simple structure also allows them to be easily assembled and dismantled for maintenance purposes, making them well suited for quick repairs. This ease of installation and maintenance helps save time for both plumbers and construction teams.

3.3 Adaptability and Flexibility

Universal pipe couplings are engineered to adapt to a wide range of applications. Their flexible design makes them suitable for various systems, including potable water, recycled water, sewage, and certain industrial pipelines. This versatility allows universal pipe couplings to meet diverse piping requirements across different operating environments.

3.4 Durability and Corrosion Resistance

Universal pipe couplings are typically manufactured from ductile iron or steel and protected with high-quality epoxy coatings. This construction enables them to operate under harsh conditions while maintaining strength and corrosion resistance. As a result, universal pipe couplings offer long-term reliability and help reduce the need for frequent replacement.

4. Types of Pipes Compatible with Universal Pipe Couplings

4.1 Ductile Iron Pipes

Universal pipe couplings are widely used to connect ductile iron pipes, providing strong and reliable joints. Given the high strength of ductile iron pipes, these couplings effectively complement the pipe material by ensuring secure and stable connections.

4.2 Steel Pipes

Universal pipe couplings are also suitable for joining steel pipes, offering flexible connection solutions for industrial and commercial piping systems. Steel pipes typically require robust joints, and universal pipe couplings provide secure connections capable of withstanding demanding operating conditions.

4.3 PVC Pipes

Universal pipe couplings are commonly used with PVC pipes in water supply and drainage systems. While PVC pipes are lightweight and easy to handle, these couplings enhance installation efficiency by providing fast and dependable jointing solutions.

4.4 Other Pipe Materials

In addition to the materials listed above, universal pipe couplings can also be used to connect GRP (Glass Reinforced Plastic) pipes and AC (Asbestos Cement) pipes. This broad compatibility makes universal pipe couplings highly versatile for construction and repair projects where multiple pipe materials are involved.

5. Key Features of a High-Quality Universal Pipe Coupling

5.1 Material Composition and Standards

Universal pipe couplings should be manufactured from high-quality ductile iron or steel and protected with a suitable surface coating, typically fusion-bonded epoxy. The materials used should comply with relevant industrial standards. Commonly used materials include GGG50 ductile iron in accordance with EN 1563 and structural steel conforming to EN 10025. These materials ensure adequate strength and effective resistance to corrosion.

5.2 Gasket Hardness

Gasket hardness is a critical factor affecting sealing performance. A standard gasket used for general applications typically has a hardness of approximately 65 BHN. This hardness level allows the gasket to deform under pressure to create a tight seal while maintaining its structural integrity. For applications involving larger gaps or higher operating pressures, gaskets with higher hardness may be required to prevent extrusion or displacement from the sealing position.

5.3 Working Pressure and Temperature Ranges

High-quality universal pipe couplings should be designed to withstand the intended working pressures and temperature conditions. Typical pressure ratings are PN10 or PN16, while the operating temperature range commonly extends from −10 °C to +70 °C. These limits help ensure reliable performance under normal service conditions.

5.4 Certifications

Universal pipe couplings intended for potable water applications should carry appropriate certifications, such as WRAS approval. Such certifications confirm that the materials used are suitable for contact with drinking water and that the product meets established safety and quality requirements.

6. Selection of the Proper Universal Pipe Coupling

When selecting an appropriate universal pipe coupling, several key factors should be considered:

• ·  Pipe Material and Diameter:
  Ensure that the coupling is compatible with the pipe materials and diameters to be connected.

• ·  Operating Conditions:
  Select a coupling with pressure and temperature ratings that match the operating requirements of the pipeline system.

• ·  Installation Requirements:
  Consider installation convenience, including ease of assembly and whether any special tools or equipment are required.

• ·  Certifications:
  Verify that the coupling carries the necessary certifications for the intended application, particularly for potable water systems.

• ·  Quality and Brand:
  Choose reputable manufacturers and suppliers that follow high manufacturing standards to ensure long-term durability and reliable performance.

7. Solid Joints and Universal Pipe Couplings

Solid Joints is an established manufacturer specializing in pipeline connection and repair products, including universal pipe couplings. The company offers a comprehensive range of solutions designed to meet the requirements of various pipeline systems.

Solid Joints focuses on meeting diverse customer needs and aims to develop into a reliable provider of pipeline connection solutions worldwide. Its products are designed for ease of installation and efficient repair, and are widely used in applications such as water supply, drainage, heating, gas, oil, and chemical systems.

To ensure product quality and compliance with international requirements, Solid Joints cooperates with recognized third-party testing organizations, including SGS and BV. In addition, the company’s technical support and after-sales service teams regularly visit the production facilities to maintain product consistency and provide reliable support to customers.
