What Is a Flange Adaptor and How Does It Work in Water Pipeline Systems?

In water pipeline systems, every pipe connection must be strong, sealed, and easy to maintain. Whether the project involves municipal water supply, wastewater treatment, irrigation, fire protection, or an industrial water line, the pipeline often needs to connect plain-end pipes to flanged valves, pumps, meters, or fittings. This is where a flange adaptor becomes an important pipeline component.

A flange adaptor, also called a flange adapter or flange coupling adaptor, is designed to create a reliable connection between a plain-ended pipe and a flanged component. It helps contractors and engineers install pipeline equipment faster without welding, threading, or complicated on-site fabrication.

For water pipeline projects, the flange adaptor is valued because it saves installation time, improves maintenance convenience, and helps create a secure, leak-resistant pipe joint.

What Is a Flange Adaptor?

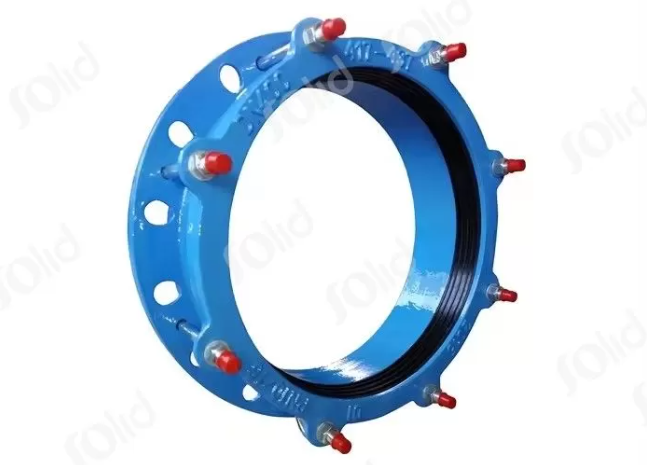

A flange adaptor is a mechanical pipe fitting used to convert a plain-end pipe into a flanged connection. One side of the adaptor grips and seals around the outside diameter of the pipe, while the other side has a flange that can be bolted to a flanged valve, pump, pipe fitting, flow meter, or other pipeline equipment.

In simple terms, a flange adaptor allows a non-flanged pipe to connect with flanged equipment.

It is commonly used with different pipe materials, such as:

• ·   Ductile iron pipe

• ·   Steel pipe

• ·   PVC pipe

• ·   PE pipe

• ·   Cast iron pipe

• ·   Other compatible water pipeline materials

The exact compatibility depends on the adaptor design, pipe outside diameter, pressure rating, gasket material, and whether the adaptor is restrained or non-restrained.

Main Components of a Flange Adaptor

Although designs vary by manufacturer, most flange adaptors include several key parts:

1. Adaptor Body

The adaptor body is the main structure of the fitting. It is usually made from ductile iron, carbon steel, or other strong materials suitable for water and wastewater pipeline systems. The body provides mechanical strength and supports the sealing system.

2. Flange End

The flange end is the bolted side of the adaptor. It connects to a flanged valve, pump, pipe fitting, or other equipment. The flange drilling standard should match the project requirement, such as PN10, PN16, ANSI, AWWA, or other applicable standards.

3. Sealing Gasket

The gasket creates the watertight seal around the pipe. In water pipeline systems, EPDM rubber is commonly used because it has good resistance to water and many environmental conditions. The gasket is compressed during installation to prevent leakage.

4. End Ring or Gland

The end ring helps compress the gasket when the bolts are tightened. This compression creates a secure seal between the adaptor and the pipe surface.

5. Bolts and Nuts

Bolts and nuts are used to tighten the adaptor and compress the gasket evenly. Correct bolt tightening is important because uneven tightening may cause poor sealing, pipe misalignment, or leakage.

6. Grip Ring or Restraint System

Some flange adaptors include a grip ring, anchoring ring, or mechanical restraint system. A restrained flange adaptor helps resist pipe movement caused by internal pressure, water hammer, or ground movement. This type is often used in applications where axial restraint is required.

How Does a Flange Adaptor Work?

A flange adaptor works through a combination of mechanical gripping, gasket compression, and bolted flange connection.

Here is the basic working process:

Step 1: The Plain-End Pipe Is Inserted

The pipe end is inserted into the adaptor body to the required depth. Before installation, the pipe should be clean, round, and free from sharp edges, mud, oil, or damage that could affect sealing.

Step 2: The Gasket Is Positioned Around the Pipe

The sealing gasket sits between the pipe and the adaptor body. When installed correctly, the gasket surrounds the pipe outside diameter and prepares the joint for compression.

Step 3: Bolts Are Tightened Evenly

As the bolts are tightened, the end ring pushes the gasket into position. This compresses the gasket around the pipe and creates a tight seal. Even tightening is important to avoid uneven pressure on the gasket.

Step 4: The Flange End Is Bolted to Equipment

The flange side of the adaptor is then connected to a flanged valve, pump, fitting, or pipeline component. A flange gasket is placed between the two flanges, and the bolts are tightened according to the project requirements.

Step 5: The Pipeline Is Pressurized

When the water pipeline is pressurized, the adaptor must maintain sealing performance and mechanical stability. A properly selected and installed flange adaptor can help prevent leakage and support long-term pipeline operation.

Why Are Flange Adaptors Used in Water Pipeline Systems?

Water pipeline systems often include different components that do not always have the same connection type. A pipe may have a plain end, while a valve or pump may have a flange connection. A flange adaptor solves this connection problem efficiently.

Flange adaptors are commonly used in:

• ·   Municipal water supply networks

• ·   Wastewater treatment plants

• ·   Pump stations

• ·   Valve chambers

• ·   Fire protection pipelines

• ·   Irrigation systems

• ·   Industrial water pipelines

• ·   Pipeline repair and replacement projects

• ·   Water treatment facilities

In these systems, flange adaptors help contractors connect pipes and equipment quickly while maintaining a reliable seal.

Key Benefits of Using a Flange Adaptor

1. Fast Installation

Compared with welding or complex fabrication, a flange adaptor allows faster installation. The plain-end pipe can be connected directly to flanged equipment with bolts and gaskets.

This is especially useful for municipal water projects, emergency pipeline repair, and installation sites where time is limited.

2. No Welding Required

A flange adaptor provides a mechanical connection, so welding is usually not required. This reduces labor requirements, avoids hot work risks, and makes installation easier in confined or wet environments.

3. Reliable Sealing Performance

The gasket system is designed to create a watertight seal around the pipe. When the correct adaptor size, gasket material, and installation method are used, the connection can help reduce leakage risk.

4. Suitable for Different Pipe Materials

Depending on the product design, flange adaptors can be used with ductile iron, steel, PVC, PE, or other pipeline materials. This makes them useful when connecting new pipes to existing infrastructure.

5. Easier Maintenance

Flanged connections are easier to disassemble than welded joints. When a valve, pump, or meter needs inspection or replacement, a flange adaptor can make maintenance work more convenient.

6. Useful for Pipeline Modification

In water pipeline upgrades, contractors often need to connect old pipelines to new equipment. A flange adaptor helps bridge the gap between plain-end pipes and modern flanged components.

7. Reduced Downtime

Because installation is relatively simple, flange adaptors can reduce project downtime. This is important in water supply networks where service interruption must be minimized.

Flange Adaptor vs Coupling: What Is the Difference?

A flange adaptor and a coupling may look similar, but they are used for different purposes.

If the project needs to connect a pipe to a flanged valve, use a flange adaptor. If the project needs to connect two pipe ends together, use a coupling.

Flange Adaptor vs Dismantling Joint

A dismantling joint is another pipeline fitting used near valves, pumps, and meters. However, it has a different function.

A flange adaptor converts a plain-end pipe into a flanged connection. A dismantling joint is mainly used to provide axial adjustment and easier removal of pipeline equipment. In many water pipeline systems, a dismantling joint may be installed near a valve to make future maintenance easier.

In short:

• ·   Use a flange adaptor when connecting a plain-end pipe to a flanged component.

• ·   Use a dismantling joint when the system needs installation adjustment or easier equipment removal.

Some pipeline systems may use both components depending on the layout and maintenance requirements.

Restrained vs Non-Restrained Flange Adaptors

Flange adaptors can be divided into two common types: restrained and non-restrained.

Non-Restrained Flange Adaptor

A non-restrained flange adaptor mainly provides sealing and connection. It does not provide strong resistance against axial pipe movement. Additional thrust blocks, anchors, or external restraint may be required depending on the pipeline design.

Restrained Flange Adaptor

A restrained flange adaptor includes a gripping or anchoring mechanism to help prevent the pipe from pulling out under pressure. This is useful in pipelines where internal pressure, bends, valves, or ground movement may create axial forces.

For water pipeline projects, choosing between restrained and non-restrained types depends on pressure rating, pipe material, buried or above-ground installation, soil conditions, and engineering design requirements.

How to Choose the Right Flange Adaptor

Selecting the correct flange adaptor is important for pipeline safety and service life. Before purchasing, buyers should confirm the following points:

1. Pipe Outside Diameter

The adaptor must match the actual outside diameter of the pipe. Nominal pipe size alone is not always enough because different pipe materials may have different outside diameters.

2. Pipe Material

Confirm whether the adaptor is suitable for ductile iron, steel, PVC, PE, or other pipe materials. Some adaptors are dedicated to specific pipe types, while others are wide-range designs.

3. Pressure Rating

Choose a flange adaptor with a pressure rating suitable for the pipeline system. Water supply, wastewater, and fire protection systems may have different pressure requirements.

4. Flange Standard

The flange drilling must match the connected valve, pump, or fitting. Common standards may include PN10, PN16, ANSI, AWWA, or other project-specified flange standards.

5. Gasket Material

For potable water systems, gasket material should be suitable for clean water service. For wastewater or industrial water, the gasket should be selected according to the medium and working environment.

6. Coating and Corrosion Protection

Water pipeline fittings are often exposed to moisture, soil, and corrosive environments. Epoxy coating or other anti-corrosion protection can help extend service life.

7. Restrained or Non-Restrained Design

If the pipeline needs axial restraint, choose a restrained flange adaptor. If the pipeline design already includes proper external restraint, a non-restrained adaptor may be suitable.

8. Installation Space

Check the available installation space, especially in valve chambers, pump rooms, or underground pipeline systems. The adaptor must fit the layout and allow enough space for bolt tightening and future maintenance.

Installation Tips for Flange Adaptors

Correct installation is essential for sealing performance. Here are some practical installation tips:

1. Check the pipe outside diameter before installation.

2. Clean the pipe surface and remove dirt, oil, rust, or sharp edges.

3. Make sure the pipe end is cut square and inserted to the correct depth.

4. Confirm that the gasket is clean and properly positioned.

5. Tighten bolts gradually and evenly in a cross pattern.

6. Do not overtighten one side before the other side is secured.

7. Check flange alignment before final tightening.

8. Perform pressure testing according to project requirements.

9. Inspect the joint after testing to confirm there is no leakage.

A flange adaptor is a simple component, but improper installation can lead to leakage, gasket damage, or joint failure. Following the manufacturer’s installation instructions is always recommended.

Common Problems Caused by Incorrect Selection or Installation

If the wrong flange adaptor is selected or installed incorrectly, several problems may occur:

• ·   Water leakage at the gasket area

• ·   Pipe pull-out under pressure

• ·   Bolt loosening

• ·   Flange misalignment

• ·   Gasket extrusion or damage

• ·   Coating damage and corrosion

• ·   Difficulty during future maintenance

• ·   Reduced pipeline service life

Most of these problems can be avoided by confirming pipe dimensions, pressure rating, flange standard, gasket material, and installation method before the project begins.

Where Are Flange Adaptors Commonly Installed?

Flange adaptors are often installed in locations where pipe systems connect to equipment or require future maintenance access. Common installation points include:

• ·   Before and after valves

• ·   Near pumps and pump stations

• ·   At flow meters or control devices

• ·   In water treatment plants

• ·   In wastewater treatment systems

• ·   At pipe repair sections

• ·   In buried municipal water networks

• ·   In industrial water supply systems

Because of their flexibility and convenience, flange adaptors are widely used in both new pipeline construction and existing pipeline renovation.

Why Flange Adaptors Matter for Water Pipeline Reliability

A water pipeline system is only as reliable as its joints. Even if the pipe material is strong, a poor connection can cause leakage, pressure loss, maintenance problems, and service interruption.

A properly selected flange adaptor helps improve pipeline reliability by creating a secure transition between plain-end pipe and flanged equipment. It also allows easier access to valves, pumps, and fittings when future maintenance is required.

For contractors, it simplifies installation. For engineers, it supports flexible system design. For water utilities, it helps reduce downtime and maintenance risk.

Conclusion

A flange adaptor is an essential pipe fitting used in water pipeline systems to connect a plain-end pipe to flanged equipment such as valves, pumps, meters, and fittings. It works by gripping the pipe, compressing a sealing gasket, and creating a bolted flange connection.

In municipal water supply, wastewater treatment, fire protection, irrigation, and industrial water systems, flange adaptors provide fast installation, reliable sealing, easier maintenance, and flexible pipeline connection.

When choosing a flange adaptor, buyers should carefully confirm pipe outside diameter, pipe material, pressure rating, flange standard, gasket material, coating, and whether restraint is required. With the right product and proper installation, a flange adaptor can help ensure a strong, leak-resistant, and long-lasting water pipeline connection.

FAQ About Flange Adaptors

1. What is the main function of a flange adaptor?

The main function of a flange adaptor is to connect a plain-end pipe to flanged equipment, such as a valve, pump, meter, or pipe fitting.

2. Is a flange adaptor the same as a coupling?

No. A flange adaptor connects a plain-end pipe to a flanged component, while a coupling usually connects two plain-end pipes together.

3. Can a flange adaptor be used in water pipelines?

Yes. Flange adaptors are widely used in municipal water supply, wastewater treatment, irrigation, fire protection, and industrial water pipeline systems.

4. What pipe materials can a flange adaptor connect?

Depending on the adaptor design, it may be suitable for ductile iron, steel, PVC, PE, cast iron, or other compatible pipe materials.

5. Does a flange adaptor need welding?

In most cases, no welding is required. A flange adaptor uses mechanical sealing and bolted connection, making installation faster and easier.

6. What is a restrained flange adaptor?

A restrained flange adaptor includes a gripping or anchoring system to help prevent pipe movement or pull-out under pressure.

7. How do I choose the right flange adaptor?

You should confirm pipe outside diameter, pipe material, pressure rating, flange standard, gasket material, coating, and project installation requirements.

8. Why is the gasket important in a flange adaptor?

The gasket creates the seal between the adaptor and the pipe. A properly compressed gasket helps prevent water leakage and supports stable pipeline operation.
