Universal Flange Adaptor vs Traditional Flange — Which Should Your Project Use?

Introduction

Choosing the correct flange connection affects installation speed, field flexibility and the total lifecycle cost of a pipeline. Universal flange adaptors (UFAs) have become popular in water, wastewater and many industrial systems because they simplify connections between plain-ended pipes and flanged equipment. But they are not a one-size-fits-all replacement for traditional machined or welded flanges. This article compares both options so engineers, contractors and procurement teams can decide which fits their project needs.

What each product is — quick definition

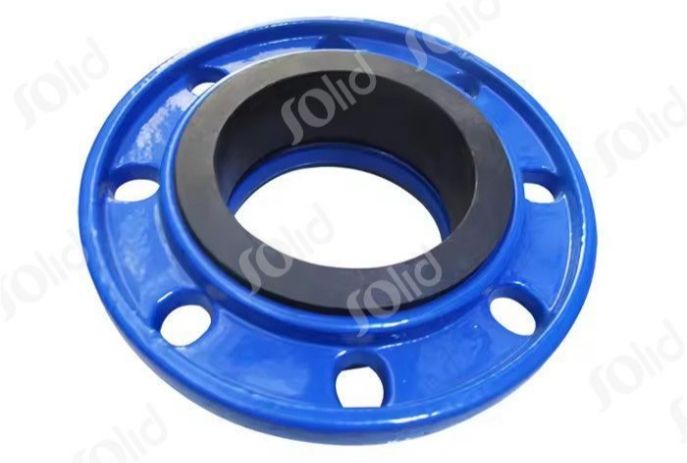

• Traditional flange: a machined or welded ring, bolted to a mating flange with a gasket between faces. Commonly used where strict dimensional standards, high pressure or high temperature are a factor.

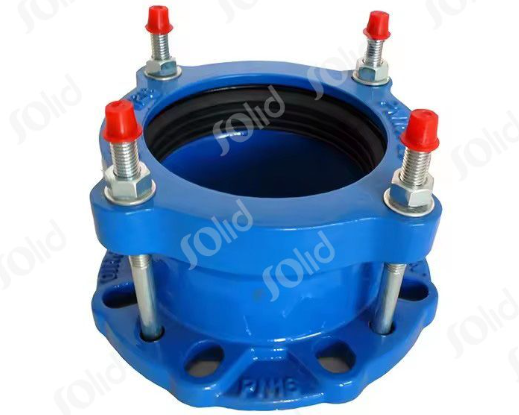

• Universal flange adaptor (UFA): a mechanical fitting that provides a flanged face on one end and a compression/grip connection to a plain pipe on the other — designed for fast, field-friendly connections and to accept a variety of flange face standards.

Head-to-head: the practical differences

Installation speed & site adaptability

UFAs are built for rapid field installation — they eliminate the need to machine, weld, or fabricate stub ends on-site and can be fitted with minimal pipe preparation. This makes them excellent for retrofit work, emergency repairs and tight schedules. For many utility contractors, the time saved in the field is the single biggest benefit.

Misalignment and angular tolerance

A defining advantage of many UFAs is tolerance for pipe misalignment and limited angular deflection (typical adaptors allow a few degrees of angular movement), which reduces the need for precise alignment or expensive realignment works during installation. This helps when dealing with as-laid pipes that are slightly out of round or settled.

Sealing performance and leakage risk

When properly selected (correct gasket type, face condition and bolt torque), UFAs provide reliable seals for the majority of water and low-to-medium pressure services. However, for extremely high-pressure, high-temperature, or code-critical services, a welded/stubbed and machined flange is often preferred for proven long-term integrity under extreme loads. Always follow applicable standards and project specifications.

Flexibility, vibration and movement

UFAs frequently incorporate elastomeric gaskets or flexible elements that absorb vibration and accommodate thermal expansion better than rigid welded flanged joints — a practical advantage in pumping stations and systems subject to ground movement or vibration.

Inventory & logistic advantages

Because many UFAs are multi-tolerance (one adaptor can fit several wall thicknesses or pipe OD tolerances), they reduce the number of SKUs contractors must stock compared to carrying different matched flanges and stub ends — lowering storage costs and simplifying logistics.

Maintenance & downtime

UFAs commonly use captive bolts, reversible assemblies or quick-release features that speed disassembly for inspection or equipment replacement. Shorter maintenance windows translate directly into cost savings for plants where outages are expensive.

When to choose a universal flange adaptor

• Retrofit or emergency repair work where speed matters.

• Projects with mixed pipe materials or unknown flange standards on site.

• Installations where some axial/angle tolerance will reduce costly realignment.

• Municipal water and wastewater applications at low-to-medium pressures.

When to prefer traditional flanges

• High-pressure, high-temperature, highly corrosive or safety-critical systems where welded integrity and a machined face are specified by code.

• Projects requiring strict adherence to certain flange-to-flange dimensional standards or where long-term fatigue under extreme loads is a primary concern.

Selection checklist

1. Service conditions: max operating pressure, temperature and fluid chemistry.

2. Standards & codes: does design spec require welded/stubbed flanges or a particular flange class?

3. Misalignment allowance: check adaptor angular and axial tolerance ratings.

4. Gasket compatibility: select gasket elastomer for fluid and temperature.

5. Bolt/torque procedures & face preparation: ensure mating flange face and adaptor gasket area are free of gouges and debris.

Example use cases

• Replacing a valve in a live distribution main — UFA for fast changeout and reduced shutdown.

• New chemical process line at 200°C — traditional welded flanges for temperature capability and strict metallurgy controls.

Conclusion & next steps

Universal flange adaptors are a practical, time-saving alternative to traditional flanges for many water, wastewater and general industrial services — especially where retrofit speed, tolerance to misalignment, and lower inventory burden matter. For extreme conditions or code-critical systems, traditional welded/machined flanges remain the safer default. Use the checklist above to make a data-driven choice.
