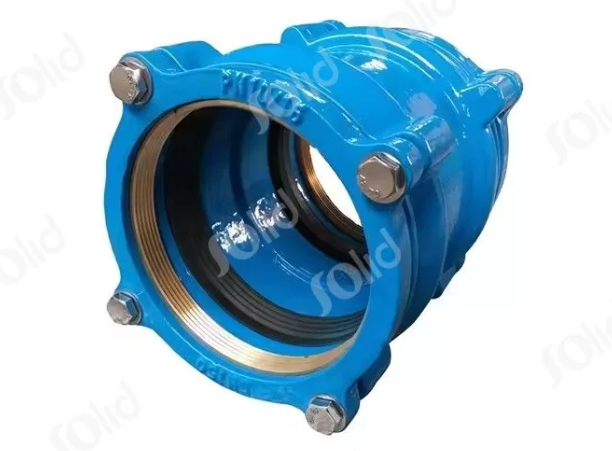

Universal Coupling vs. Restrained Coupling — Which One Should You Choose?

Product Comparison: Universal Coupling vs. Restrained Coupling — Which One Should You Choose?

In pipeline systems, selecting the right connection solution is critical for ensuring long-term performance, safety, and cost efficiency. Among the most commonly used connection products are Universal Couplings and Restrained Couplings. While both are designed to connect pipes efficiently, they serve different purposes and perform differently under various operating conditions.

For engineers, contractors, and distributors working in water supply, oil & gas, and industrial projects, understanding the difference between these two coupling types is essential for making the right decision.

This article provides a detailed comparison to help you choose the most suitable solution for your project.

What Is a Universal Coupling?

A Universal Coupling is a flexible pipe connection designed to join pipes with:

• ·   Different outer diameters

• ·   Slight angular deviations

• ·   Minor misalignments

Key Features

• ·   Wide tolerance range for pipe OD

• ·   Easy and fast installation

• ·   Suitable for different pipe materials (DI, steel, PVC, PE)

• ·   No need for precise pipe alignment

Typical Applications

Universal couplings are widely used in:

• ·   Water supply systems

• ·   Municipal infrastructure projects

• ·   Repair and maintenance works

• ·   Temporary pipeline connections

Advantages

✔ High flexibility
✔ Reduced installation time
✔ Lower labor cost
✔ Ideal for emergency repairs

Limitations

✘ Cannot resist axial movement (pipe pulling force)
✘ Not suitable for high-pressure thrust conditions without additional anchoring

What Is a Restrained Coupling?

A Restrained Coupling is a type of pipe joint designed to prevent axial movement by locking the pipe in place. It provides both sealing and mechanical restraint.

Key Features

• ·   Built-in restraint mechanism (grip rings, wedges, or teeth)

• ·   Prevents pipe pull-out under pressure

• ·   Suitable for high-pressure and critical systems

Typical Applications

Restrained couplings are commonly used in:

• ·   High-pressure pipelines

• ·   Pump stations

• ·   Fire protection systems

• ·   Long-distance transmission pipelines

• ·   Areas without concrete thrust blocks

Advantages

✔ Strong axial restraint
✔ Enhanced system safety
✔ Suitable for high-pressure environments
✔ Reduces need for external anchoring structures

Limitations

✘ Higher cost compared to universal couplings
✘ Installation requires more precision
✘ Less flexibility for misalignment

Key Differences Between Universal Coupling and Restrained Coupling

How to Choose the Right Coupling for Your Project

1. Consider Pipeline Pressure

• ·   Low to medium pressure systems → Universal Coupling is sufficient

• ·   High-pressure systems → Restrained Coupling is recommended

2. Evaluate Ground Conditions

In unstable soil or areas with:

• ·   Ground movement

• ·   Temperature expansion

• ·   Vibration

Restrained couplings provide better safety by preventing pipe displacement.

3. Installation Environment

• ·   For quick repairs or emergency situations → Universal Coupling is ideal

• ·   For permanent infrastructure projects → Restrained Coupling ensures long-term stability

4. Budget vs. Safety Requirements

While universal couplings are more cost-effective, restrained couplings reduce:

• ·   Maintenance costs

• ·   Risk of pipeline failure

• ·   Long-term operational risks

SOLID’s Coupling Solutions for Global Projects

As a professional manufacturer of pipeline connection products, Shanxi Solid Industrial Co., Ltd. (SOLID) offers both Universal Couplings and Restrained Couplings designed to meet international standards and diverse project requirements.

Why Choose SOLID?

• Extensive export experience in Middle East, Africa, Southeast Asia, and South America

• Full product range:

• Universal couplings

• Restrained couplings

• Flange adaptors

• Dismantling joints

• Repair clamps

• Materials:

• Ductile iron (GGG50)

• Stainless steel options available

• Coatings:

• Fusion Bonded Epoxy (FBE)

• Rilsan Nylon coating for harsh environments

SOLID products are engineered to deliver:

• ·   Reliable sealing performance

• ·   High pressure resistance

• ·   Long service life even in extreme conditions

Real-World Application Scenarios

Case 1: Municipal Water Network Upgrade

A contractor working on a city pipeline rehabilitation project selected Universal Couplings due to:

• ·   Mixed pipe materials

• ·   Misalignment issues

• ·   Need for fast installation

Result: Reduced installation time by 30% and minimized downtime.

Case 2: High-Pressure Pump Station in Africa

For a water transmission project, Restrained Couplings were chosen because:

• ·   High internal pressure

• ·   Strong thrust forces

• ·   No thrust blocks allowed

Result: Improved system safety and eliminated pipe displacement risks.

Conclusion

Both Universal Couplings and Restrained Couplings play vital roles in pipeline systems, but they are designed for different operational needs.

• ·   Choose Universal Coupling for flexibility, fast installation, and cost efficiency

• ·   Choose Restrained Coupling for safety, high-pressure performance, and axial restraint

Making the right selection not only improves system performance but also reduces long-term maintenance costs and operational risks.

By partnering with experienced manufacturers like SOLID, you can ensure that your pipeline system is equipped with the most suitable and reliable connection solutions for your specific application.
