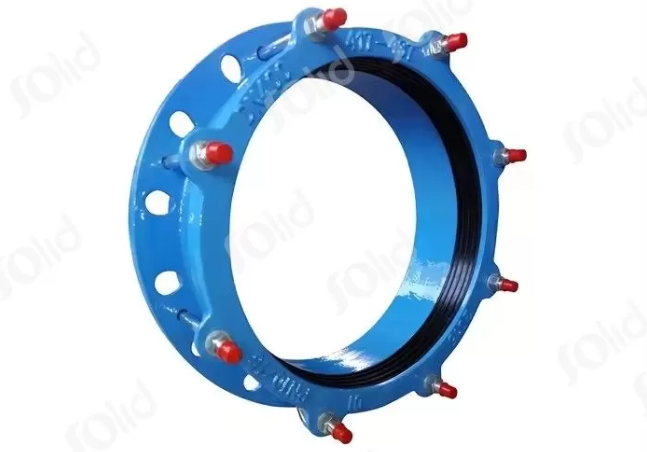

Top 5 Common Mistakes in Flange Adapter Installation and How to Fix Them

When installing flange adapters, whether for PE pipe systems, industrial piping, or any other fluid‑transportation network, there are common pitfalls that lead to leaks, failures, or premature wear. Precision, correct component choice, and rigorous installation procedures are the keys to a reliable flange connection. In this detailed guide, we highlight the top five common mistakes made during flange adapter installation — and provide practical, proven fixes so that your flange systems perform at optimum reliability and safety.

1. Incorrect Torque on Bolts: Uneven or Wrong Bolt Tightening

Why It's a Mistake

One of the most frequent errors in flange adapter installation is uneven bolt torque or using incorrect tightening force. If some bolts are overtightened while others remain loose, the sealing gasket won’t compress evenly — causing weak spots and potential leakage once the system is under pressure. Overtightening can even deform flange faces or damage threads.

How to Fix / Avoid It

• ·   Always use a calibrated torque wrench. Random spanners or impact tools are unreliable.

• ·   Tighten bolts in a criss‑cross (star) pattern, not in a circular order, to distribute pressure evenly.

• ·   Use a multi‑stage tightening procedure — e.g., hand‑tighten first, then do 30%, 60%, 100% of the final torque in stages.

• ·   After first pressurization, consider a re‑torque check — seals or gaskets may settle slightly under pressure.

2. Misplacement or Wrong Choice of Gasket / Sealing Element

Why It's a Mistake

A gasket seems like a simple, low‑tech element — yet incorrect gasket choice or misplacement is a leading cause of flange failures. Common errors: reusing old gaskets, using a gasket of incorrect size or material, or seating a gasket improperly (twisted, offset, or not fully within the flange groove). Used or deformed gaskets lose their ability to seal reliably.

How to Fix / Avoid It

• ·   Always use a new gasket for every installation or maintenance. Don’t reuse or flip old ones.

• ·   Select gasket material compatible with the medium and operating conditions (fluid type, pressure, temperature).

• ·   Ensure the gasket is correctly seated, centered, with no twists or protrusions. For vertical installations, consider using centering bolts or other methods to hold the gasket securely.

• ·   Avoid using adhesives or tapes to hold the gasket unless explicitly recommended — adhesives may degrade under operating conditions.

3. Ignoring Pipe / Flange Alignment and Support — Forcing Misaligned Joints

Why It's a Mistake

Flange adapters cannot compensate for poor alignment. If pipe and flange faces are slightly off center or angularly misaligned, even a properly torqued joint with a good gasket can fail — stress builds over time, causing leaks or cracks. Furthermore, unsupported or poorly supported pipes can shift under load or vibration, stressing the joint.

How to Fix / Avoid It

• ·   Ensure perfect alignment before inserting bolts — use a straight edge, level, or alignment tools to check that flange faces are flush and concentric.

• ·   Provide proper pipe support or jacks during installation to relieve stress from the joint while bolting.

• ·   Do not rely on bolts to pull misaligned flanges together — correct alignment first, then bolt.

4. Using Incompatible Materials, Gaskets or Bolts — Mismatched Pressure, Material, or Standards

Why It's a Mistake

A flange adapter installation can easily be compromised if the materials — flange body, bolts/nuts, gasket — are not matched to the service conditions. Inappropriate combinations may lead to corrosion, chemical attack, mechanical failure, or rejection by inspection authorities. Similarly, neglecting to verify pressure rating, flange specification, or bolt pattern is risky — using a flange rated for lower pressure in a high-pressure line can be catastrophic.

How to Fix / Avoid It

• ·   Select flange adapter, bolts, nuts, gasket — all materials — to match application: pressure, temperature, fluid chemical nature.

• ·   Verify that bolt patterns, flange standards, pressure class, face type (raised face, flat face, RTJ, etc.) match the piping system requirements.

• ·   Use standard-compliant bolts, nuts, washers. Don’t substitute random bolts or reuse rusty/worn ones.

5. Neglecting Surface Preparation and Protection: Dirty, Damaged or Uncoated Surfaces

Why It's a Mistake

Even with ideal bolts and gasket, if flange faces are dirty, corroded, scratched, or otherwise damaged — or if protective coatings are missing or damaged — the seal may fail. Tiny particles, rust, or irregularities create leak paths. Poor cleaning or not protecting flange surfaces during handling often leads to maintenance issues or immediate leaks.

How to Fix / Avoid It

• ·   Thoroughly clean flange faces before installation — remove rust, paint flakes, debris, grease, and any foreign matter.

• ·   Inspect surfaces for scratches, corrosion, dents or irregularities — if surface is compromised, consider re‑machining or replacing flange rather than risk a bad seal.

• ·   If flange parts are coated, ensure coating integrity; avoid scratches during handling and touch up damage before installation.

• ·   For gaskets requiring lubricant, apply only recommended lubricant types. Avoid lubricants that degrade gasket material.

Bonus Mistakes & Overlooked Details

• ·   Using wrong length bolts, washers or missing washers — if bolt length is incorrect (too long or too short), load distribution may be uneven or threads may bottom out.

• ·   Improper bolt/nut pairing during maintenance — keep each nut with its original bolt to maintain proper thread-fit tolerances.

• ·   Ignoring re‑torque after initial pressurization — gasket or O‑ring may settle under pressure; a post‑startup re‑check ensures long‑term seal integrity.

Conclusion — Best Practices for Reliable Flange Adapter Installation

A dependable and leak‑free flange adapter installation requires careful planning, correct material selection, meticulous surface preparation, and a disciplined installation technique. By avoiding the top mistakes — improper torque, wrong gasket choice, misalignment, incompatible materials, poor surface prep — and following best practices (calibrated torque wrench, cross‑pattern tightening, new gaskets, correct materials, surface cleaning, proper alignment and support), you significantly enhance the longevity and safety of your piping system.

Our approach emphasizes long-term reliability — not just quick installation. Installing technicians and engineers should follow manufacturer specifications, use standardized tools, and enforce methodical installation and inspection protocols. With proper attention to detail, flange adapter joints can remain robust, leak‑free, and safe for years of service.
