The Design Guide to Piping Systems with Rubber Expansion Joints.

Modern piping systems often require rubber expansion joints, which act as flexible connectors capable of absorbing heat, vibration, and various operational stresses. These joints play a crucial role in both industrial and residential piping systems by accommodating movement, reducing mechanical strain, and enhancing overall system longevity.

Definition & Function of Rubber Expansion Joints

Rubber expansion joints are flexible components in piping systems designed to absorb movement and isolate vibration. They accommodate axial, lateral, and angular movements caused by thermal expansion, pressure fluctuations, or seismic activity. By compensating for these stresses, rubber expansion joints help prevent mechanical failure and reduce strain on the piping infrastructure.

Examples of Rubber Expansion Joints in Piping Systems

Rubber expansion joints are available in various designs, each suited to specific applications:

Single Arch Joints: Ideal for standard applications with moderate movement. They are cost-effective and easy to install.

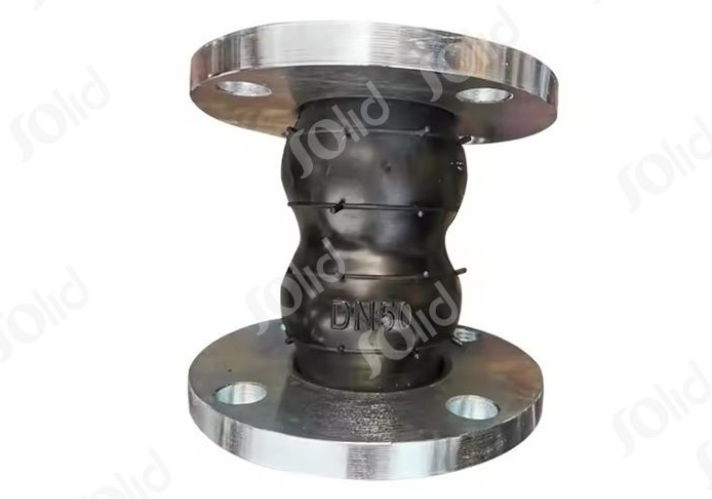

Multi-Arch Joints: Designed for systems requiring greater movement absorption. Suitable for dynamic piping configurations.

Tapered Joints: Used when there is a change in pipe diameter along the flow path.

Filled Arch Joints: Best suited for slurry or abrasive media, where solid particles may settle and harden inside the joint.

Benefits of Using Rubber Expansion Joints in Piping Systems

Rubber expansion joints offer several key advantages when integrated into piping systems:

Reduction of Vibration Transmission

Equipment suc  h as pumps and compressors often generate significant vibrations. Rubber expansion joints help absorb and isolate these vibrations, reducing the risk of damage to connected piping components.

Thermal Expansion Compensation

These joints accommodate changes in pipe length caused by temperature fluctuations, preventing stress buildup from expansion and contraction.

Noise Reduction

Rubber expansion joints help dampen noise generated by fluid movement or mechanical equipment, contributing to quieter system operation.

Easy Installation and Maintenance

Lightweight and flexible, rubber expansion joints are easy to install and require minimal support and maintenance.

To select the most suitable type for your application, it’s essential to understand the operating conditions and performance requirements. This ensures the joint functions reliably over time without premature failure.

Rubber Expansion Joints in Piping Systems

Rubber expansion joints play a critical role in ensuring the safety, efficiency, and longevity of piping systems. They are specifically engineered to manage thermal expansion, absorb vibrations, and reduce noise—ultimately improving overall system performance.

Compensating for Thermal Movement

Temperature fluctuations can cause pipes to expand or contract significantly. Without proper compensation, these dimensional changes can place excessive stress on the piping system, leading to failures such as leaks, cracks, or even burst pipes. Rubber expansion joints act as flexible connectors that absorb these movements, minimizing strain and protecting the system.

For example, a long metal pipe may expand by several inches on a hot day. By strategically installing rubber expansion joints along the pipeline, this expansion can be safely accommodated without compromising structural integrity.

Design Criteria for Rubber Expansion Joints

To ensure reliable performance and long service life, the design of rubber expansion joints in piping systems must consider several key factors. These include evaluating the operational environment, selecting the appropriate joint type, and following best installation practices.

Assessment of the Operational Environment

Temperature Considerations

The rubber expansion joint must be chosen based on the system’s maximum and minimum operating temperatures. Different rubber compounds have varying resistance to heat and cold. Selecting a joint that is not rated for the actual temperature conditions can lead to premature failure or reduced performance.

Pressure Ratings

System pressure is a critical factor in joint selection. Each rubber expansion joint is rated for specific pressure ranges. Using a joint below the required pressure rating may result in joint deformation, leakage, or catastrophic failure.

Chemical Compatibility

If the piping system transports chemicals, it is essential to ensure that the rubber material used in the expansion joint is chemically compatible with the media. Incompatible substances can degrade the rubber over time, leading to cracking, leaks, and potential system contamination.

Selecting the Right Type of Rubber Expansion Joint

Single Arch vs. Multiple Arch Designs

The choice between single and multiple arch expansion joints depends on the expected movement within the piping system. For applications involving significant thermal expansion, ground settlement, or greater flexibility requirements, multiple arch joints are generally preferred, as they can absorb more movement over a wider range of directions. Single arch joints, while more compact, are typically suited for moderate movement conditions.

Importance of Face-to-Face Dimensions

The face-to-face dimension determines the joint’s ability to accommodate movement without exceeding its design limits. Properly sized joints prevent overstressing, compression, or elongation, ensuring optimal performance and longevity. Accurate dimensioning is essential for maintaining joint integrity during system operation.

Installation Best Practices

Proper Alignment and Anchoring

Rubber expansion joints must be precisely aligned with the adjacent piping to avoid undue stress. Misalignment can cause uneven load distribution, leading to premature wear or failure. Additionally, adequate anchoring and pipe support are critical to prevent unwanted movement due to pressure fluctuations or system expansion.

Avoiding Torsion and Over-Extension

During installation, it is crucial to prevent any twisting (torsional stress) of the expansion joint, as it can compromise the structural integrity of the unit. Care should also be taken not to overstretch or compress the joint beyond its specified range, which could reduce its service life or lead to immediate failure.

Tips for a Safe Fit

To ensure a secure and leak-free connection, select the appropriate flange style, bolt pattern, and gasket material. Each component must be compatible with the existing flange and properly assembled to prevent future leakage.

Proper design is critical to the effective integration of rubber expansion joints into piping systems. Engineers and technicians must follow established guidelines to guarantee system efficiency, durability, and long-term reliability.

Common Concerns

Even with careful design, challenges may arise when using rubber expansion joints in piping systems. This section outlines potential issues and offers practical insights to help prevent failures and ensure optimal performance in real-world applications.

Managing Misalignment and Angular Movements

Misalignment can result from improper installation, ground settlement, or operational movement. Rubber expansion joints designed with enhanced lateral and angular flexibility can effectively compensate for such issues. These joints are engineered to maintain structural integrity under misaligned conditions, minimizing stress and reducing the risk of damage.

Maintenance Tips for Rubber Expansion Joints

Routine Inspections

Regular inspections are essential to identify signs of wear such as cracking, bulging, or erosion. Early maintenance or replacement can significantly extend the service life of rubber expansion joints.

Recognizing Wear and Tear

Timely detection of surface degradation, stiffness changes, or visible wear around joint areas is critical. These signs may indicate potential leakage or performance issues, and addressing them early can prevent costly failures.

Replacement Planning

Establish a clear replacement strategy, including maintaining spare joints in inventory and ensuring personnel are trained for quick installation. This minimizes downtime and operational losses when components reach the end of their service life.
