Stainless Steel Repair Clamp vs. Ductile Iron Repair Clamp: Which One Fits Your Pipeline?

When a pipeline develops a crack, pinhole, corrosion hole, or localized leak, replacing the entire pipe section can be costly and time-consuming. A pipe repair clamp offers a practical alternative by sealing the damaged area externally and helping restore the pipeline without extensive pipe replacement or long service interruptions.

Among the options available for pipeline maintenance, the stainless steel repair clamp and ductile iron repair clamp are widely used for water, industrial, irrigation, and underground piping systems. Although both products are designed to repair damaged pipes, their material properties, corrosion resistance, application environments, weight, and cost can differ significantly.

For contractors, distributors, municipal water companies, and industrial purchasing teams, understanding these differences is essential when selecting the right repair solution.

Stainless Steel Repair Clamp vs. Ductile Iron Repair Clamp: At a Glance

The two types of repair clamps can both provide effective leak sealing, but they are designed around different material characteristics and project requirements.

The final selection should always be based on the actual pipe material, outside diameter, operating pressure, fluid, installation environment, and manufacturer's specifications.

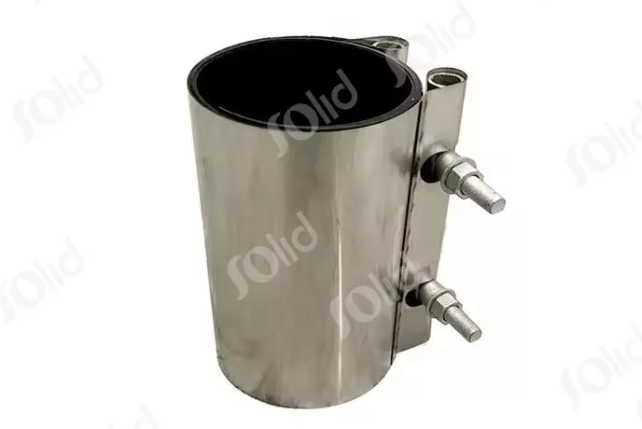

What Is a Stainless Steel Repair Clamp?

A stainless steel repair clamp is a mechanical pipe repair fitting designed to seal localized damage without removing the damaged pipe section. It generally consists of a stainless steel shell or band, a sealing gasket, fastening bolts, and other structural components.

During installation, the clamp is positioned over the damaged section of the pipe. Tightening the bolts compresses the gasket against the pipe surface, creating a seal around the leakage point.

One of the biggest advantages of stainless steel is its resistance to corrosion. This makes stainless steel repair clamps particularly useful in environments where the clamp may be exposed to moisture, rain, humidity, salts, or corrosive substances.

Depending on the stainless steel grade, the clamp can also provide strong mechanical performance while maintaining a relatively compact and lightweight design.

For maintenance teams working on difficult-to-access pipelines, this combination of corrosion resistance and manageable weight can be an important practical advantage.

What Is a Ductile Iron Repair Clamp?

A ductile iron repair clamp, also known as a DI lug repair clamp, uses ductile iron components to create a rigid and durable repair structure around a damaged pipe.

Ductile iron is known for its strength, toughness, and resistance to mechanical impact. Compared with conventional cast iron, ductile iron offers improved mechanical properties, making it suitable for demanding infrastructure applications.

DI lug repair clamps are commonly used in municipal water systems, underground pipelines, wastewater networks, and industrial utility infrastructure. Their robust construction can provide reliable support where external loads and mechanical stability are important considerations.

A ductile iron repair clamp may also be selected for larger pipeline applications where a rigid repair assembly is preferred.

1. Material: Stainless Steel vs. Ductile Iron

The most fundamental difference is the material itself.

Stainless steel is an alloy designed to provide both strength and corrosion resistance. Its performance depends on the specific grade, so buyers should confirm the actual stainless steel specification rather than relying only on the general term "stainless steel."

Ductile iron is an iron-based material engineered for higher tensile strength and toughness. It provides a substantial, rigid structure and is commonly used in water infrastructure where mechanical durability is important.

From a purchasing perspective, neither material is automatically better for every application. The correct choice depends on whether the project places greater emphasis on corrosion resistance, structural rigidity, weight, environmental exposure, or budget.

2. Corrosion Resistance

Corrosion resistance is one of the clearest advantages of a stainless steel repair clamp.

Stainless steel generally performs well in wet environments and can resist many forms of atmospheric and surface corrosion. This makes it an attractive option for:

· Humid environments

· Coastal regions

· Outdoor pipelines

· Irrigation systems

· Water treatment facilities

· Applications exposed to moisture or salt

However, stainless steel is not equally resistant across all grades. For projects involving high chloride concentrations or aggressive chemicals, the selected grade should be evaluated carefully.

A ductile iron repair clamp can also achieve reliable service life, but it typically depends more heavily on an appropriate protective coating or corrosion-control system. The soil environment, moisture exposure, and installation conditions therefore need to be considered before selecting a DI clamp.

For underground applications, buyers should evaluate both the ductile iron itself and the protection system used on the finished product.

3. Application Environment

The operating environment can strongly influence the choice between an SS repair clamp and a DI lug repair clamp.

Stainless Steel Repair Clamp Applications

A stainless steel repair clamp can be a good fit for projects where corrosion resistance and easier handling are important. Typical applications include water distribution, irrigation, industrial piping, exposed pipelines, and environments with high humidity.

It can also be useful for maintenance teams that need to transport and install clamps manually without handling excessively heavy components.

Ductile Iron Repair Clamp Applications

A ductile iron repair clamp is commonly used in infrastructure projects where rigidity and mechanical strength are major requirements.

Typical applications include:

· Municipal water mains

· Underground water pipelines

· Wastewater systems

· Industrial utility networks

· Large-diameter pipelines

· Buried infrastructure

Because ductile iron provides a robust structural body, it can be attractive for pipelines that may be exposed to external mechanical loads.

4. Weight and Installation

Installation conditions are particularly important for emergency pipeline repairs.

Stainless steel repair clamps are generally lighter than equivalent ductile iron products. This can make transportation, positioning, and installation easier, particularly in narrow trenches, confined spaces, or locations where lifting equipment is limited.

A ductile iron repair clamp generally has a heavier and more substantial construction. While this added weight can come with greater rigidity, it may also increase handling requirements during installation.

However, installation performance does not depend on weight alone. The clamp design, bolt arrangement, gasket structure, pipe condition, and available installation space can all affect installation efficiency.

For both clamp types, correct bolt tightening and proper gasket compression are essential for achieving a reliable seal.

5. Pipe Compatibility

Before ordering any repair clamp, buyers should verify compatibility with the existing pipe.

Different pipelines may use ductile iron, cast iron, steel, PVC, PE, or other materials. A clamp must be designed to match the pipe's outside diameter and provide sufficient sealing contact.

The nominal pipe size is not always enough for accurate product selection. The actual outside diameter should be confirmed, particularly when working with pipes manufactured under different standards.

The following factors should be checked:

Confirming these details before purchase can reduce installation problems and avoid selecting the wrong clamp size or configuration.

6. Cost: Which Repair Clamp Is More Economical?

Cost is often one of the first considerations in large pipeline repair projects, but comparing only the purchase price can be misleading.

A stainless steel repair clamp generally has a higher material cost because stainless steel is a premium engineering material. However, its corrosion resistance may provide value in environments where a lower-cost material would require additional protection or more frequent maintenance.

A ductile iron repair clamp can offer a competitive initial cost and strong mechanical performance, making it attractive for large infrastructure projects where substantial quantities are required.

Rather than evaluating only the product price, professional buyers should consider the total lifecycle cost.

The most economical choice is therefore not necessarily the product with the lowest purchase price. Project conditions and expected service life should be included in the calculation.

7. Stainless Steel Repair Clamp or DI Lug Repair Clamp: Which Should You Choose?

There is no single repair clamp that is ideal for every pipeline.

A stainless steel repair clamp may be the right solution when the project requires strong corrosion resistance, easier handling, and reliable performance in wet or exposed environments.

A ductile iron repair clamp may be more suitable when the project emphasizes structural rigidity, mechanical strength, and robust performance in municipal or underground pipeline infrastructure.

The decision can be summarized as follows:

These are general selection guidelines. The actual product should always be verified against the pipeline's technical requirements and the manufacturer's published specifications.

8. Questions to Ask Before Purchasing a Pipe Repair Clamp

For distributors, contractors, and pipeline maintenance teams, asking the right technical questions can prevent costly installation errors.

Before placing an order, confirm:

What is the actual outside diameter of the pipe?
The clamp must match the actual pipe OD and required size range.

What material is the existing pipe?
The repair clamp should be suitable for ductile iron, steel, PVC, PE, cast iron, or the specific pipe material being repaired.

What is the operating pressure?
Pressure requirements should be checked against the clamp's rated performance.

What type of damage needs to be repaired?
Cracks, holes, corrosion damage, and localized leaks may require different repair configurations.

What fluid flows through the pipeline?
Gasket materials should be compatible with potable water, wastewater, chemicals, or other transported media.

What is the installation environment?
Consider underground trenches, exposed pipework, humidity, salt, soil chemistry, temperature, and available workspace.

What material and coating specifications are required?
Confirm the stainless steel grade or ductile iron and protective coating used in the repair clamp.

Conclusion

Both the stainless steel repair clamp and ductile iron repair clamp provide practical solutions for repairing damaged pipelines without replacing an entire pipe section. The main difference lies in how their material properties match the requirements of the installation environment.

A stainless steel repair clamp offers strong corrosion resistance, relatively low weight, and convenient handling, making it attractive for humid, coastal, exposed, and corrosion-sensitive applications.

A ductile iron repair clamp provides a robust and rigid construction that can be well suited to municipal water systems, underground pipelines, wastewater networks, and projects where mechanical strength is a key consideration.

For pipeline contractors, distributors, engineering companies, and infrastructure buyers, the best choice should be based on pipe diameter, pipe material, pressure rating, damage type, environmental exposure, installation conditions, and total lifecycle cost.

By evaluating these factors before purchasing, you can select a repair clamp that provides reliable sealing performance and long-term value for your pipeline system.
