Restrained vs Non-Restrained Flange Adaptor: Key Differences for Pipeline Projects

In water pipeline construction, every connection point must be safe, sealed, and suitable for the operating conditions of the system. A flange adaptor is one of the most commonly used fittings for connecting plain-end pipes to flanged valves, pumps, meters, hydrants, dismantling joints, and other pipeline equipment.

However, not all flange adaptors work in the same way. One of the most important choices for engineers, contractors, and project buyers is whether to use a restrained flange adaptor or a non-restrained flange adaptor.

The two products may look similar from the outside, but their performance in a pipeline system can be very different. A restrained flange adaptor is designed to hold the pipe against axial movement and pipe pull-out, while a non-restrained flange adaptor mainly provides sealing and connection, usually requiring external anchoring or thrust restraint when pressure forces are present.

This article explains the key differences between restrained and non-restrained flange adaptors, where each type should be used, and how to choose the right option for your pipeline project.

What Is a Flange Adaptor?

A flange adaptor is a mechanical pipe fitting used to connect a plain-ended pipe to a flanged component. Instead of welding or threading the pipe, the flange adaptor grips or seals around the outside diameter of the pipe and provides a standard flange connection on the other side.

Flange adaptors are widely used in:

• ·   Municipal water supply pipelines

• ·   Wastewater treatment systems

• ·   Irrigation networks

• ·   Fire protection pipelines

• ·   Industrial water systems

• ·   Pump stations and valve chambers

• ·   Pipeline repair and maintenance projects

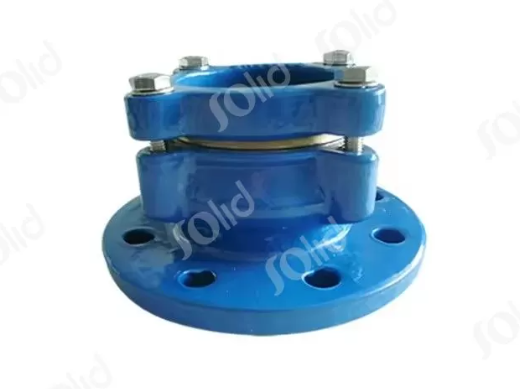

A typical flange adaptor may include a ductile iron body, end ring, rubber gasket, bolts, nuts, and flange drilling according to project requirements. Depending on the design, it may be suitable for ductile iron pipe, cast iron pipe, steel pipe, PVC pipe, PE pipe, asbestos cement pipe, GRP pipe, or other pipe materials.

The main functions of a flange adaptor are to simplify installation, compensate for small pipe outside diameter variations, create a watertight seal, and provide a reliable transition from a plain pipe end to a flanged pipeline component.

What Is a Non-Restrained Flange Adaptor?

A non-restrained flange adaptor, also called a non-tensile flange adaptor, is mainly designed to provide a sealed flange connection. It does not normally provide full axial restraint against pipe pull-out.

In simple terms, a non-restrained flange adaptor holds the pipe in position for sealing, but it is not designed to act as the main thrust restraint device. When the pipeline is under pressure, forces can be generated at valves, bends, tees, reducers, end caps, and other direction-changing points. If these forces are not properly controlled, the pipe may move, separate, or pull out of the fitting.

Because of this, non-restrained flange adaptors are commonly used together with:

• ·   Concrete thrust blocks

• ·   External pipe anchors

• ·   Tie rods

• ·   Flanged restraints

• ·   Properly designed pipe supports

• ·   Other approved thrust restraint systems

Non-restrained flange adaptors are often chosen for straight pipeline connections, repair works, low-risk locations, or projects where separate civil anchoring is already included in the design.

What Is a Restrained Flange Adaptor?

A restrained flange adaptor, also called a tensile flange adaptor or grip flange adaptor, is designed to provide both sealing and axial restraint. It normally includes a gripping mechanism that locks onto the pipe surface and helps prevent pipe pull-out under internal pressure.

The restraint system may use grip rings, teeth, wedges, or other mechanical locking designs depending on the manufacturer and pipe material. When installed correctly, the restrained flange adaptor helps keep the pipe and flange connection secure even when axial forces are present.

Restrained flange adaptors are especially useful in pipeline projects where movement control is critical, such as:

• ·   Pump stations

• ·   Valve chambers

• ·   Above-ground pipelines

• ·   Buried pipelines with limited space for thrust blocks

• ·   Fire water pipelines

• ·   High-pressure water mains

• ·   Temporary or emergency pipeline repair

• ·   Areas with poor soil conditions

• ·   Pipeline systems with frequent pressure changes

Compared with non-restrained types, restrained flange adaptors can reduce dependence on large concrete thrust blocks and make installation more compact and flexible.

Restrained vs Non-Restrained Flange Adaptor: Main Differences

Key Difference 1: Axial Restraint

The most important difference is axial restraint.

A restrained flange adaptor is designed to resist the axial forces that can cause a pipe to move or pull out of the fitting. This is particularly important in pressure pipelines where water hammer, pump start-stop cycles, valve operation, and pressure surges may create additional stress.

A non-restrained flange adaptor does not provide the same level of pipe pull-out resistance. It creates a seal around the pipe, but the pipeline design must include another method to control axial movement.

For engineers, this is the first question to ask: Does this connection need to resist pipe pull-out forces by itself? If yes, a restrained flange adaptor is usually the safer choice.

Key Difference 2: Pipeline Safety

Pipeline failure is often not caused by the pipe body itself, but by weak or unsuitable connections. If a plain-ended pipe is connected to a flanged valve without adequate restraint, internal pressure may push the pipe out of position.

A restrained flange adaptor improves pipeline safety by combining sealing and gripping in one fitting. This helps reduce the risk of joint separation, leakage, flooding, equipment damage, and service interruption.

A non-restrained flange adaptor can also be safe when used correctly, but only if the pipeline has proper external restraint. The problem usually occurs when buyers select a non-restrained adaptor for a location where axial thrust forces were not fully considered.

Key Difference 3: Installation Conditions

Installation environment is another major factor.

In open trench projects with enough space, contractors may use non-restrained flange adaptors together with concrete thrust blocks. This can be a cost-effective solution for many standard water pipeline projects.

However, in narrow valve chambers, pump rooms, repair trenches, or congested underground utility areas, there may not be enough space to build a proper thrust block. In these situations, restrained flange adaptors are often more practical because they provide integrated restraint in a compact fitting.

Restrained adaptors can also help speed up installation because they reduce the need for additional civil works. This can be valuable for emergency repairs, shutdown-sensitive projects, and urban water supply networks where downtime must be minimized.

Key Difference 4: Cost and Project Value

At first glance, a non-restrained flange adaptor is usually cheaper than a restrained flange adaptor. For price-sensitive projects, this may look like the better option.

However, the real cost should include the full installation system, not only the fitting price. A non-restrained adaptor may require thrust blocks, anchors, extra labor, curing time for concrete, more excavation, and additional inspection work.

A restrained flange adaptor may have a higher unit price, but it can help reduce installation time, simplify the design, save space, and improve joint security. For many pipeline projects, the total installed cost may be more competitive than expected.

The best choice depends on project pressure, pipe material, soil conditions, available space, installation time, and safety requirements.

When Should You Use a Restrained Flange Adaptor?

A restrained flange adaptor is recommended when the pipeline connection must resist axial movement or when external thrust restraint is difficult to install.

Common use cases include:

• ·   Connecting valves in pressure pipelines

• ·   Connecting pumps, meters, and hydrants

• ·   Pipeline systems with pressure surges

• ·   Buried pipelines where thrust blocks are not practical

• ·   Above-ground pipelines that need mechanical restraint

• ·   Emergency repair projects

• ·   Water mains in urban areas

• ·   Fire protection pipelines

• ·   Soft soil or unstable ground conditions

• ·   Projects requiring compact installation

If the pipeline has bends, reducers, tees, valves, blank ends, or pump discharge points near the adaptor, the need for restraint should be carefully evaluated.

When Should You Use a Non-Restrained Flange Adaptor?

A non-restrained flange adaptor may be suitable when the pipeline is already properly anchored or when axial forces are controlled by other design elements.

Common use cases include:

• ·   Straight pipeline connections

• ·   Low-pressure water systems

• ·   Locations with existing thrust blocks

• ·   Valve chambers with independent anchoring

• ·   Systems where pipe movement is not a major concern

• ·   Standard waterworks projects with sufficient civil support

• ·   Applications where budget control is a priority

The key point is that non-restrained does not mean low quality. It simply means the adaptor is not designed to be the primary pipe restraint device. When selected and installed correctly, it can be a reliable and economical solution.

How to Choose the Right Flange Adaptor for Your Project

Before selecting a restrained or non-restrained flange adaptor, project buyers and engineers should confirm the following details:

1. Pipe Material

Different pipe materials require different sealing and gripping designs. Ductile iron, steel, PVC, PE, GRP, and asbestos cement pipes may have different outside diameter tolerances and surface hardness.

2. Pipe Outside Diameter

Always confirm the actual pipe outside diameter, not only the nominal pipe size. A wide-range flange adaptor may be required when the exact pipe OD varies.

3. Working Pressure

Higher pressure creates stronger thrust forces. For high-pressure water pipelines, restrained fittings are often preferred at critical points.

4. Flange Standard

Confirm the flange drilling standard, such as PN10, PN16, ANSI Class 150, BS, EN, or other project-specific standards.

5. Installation Location

Valve chambers, pump stations, buried pipelines, and above-ground systems may require different restraint solutions.

6. Corrosion Protection

For long-term water pipeline service, ductile iron flange adaptors should have reliable coating protection, such as epoxy powder coating, and corrosion-resistant bolts where required.

7. Project Safety Requirements

If leakage, pipe pull-out, or downtime would cause serious losses, a restrained flange adaptor may provide better long-term security.

Common Mistakes to Avoid

Mistake 1: Choosing Only by Price

The cheapest flange adaptor is not always the most economical choice. If additional restraint or civil work is required, the final project cost may increase.

Mistake 2: Ignoring Pipe Pull-Out Risk

A non-restrained adaptor should not be used as a substitute for a restrained adaptor in pressure-sensitive locations unless another approved restraint method is included.

Mistake 3: Not Checking Pipe OD

Nominal diameter and actual outside diameter are not always the same. Incorrect OD selection can cause leakage or installation failure.

Mistake 4: Using the Wrong Flange Standard

Flange drilling must match the valve, pump, or equipment flange. Otherwise, the connection cannot be installed correctly.

Mistake 5: Poor Bolt Tightening

Incorrect bolt torque may lead to uneven gasket compression, leakage, or reduced gripping performance. Always follow the manufacturer’s installation instructions.

Restrained or Non-Restrained: Which One Is Better?

There is no single answer for every pipeline project. The better choice depends on the operating conditions.

Choose a restrained flange adaptor if your project requires pipe pull-out resistance, compact installation, better movement control, or improved safety at critical connection points.

Choose a non-restrained flange adaptor if the pipeline is already properly anchored, the connection is in a stable straight section, and external thrust restraint is included in the design.

For important water pipeline projects, the safest approach is to review the pressure rating, pipe material, pipe OD, installation space, thrust force, and long-term maintenance requirements before making a purchase decision.

FAQ: Restrained vs Non-Restrained Flange Adaptor

1. What is the main difference between restrained and non-restrained flange adaptors?

The main difference is pipe restraint. A restrained flange adaptor is designed to resist axial pipe movement and pull-out, while a non-restrained flange adaptor mainly provides sealing and flange connection.

2. Does a non-restrained flange adaptor need a thrust block?

In many pressure pipeline applications, yes. A non-restrained flange adaptor usually needs separate anchoring, thrust blocks, tie rods, or another approved restraint system.

3. Is a restrained flange adaptor more expensive?

The unit price is usually higher, but it may reduce civil work, installation time, and space requirements. The total installed cost should be evaluated, not only the product price.

4. Can restrained flange adaptors be used for PVC or PE pipes?

Yes, but the adaptor must be designed for the specific pipe material. Plastic pipes require suitable gripping technology to avoid pipe damage while providing secure restraint.

5. Are flange adaptors suitable for drinking water pipelines?

Yes, many flange adaptors are used in potable water systems. Buyers should confirm that the coating, rubber gasket, and materials meet the required drinking water standards for the project.

6. What information should I provide when requesting a flange adaptor quotation?

Provide pipe material, pipe outside diameter, nominal diameter, working pressure, flange standard, coating requirement, bolt material, quantity, and whether the adaptor needs to be restrained or non-restrained.

Conclusion

Restrained and non-restrained flange adaptors both play important roles in pipeline projects, but they are not interchangeable in every situation. A non-restrained flange adaptor is a practical and economical choice for properly anchored systems, while a restrained flange adaptor provides added protection against axial movement and pipe pull-out.

For municipal water supply, wastewater, irrigation, fire protection, and industrial pipeline projects, selecting the correct flange adaptor can improve installation efficiency, reduce leakage risk, and support long-term pipeline reliability.

If you are not sure which type is suitable for your project, share your pipe material, pipe OD, pressure rating, flange standard, and installation conditions with our technical team. We can help you choose the right restrained or non-restrained flange adaptor for a safer and more reliable pipeline connection.
