Quick Adaptor for PE vs. PE Stub End and Backing Flange: Which Connection Is Better?

When a polyethylene pipeline must connect to a flanged valve, pump, hydrant, meter, or metal pipeline, engineers commonly consider two solutions: a mechanical quick adaptor for PE pipe or a PE stub end with a metal backing flange.

Neither connection is universally better. A quick adaptor is often more practical for emergency repairs, retrofit projects, and sites where fusion equipment cannot be deployed. A PE stub end and backing flange is generally preferred for planned permanent installations where standardized flange compatibility, predictable axial restraint, and long-term system integration are the main priorities.

The correct choice depends on more than pipe diameter and pressure rating. Installation equipment, shutdown duration, available working space, pipe movement, maintenance strategy, and pullout resistance must all be considered.

How Do the Two PE Pipe Connections Work?

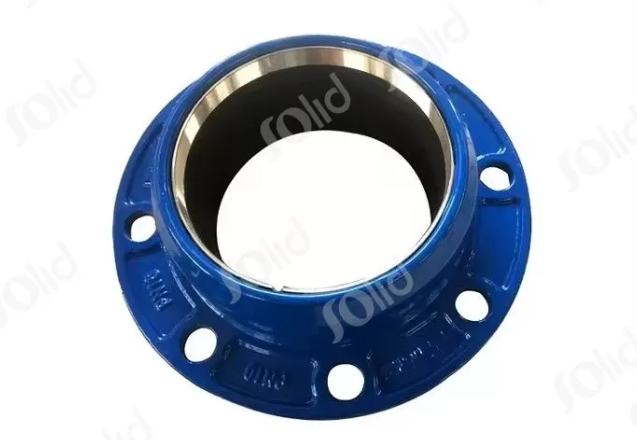

Mechanical Quick Adaptor for PE Pipe

A quick adaptor connects directly to the plain end of a PE pipe. Its mechanical components compress an elastomeric seal around the pipe’s outside diameter, while a gripping or locking mechanism holds the pipe in position. The opposite end normally provides a drilled flange for connection to a valve or other flanged equipment.

Unlike a fused connection, the adaptor does not require the pipe end to be melted. Mechanical fittings designed for PE commonly use teeth, ridges, or gripping elements that engage the pipe surface when the fitting is tightened.

However, sealing and restraint are not the same function. A gasket may provide a pressure-tight seal while the fitting still has limited resistance to axial pipe movement. The installer must confirm whether the selected quick adaptor is:

• ◆  Unrestrained or partially restrained

• ◆  Fully end-load resistant

• ◆  Supplied with a dedicated PE grip ring

• ◆  Designed to use an internal pipe stiffener

• ◆  Rated for the pipe’s PE grade, SDR, outside diameter, and operating pressure

The product’s declared pullout resistance should be checked instead of assuming that every mechanical PE adaptor is fully restrained.

PE Stub End and Backing Flange

In this arrangement, a PE stub end—also called a PE flange adaptor—is butt-fused or electrofusion-welded to the PE pipe. A loose metal backing flange is positioned behind the enlarged face of the stub end. Bolts then clamp this assembly to the mating flange, with the specified gasket arrangement between the flange faces.

The PE stub end forms the fluid-contacting sealing face, while the backing flange distributes the bolt load. A properly designed and assembled PE flange connection can provide a leak-tight, fully end-load-resistant joint.

Backing-flange rigidity is important. If the ring is too flexible, it can dish or distort as the bolts are tightened, producing uneven compression around the sealing face.

Quick Comparison

1. Installation Equipment and Crew Requirements

A mechanical quick adaptor has a clear advantage when fusion equipment is unavailable. The crew normally needs pipe-cutting and cleaning tools, measurement equipment, suitable lubricants where specified, and calibrated tools for tightening the bolts.

This makes the adaptor attractive for remote water networks, emergency repair vehicles, irrigation systems, and retrofit work inside an existing chamber.

The PE stub-end solution requires more preparation. For butt fusion, the installer may need:

• ◆  A correctly sized fusion machine

• ◆  Pipe clamps and alignment equipment

• ◆  A facing tool

• ◆  A controlled heating plate

• ◆  A clean work zone

• ◆  A power source or hydraulic power unit

• ◆  Trained fusion personnel

• ◆  Time for the fused joint to cool before handling

Electrofusion can reduce the size of some equipment, but it still requires compatible fittings, scraping and cleaning tools, an electrofusion control unit, and careful preparation.

The fusion method therefore adds equipment and procedural controls. On a planned project, this may not be a disadvantage because the same fusion crew may already be joining the rest of the PE pipeline.

2. Shutdown Time and Emergency Repair

For a damaged pipeline that must return to service quickly, the mechanical PE quick adaptor is usually the more efficient option. Once the system is isolated, depressurized, drained, and made safe, the damaged end can be cut back to sound pipe and connected without waiting for a heat-fusion cycle.

This can reduce the repair window, particularly when:

• ◆  Fusion equipment must otherwise be transported to the site

• ◆  The pipe is inside a confined valve chamber

• ◆  Weather conditions complicate fusion

• ◆  The repair crew is working outside normal hours

• ◆  Only a short section of pipe is accessible

“Quick,” however, does not mean that installation controls can be skipped. The pipe must still be depressurized. Its outside diameter, SDR, surface condition, ovality, and insertion depth must be checked. Tightening should follow the manufacturer’s specified sequence and torque.

A stub-end connection may require a longer shutdown if the fitting is fused directly onto the installed pipeline. The difference becomes smaller when a prefabricated stub-end pup piece is prepared in advance and only the final site connection must be completed.

3. Working Space and Access

Site geometry can decide the connection method before pressure or cost is considered.

A quick adaptor generally needs:

• ◆  Enough straight pipe for the required insertion depth

• ◆  Radial clearance for bolts and tools

• ◆  Room to slide the fitting onto the pipe

• ◆  Sufficient access to inspect the gasket and gripping components

It can be valuable in trenches or chambers where a fusion carriage cannot fit.

A stub end and backing flange need additional axial space for pipe alignment and fusion equipment. The backing flange must also be placed over the pipe before the stub end is fused. Forgetting this step may require the newly installed stub to be cut off and replaced.

On the other hand, a flange assembly can be easier where the pipe terminates directly at a pump, valve, or skid-mounted unit. The loose backing flange can rotate, allowing its bolt holes to align with the mating equipment flange without rotating the PE pipe.

4. Sealing Stability and Alignment

A quick adaptor normally seals against the outside surface of the PE pipe. Its performance is affected by:

• ◆  Incorrect pipe outside diameter

• ◆  Excessive pipe ovality

• ◆  Deep scratches or gouges

• ◆  Dirt under the gasket

• ◆  Uneven insertion

• ◆  Incorrect bolt tightening

• ◆  Unsupported pipe weight

• ◆  Angular misalignment beyond the permitted limit

PE is more flexible than steel or ductile iron. If the pipe is forced into alignment, continuously bends at the adaptor, or hangs from the connection, the gasket and gripping mechanism may be exposed to uneven loading.

A stub-end flange seals across the flange face. Reliable performance depends on correct flange alignment, compatible dimensions, a suitable gasket where required, sufficient backing-flange stiffness, and controlled bolt loading. The connected equipment should not be pulled into position by tightening the flange bolts.

Because PE can creep and relax under sustained compression, flange procedures may require staged tightening and subsequent bolt checks. The applicable pipe, fitting, gasket, and equipment instructions should determine the final procedure.

5. Pullout Resistance Is a Critical Difference

PE pipelines can generate significant axial forces through internal pressure, temperature changes, water hammer, bending, and contraction. Transitions between a fully fused PE pipeline and an unrestrained mechanical or gasketed system require particular attention.

Mechanical bolt-type couplings may include a grip ring capable of providing pullout resistance, but performance depends on the fitting design. Some arrangements also require an internal stiffener to prevent the PE wall from deforming under gasket and gripping loads.

Therefore, a quick adaptor should not be selected solely because its pressure rating matches the pipeline. Engineers should also verify:

• ◆  Maximum allowable axial load

• ◆  Tested pullout resistance

• ◆  Need for an internal stiffener

• ◆  Compatibility with the pipe SDR

• ◆  Performance under pressure cycling

• ◆  External anchoring requirements

• ◆  Manufacturer limitations on buried or above-ground use

The fused stub-end arrangement is usually easier to integrate into a fully restrained PE system because the stub is permanently fused to the pipe. Nevertheless, the backing flange, bolts, gasket, mating flange, and adjacent equipment supports must all be designed for the expected forces.

6. Maintenance and Future Disassembly

Both systems can provide a removable flanged interface, but they differ in what remains attached to the pipe.

With a quick adaptor, the entire adaptor can generally be removed from the plain PE pipe. This is useful when replacing a damaged fitting or changing the connected valve. The pipe end must then be inspected for tooth marks, deformation, or surface damage before the fitting is reinstalled.

With a PE stub end, the bolted flange can be opened to remove the valve or equipment, but the stub end remains fused to the pipe. If the stub itself is damaged or incompatible with new equipment, it must normally be cut off and another fitting fused in place.

For routine valve or pump maintenance, a properly installed stub-end flange is still highly serviceable. Its standardized bolted connection makes repeated equipment removal relatively straightforward.

7. Which Connection Should You Choose?

Choose a mechanical PE quick adaptor when:

• ◆  The connection is part of an emergency repair

• ◆  Shutdown time must be minimized

• ◆  Fusion equipment cannot reach the work area

• ◆  A plain PE pipe end must connect directly to flanged equipment

• ◆  The installation is temporary or likely to be modified

• ◆  The fitting’s pressure and pullout ratings have been verified

• ◆  External restraint can be added if required

Choose a PE stub end and backing flange when:

• ◆  The installation is planned and permanent

• ◆  A fusion crew and suitable equipment are available

• ◆  The pipeline must form a continuous restrained PE system

• ◆  The connection serves permanent pumps, valves, meters, or process equipment

• ◆  Standardized flange compatibility is important

• ◆  Long-term axial-load management is a priority

• ◆  There is enough space to perform and inspect the fusion process

Final Verdict

For fast installation, emergency repairs, and confined retrofit sites, the mechanical quick adaptor for PE is often the better practical choice. It reduces dependence on fusion equipment and can shorten the time needed to reconnect a plain-end PE pipe to a flanged component.

For planned permanent pipelines, a PE stub end and backing flange generally provide the more conventional long-term solution. The fused connection offers predictable load transfer, while the bolted flange remains accessible for valve or equipment maintenance.

The final decision should never be based only on installation speed. Pressure rating, pipe SDR, flange drilling, gasket compatibility, axial forces, surge conditions, temperature variation, support arrangements, and verified pullout resistance must be reviewed together. If the mechanical adaptor is not explicitly rated as fully restrained, additional anchoring or a dedicated restrained flange adaptor may be necessary.

The better connection is the one that controls both leakage and pipe movement under the actual operating and installation conditions—not simply the one that is quickest to assemble.
