PN10 vs PN16 Universal Pipe Couplings: Selection Guide

PN10 vs PN16 Universal Pipe Couplings: Which Pressure Rating Should You Choose?

When specifying a universal pipe coupling for a water supply, wastewater, irrigation or industrial piping project, one of the first questions is often:

Should I choose PN10 or PN16?

At first glance, the answer seems simple. PN10 is associated with a nominal pressure of 10 bar, while PN16 corresponds to 16 bar. Therefore, it may appear that a pipeline operating below 10 bar should always use PN10 and anything above that should use PN16.

In real projects, however, this approach is too simplistic.

The correct pressure rating depends not only on normal pipeline pressure, but also on surge pressure, hydrostatic test pressure, pipeline temperature, pipe material, joint design, pipe outside diameter, conveyed medium and the manufacturer's actual working-pressure rating for the coupling.

Choosing too low a pressure class can create unnecessary reliability and leakage risks. Choosing a higher pressure class than the system needs may increase purchasing cost without providing meaningful benefits.

This guide explains the practical differences between PN10 and PN16 universal pipe couplings and provides a step-by-step method for choosing the appropriate option for your pipeline.

What Does PN10 or PN16 Mean on a Pipe Coupling?

PN stands for nominal pressure, commonly used in metric piping systems to identify the pressure class of pipeline components.

In basic terms:

This makes PN16 a higher nominal pressure class than PN10.

However, the PN designation should not automatically be treated as the guaranteed maximum operating pressure under every operating condition.

Actual allowable working pressure can depend on:

• ·   Coupling design

• ·   Nominal diameter

• ·   Body and end-ring materials

• ·   Bolt configuration

• ·   Gasket material

• ·   Operating temperature

• ·   Conveyed medium

• ·   Applicable standard

• ·   Manufacturer's pressure and test ratings

This distinction is important. Published coupling data from major manufacturers shows that pressure capability may vary by product type and nominal diameter. In some flange-adaptor designs, for example, a component may even use PN16 flange drilling while its stated water working pressure for certain larger sizes remains 10 bar.

Therefore, always check the manufacturer's technical datasheet rather than selecting a coupling from the PN marking alone.

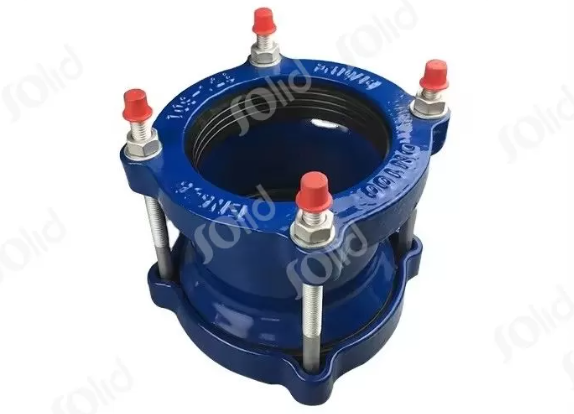

What Is a Universal Pipe Coupling?

A universal pipe coupling is a mechanical fitting designed to connect two plain-ended pipes without welding, threading or flanging the pipe ends.

A typical design uses:

• ·   Ductile iron or steel sleeve/body

• ·   End rings

• ·   Rubber sealing gaskets

• ·   Bolts and nuts

• ·   Wide-tolerance sealing arrangement

When the bolts are tightened, the end rings compress the rubber gasket onto the outside surface of the pipe, forming the seal.

One of the main advantages is its ability to accommodate a range of pipe outside diameters. Depending on the manufacturer's design, universal or wide-tolerance couplings may be suitable for materials such as:

• ·   Ductile iron

• ·   Cast iron

• ·   Carbon steel

• ·   PVC or uPVC

• ·   PE, where specifically approved

• ·   Asbestos cement in existing pipelines

• ·   Other standard water-pipeline materials

Modern universal couplings are widely used for water-main repairs, pipeline extensions and mixed-material connections. For example, currently available ductile-iron universal couplings designed to EN 14525 are offered for applications including water mains, buried pipe repair and connections between different pipe materials.

The pressure rating is therefore only one part of coupling selection.

PN10 vs PN16 Universal Pipe Couplings: Key Differences

The following comparison provides a useful starting point.

The table is only a preliminary comparison.

For an engineering or procurement decision, several additional factors must be checked.

1. Start With Maximum Operating Pressure — Not Average Pressure

The biggest mistake in selecting PN10 or PN16 is using the average operating pressure.

Consider a pipeline that normally operates at:

8 bar

A buyer might immediately specify PN10.

But suppose actual system conditions are:

• ·   Normal pressure: 8 bar

• ·   Peak operating pressure: 9.5 bar

• ·   Temporary surge: 12 bar

A PN10 coupling selected only according to the normal 8-bar pressure may therefore have insufficient margin.

The correct question is not:

“What pressure does the pipeline normally operate at?”

It is:

“What is the maximum pressure the coupling can experience under normal and abnormal operating conditions?”

Pressure data supplied to the coupling manufacturer should ideally include:

• ·   Normal working pressure

• ·   Maximum operating pressure

• ·   Static pressure

• ·   Pump shut-off pressure

• ·   Expected surge pressure

• ·   Hydrostatic test pressure

If the calculated or specified maximum pressure can exceed the PN10 product's allowable limit, PN16 should normally be evaluated.

2. Consider Water Hammer and Surge Pressure

Water hammer is one of the strongest reasons to avoid choosing a coupling with almost no pressure margin.

Pressure surges can occur when:

• ·   Pumps start suddenly

• ·   Pumps stop suddenly

• ·   Valves close rapidly

• ·   Check valves slam shut

• ·   Flow velocity changes rapidly

• ·   Air pockets move through pipelines

• ·   Power failure stops pumping equipment

For example, a water pipeline may operate continuously at only 7 or 8 bar but experience much higher short-duration pressure peaks.

This is particularly important in:

• ·   Pumping stations

• ·   Long transmission mains

• ·   Water-treatment plants

• ·   Fire-water systems

• ·   Irrigation pumping systems

• ·   High-flow industrial water networks

• ·   Pipelines with frequent valve operation

If significant surge pressure is possible, selecting PN10 simply because normal pressure is below 10 bar can be risky.

A PN16 coupling provides a higher nominal pressure class, but this does not eliminate the need for surge analysis. The complete pipeline system—including valves, pipes, fittings, flange adaptors and couplings—must be checked against the maximum expected pressure.

3. Do Not Confuse Working Pressure With Test Pressure

Another common purchasing error is treating hydrostatic test pressure as the same thing as continuous working pressure.

They are different.

Working pressure

The pressure the coupling is designed to withstand during normal continuous service.

Test pressure

A higher pressure applied for a limited period to verify integrity or compliance.

For example, some coupling manufacturers specify a site test pressure higher than the published working pressure, sometimes expressed as a multiple of working pressure. Current technical literature for certain coupling systems, for example, specifies short-duration testing at approximately 1.5 times working pressure.

But this does not mean the higher test pressure can be used as the continuous operating pressure.

When requesting a quotation, provide both figures separately:

Required Working Pressure: 10 bar
Required Test Pressure: 15 bar

This allows the supplier to confirm whether the coupling meets both requirements.

4. Check Pipe Outside Diameter, Not Just DN

Pressure rating does not matter if the coupling cannot correctly seal on the actual pipe.

Universal couplings are normally selected according to the actual outside diameter (OD) of the pipe.

For example, two pipes described as DN200 may have different outside diameters depending on:

• ·   Pipe material

• ·   Manufacturing standard

• ·   Pipe age

• ·   Regional specification

• ·   Coating thickness

A universal coupling therefore usually has a specified OD range, such as:

218–235 mm

or another manufacturer's tolerance range.

Before purchasing, verify:

1. Nominal pipe size

2. Actual pipe outside diameter

3. Pipe material

4. Coupling OD tolerance range

For old pipelines, measure the pipe in several positions because corrosion, coatings and manufacturing tolerances may affect the real OD.

This is particularly important when universal couplings are being used to connect different pipe materials.

5. Pipe Material Can Affect the Correct Coupling Design

A PN16 label does not automatically mean a coupling can safely connect every type of pipe.

The coupling must also be approved for the pipe material.

Common combinations include:

• ·   Ductile iron to ductile iron

• ·   Steel to steel

• ·   Steel to ductile iron

• ·   Cast iron to ductile iron

• ·   PVC to metal pipe

• ·   Existing asbestos-cement pipe to replacement pipe

Plastic pipe requires particular attention.

PE and PVC can respond differently to mechanical loading compared with metal pipe. Certain applications may require:

• ·   Pipe support inserts

• ·   Dedicated gripping systems

• ·   Restrained couplings

• ·   Specific gasket or end-ring configurations

Therefore, when purchasing a universal pipe coupling, never send only:

“DN200 PN16 coupling.”

A much better inquiry is:

“Universal coupling for DN200 ductile iron pipe, OD 222 mm, PN16 water service, operating pressure 12 bar.”

This gives the supplier enough information to confirm suitability.

6. Temperature Can Reduce the Allowable Pressure

PN pressure classes are often discussed as though pressure capability never changes.

In practice, temperature matters.

Pressure-temperature relationships are well established in piping-component standards, and allowable pressure can decrease as operating temperature rises. For example, published EN 1092-1 pressure-temperature data demonstrates that nominal PN ratings should not simply be assumed to remain unchanged across elevated-temperature service.

For typical cold-water pipelines this may not be a major issue.

It becomes much more important for:

• ·   Hot water

• ·   Industrial process water

• ·   Heated liquids

• ·   Certain chemical pipelines

• ·   Outdoor installations exposed to extreme temperatures

Temperature also affects the rubber gasket, making gasket selection critical.

Always provide both minimum and maximum operating temperatures when service conditions are outside normal water-distribution ranges.

7. Check Gasket Material and Fluid Compatibility

The coupling body can be strong enough for PN16 while the sealing material is unsuitable for the conveyed medium.

Common gasket materials include:

EPDM

Frequently used for water and many water-based services.

NBR

Often selected for applications requiring greater resistance to oils or hydrocarbons, depending on the exact fluid and formulation.

The correct gasket material depends on:

• ·   Fluid type

• ·   Chemical concentration

• ·   Temperature

• ·   Drinking-water requirements

• ·   Local certification requirements

For potable water projects, buyers may also require drinking-water approvals or compliant coating and gasket materials.

Therefore, specify the medium, rather than simply asking for a PN10 or PN16 coupling.

8. Is PN16 Always Better Than PN10?

No.

Higher pressure capacity does not automatically make PN16 the best commercial choice.

Suppose a gravity-fed irrigation pipeline has:

• ·   Maximum operating pressure: 4 bar

• ·   Maximum transient pressure: 6 bar

• ·   Test pressure within PN10 coupling limits

• ·   Compatible pipe material

• ·   Approved gasket

• ·   Project specification permitting PN10

In this situation, PN16 may offer little practical benefit.

Using PN16 everywhere can result in:

• ·   Higher component cost

• ·   More material

• ·   Potentially heavier fittings

• ·   Higher project procurement cost

For large infrastructure projects involving hundreds or thousands of fittings, unnecessary overspecification can significantly affect the total budget.

The correct approach is therefore:

Select sufficient pressure capacity with an appropriate engineering margin—not simply the highest available PN class.

When Should You Choose a PN10 Universal Pipe Coupling?

PN10 may be appropriate when all of the following conditions are satisfied:

• ·   Maximum working pressure is comfortably below the product's rated limit.

• ·   Surge pressure remains within permitted limits.

• ·   Hydrostatic test pressure is acceptable for the selected coupling.

• ·   Pipeline temperature is within the approved range.

• ·   Pipe OD is within the coupling tolerance.

• ·   Pipe material is approved.

• ·   Gasket is compatible with the medium.

• ·   PN10 complies with the project specification.

Typical applications may include certain:

• ·   Low-pressure water distribution networks

• ·   Gravity pipelines

• ·   Irrigation systems

• ·   Drainage systems

• ·   Utility-water lines

• ·   Low-pressure industrial water pipelines

The exact application alone should never determine the pressure class. Actual design pressure remains the deciding factor.

When Should You Choose a PN16 Universal Pipe Coupling?

PN16 becomes the more appropriate starting point when:

• ·   Working pressure exceeds the allowable PN10 range.

• ·   Operating pressure approaches 10 bar and little safety margin remains.

• ·   Significant surge pressure is expected.

• ·   The pipeline is connected to pumping equipment.

• ·   Project specifications require PN16.

• ·   Existing valves and fittings are predominantly PN16.

• ·   Future system pressure may increase.

• ·   Standardizing the network on PN16 simplifies maintenance or spare-parts management.

Typical environments include:

• ·   Municipal water mains

• ·   Pressurized transmission pipelines

• ·   Pump stations

• ·   Water-treatment facilities

• ·   Wastewater pumping lines

• ·   Industrial utility networks

• ·   Higher-pressure irrigation mains

Again, confirm the actual working-pressure rating of the specific coupling and size.

Practical PN10 vs PN16 Selection Examples

Example 1: Low-Pressure Irrigation Pipeline

Pipe: DN150 PVC
Operating pressure: 5 bar
Maximum surge: 7 bar
Medium: Water

PN10 may be sufficient if the manufacturer's coupling is approved for the specific PVC pipe, OD, temperature and required test pressure.

There is little reason to automatically specify PN16 solely because it is available.

Example 2: Municipal Water Distribution

Pipe: DN300 ductile iron
Normal pressure: 8 bar
Maximum expected pressure: 11.5 bar
Medium: Potable water

PN10 would be questionable because the maximum system pressure exceeds 10 bar.

A suitable PN16 coupling should be evaluated, together with potable-water approval, gasket compatibility and actual OD.

Example 3: Pump Discharge Pipeline

Pipe: DN250 steel
Normal operating pressure: 9 bar
Pump shut-off pressure: 12 bar
Possible transient pressure: 14 bar

Selecting PN10 based only on the 9-bar normal operating pressure would be inappropriate.

A PN16 product would normally provide a more suitable pressure class, provided its datasheet confirms adequate working and transient-pressure capability.

Example 4: Existing Mixed-Material Pipeline

Pipe 1: Old cast iron
Pipe 2: Ductile iron replacement pipe
Operating pressure: 6 bar

Pressure alone does not determine the coupling.

The installer should also measure both outside diameters and confirm that the universal coupling's tolerance range covers both pipes.

In this case, an appropriately sized PN10 product may be sufficient if all other operating conditions comply.

Quick Selection Table

Important: This table is for initial selection only. The manufacturer's stated working pressure for the exact coupling type and DN size takes priority.

Common Mistakes When Buying PN10 or PN16 Universal Couplings

Mistake 1: Selecting Only by DN

“DN200 PN16” is not enough information.

Always provide actual pipe OD and pipe material.

Mistake 2: Ignoring Pressure Surges

An 8-bar pipeline does not necessarily mean PN10 is appropriate if pump operation can generate 12-bar transients.

Mistake 3: Assuming PN16 Automatically Means 16-Bar Continuous Service

Check the datasheet.

The pressure rating can vary according to product configuration, size, temperature and application.

Mistake 4: Ignoring Gasket Compatibility

A mechanically strong coupling can still fail prematurely if the gasket is unsuitable for the conveyed fluid.

Mistake 5: Assuming All Universal Couplings Are Restrained

Many conventional flexible couplings provide sealing and flexibility but do not provide full axial restraint.

If the pipeline can experience axial forces, check whether:

• ·   Thrust blocks are required

• ·   External restraint is required

• ·   A restrained/gripping coupling should be used

This is particularly important around bends, tees, valves, reducers and dead ends.

Mistake 6: Buying According to Price Before Checking OD Range

A low-cost coupling that does not properly match the pipe OD can create far greater installation and leakage costs later.

What Information Should You Send When Requesting a Universal Coupling Quote?

For faster and more accurate technical selection, provide the supplier with the following information:

For mixed-material repairs, provide the details of both pipes.

Example:

Pipe A: cast iron, OD 219 mm
Pipe B: steel, OD 219.1 mm

This information can prevent incorrect sizing and reduce clarification time during procurement.

Frequently Asked Questions

Can I use a PN16 universal coupling on a PN10 pipeline?

Generally, a correctly selected PN16 coupling can be used in a lower-pressure system, provided its dimensions, pipe compatibility, gasket, installation requirements and applicable standards are suitable.

However, PN16 may cost more than necessary if the entire system is designed for significantly lower pressures.

Can I use a PN10 coupling at exactly 10 bar?

Do not make the decision from nominal pressure alone.

If normal operating pressure is already at or very close to 10 bar, there may be insufficient margin for pressure fluctuations, surges or test conditions. Check the coupling manufacturer's allowable working pressure and the pipeline's maximum design pressure.

PN16 is often more appropriate in this situation.

What if my pipeline normally operates at 8 bar but can reach 12 bar?

The maximum expected pressure should be considered.

A PN10 coupling should not be selected solely according to the 8-bar normal pressure if the system can reach 12 bar.

Does PN16 mean the coupling is stronger?

PN16 represents a higher nominal pressure class, but the actual construction difference depends on the manufacturer.

Do not assume that two visually similar couplings have identical pressure performance.

Is PN16 required for municipal water pipelines?

Not necessarily.

Municipal water systems can operate at different pressures. The appropriate coupling must be selected according to the network design pressure, surge pressure, pipe material, applicable water standards and project specification.

Can the same universal coupling connect steel and ductile iron pipes?

Often yes, provided both pipe outside diameters fall within the coupling's specified OD range and both materials are approved by the manufacturer.

Universal or wide-tolerance couplings are commonly designed for mixed-material connections, which is one reason they are frequently used in water-main repair and rehabilitation projects.

Is a PN16 coupling restrained?

Not automatically.

Pressure rating and axial restraint are separate characteristics.

If axial movement must be prevented, specify a restrained or gripping universal coupling rather than assuming a standard flexible coupling provides restraint.

Final Decision: PN10 or PN16?

The choice between PN10 and PN16 should never be based on nominal pipeline pressure alone.

Use this sequence:

1. Determine maximum operating pressure.
Do not rely only on normal pressure.

2. Calculate or obtain expected surge pressure.
Pay particular attention to pumped pipelines.

3. Check hydrostatic test requirements.

4. Confirm actual pipe OD and material.

5. Check operating temperature and medium.

6. Select the correct gasket material.

7. Determine whether axial restraint is required.

8. Review the manufacturer's working-pressure rating for the exact DN size.

9. Verify project standards and approvals.

If the entire pressure envelope remains comfortably within the approved PN10 product rating, PN10 can be the economical and technically appropriate choice.

If pressure approaches or exceeds PN10 limits, surge conditions are significant, or the project specifically requires greater pressure capacity, PN16 is usually the safer specification.

Most importantly, do not treat “PN10 versus PN16” as an isolated purchasing decision. A universal coupling works as part of a complete pipeline, and its pressure rating, sealing system, OD tolerance and restraint capability must all match the actual service conditions.

For waterworks, municipal infrastructure, irrigation and industrial pipeline projects, Solid Group provides universal pipe couplings and related pipeline connection solutions with pressure classes, sizes, materials and sealing configurations available for different project requirements. Send us your pipe OD, material, working pressure, medium and quantity, and our team can help you identify a suitable coupling configuration for your application.
