PN10, PN16 or PN25 Flange Adaptor: How to Select the Right Pressure Rating

Selecting the right flange adaptor is not only about pipe diameter and flange size. For water supply pipelines, irrigation systems, fire water lines and industrial piping projects, the pressure rating is one of the most important specifications to confirm before purchasing.

Among the most common options, buyers often compare PN10, PN16 and PN25 flange adaptors. These ratings look simple, but choosing the wrong one can lead to leakage, gasket failure, bolt stress, installation mismatch or unnecessary project cost.

This guide explains what PN10, PN16 and PN25 mean, how they are used in flange adaptor selection, and how engineers, contractors and procurement teams can choose the right pressure rating for different pipeline projects.

What Does PN Mean in a Flange Adaptor?

PN stands for Nominal Pressure. In many metric flange systems, the PN number indicates the approximate pressure class of the component, usually expressed in bar under standard conditions.

For example:

For flange adaptors, the PN rating helps define the pressure capacity of the adaptor body, flange connection, gasket sealing system and bolt arrangement. However, the actual performance also depends on pipe material, flange standard, temperature, installation quality, gasket type and pipeline working conditions.

Why Pressure Rating Matters in Water Pipeline Systems

A flange adaptor is installed between a plain-ended pipe and a flanged valve, pump, dismantling joint, flow meter or other flanged equipment. It must provide both mechanical connection and reliable sealing.

If the pressure rating is too low, the adaptor may not safely handle:

• ·   Normal working pressure

• ·   Pump start-up pressure

• ·   Water hammer or surge pressure

• ·   Pressure testing on site

• ·   Long-term stress from pipeline movement

• ·   External loads from buried or above-ground installation

A properly selected PN10, PN16 or PN25 flange adaptor helps reduce leakage risk, improve pipeline safety and extend the service life of the connection.

PN10 Flange Adaptor: When Is It Suitable?

A PN10 flange adaptor is usually selected for low to medium pressure water systems where the operating pressure is relatively stable and surge risk is limited.

Common Applications of PN10 Flange Adaptors

PN10 flange adaptors are often used in:

• ·   Irrigation pipelines

• ·   Low-pressure water distribution networks

• ·   Drainage systems

• ·   HVAC water systems

• ·   Low-pressure industrial water lines

• ·   Rural water supply projects

• ·   Non-critical utility pipelines

Advantages of PN10 Flange Adaptors

The main advantage of PN10 is cost efficiency. Compared with higher pressure classes, PN10 adaptors may use lighter flange drilling and can be more economical for projects where high pressure performance is not required.

For projects with moderate working pressure, PN10 can be a practical and budget-friendly choice.

When Not to Choose PN10

A PN10 flange adaptor may not be suitable if the pipeline has frequent pressure fluctuation, strong pump surge, high test pressure, fire water requirements or a project specification that clearly requires PN16 or above.

If the pipeline’s real working pressure is close to the PN10 limit, it is usually better to select a higher rating rather than leave no safety margin.

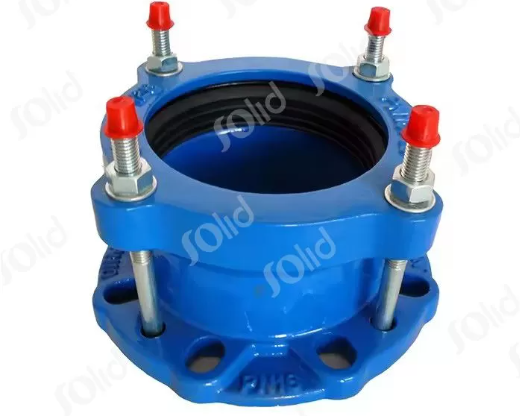

PN16 Flange Adaptor: The Most Common Choice for Water Supply Projects

A PN16 flange adaptor is one of the most widely used options in municipal water supply, sewage treatment, industrial water and general infrastructure projects.

Why PN16 Is Popular

PN16 provides a stronger pressure capacity than PN10 while still maintaining good availability and cost control. For many contractors and distributors, PN16 is a standard stock item because it covers a broad range of pipeline applications.

Common Applications of PN16 Flange Adaptors

PN16 flange adaptors are commonly used in:

• ·   Municipal drinking water pipelines

• ·   Water transmission mains

• ·   Wastewater treatment plants

• ·   Pump stations

• ·   Fire protection water systems

• ·   Industrial circulating water systems

• ·   Utility pipeline networks

• ·   Valve and pump connections

Advantages of PN16 Flange Adaptors

A PN16 flange adaptor offers a balanced solution between performance and cost. It is often selected when the project needs a reliable pressure margin but does not require the heavier specification of PN25.

For many water pipeline projects, PN16 is the default choice because it can handle common working pressure and moderate pressure surges when properly designed and installed.

PN25 Flange Adaptor: For Higher Pressure and Demanding Conditions

A PN25 flange adaptor is designed for higher pressure pipeline systems. It is usually selected when the pipeline has higher operating pressure, longer transmission distance, strong pump pressure or stricter engineering requirements.

Common Applications of PN25 Flange Adaptors

PN25 flange adaptors are often used in:

• ·   High-pressure water transmission lines

• ·   Pump discharge pipelines

• ·   Industrial process water systems

• ·   Mining water pipelines

• ·   Desalination and water treatment plants

• ·   Fire mains with higher pressure requirements

• ·   Long-distance water supply pipelines

• ·   Critical pipeline sections with higher safety requirements

Advantages of PN25 Flange Adaptors

PN25 provides a higher safety margin than PN10 and PN16. It is especially useful in pipeline sections where pressure fluctuation, water hammer or pump impact may occur.

For critical connections near pumps, valves or pressure control equipment, PN25 may be selected even when the normal operating pressure is lower than 25 bar, because the system may experience temporary pressure peaks.

When PN25 May Be Unnecessary

PN25 is not always the best choice for every project. If the pipeline is a low-pressure system, using PN25 may increase cost without adding practical value. It may also require matching PN25 flanges, bolts and gaskets, so the entire connection system must be considered.

PN10 vs PN16 vs PN25 Flange Adaptor: Quick Comparison

How to Select the Right Flange Adaptor Pressure Rating

Choosing between PN10, PN16 and PN25 should not be based on price alone. The right decision should consider the complete pipeline system.

1. Confirm the Normal Working Pressure

Start with the actual operating pressure of the pipeline. The flange adaptor pressure rating should always be higher than the system’s normal working pressure.

For example, if the pipeline normally operates at 8 bar, PN10 may seem acceptable. However, if the system has pressure surges or high test pressure, PN16 may be a safer option.

2. Consider Surge Pressure and Water Hammer

Water hammer can create temporary pressure peaks much higher than the normal working pressure. This is common in pump stations, long-distance pipelines, fast-closing valves and fire water systems.

If surge pressure is significant, do not select a flange adaptor based only on normal operating pressure. Choose a rating that can handle both continuous pressure and temporary pressure peaks.

3. Check the Pipeline Test Pressure

Many pipeline projects require hydrostatic pressure testing before commissioning. The test pressure may be higher than the working pressure.

Before ordering flange adaptors, confirm:

• ·   Working pressure

• ·   Test pressure

• ·   Test duration

• ·   Project acceptance standard

• ·   Safety factor required by the engineer

If the test pressure exceeds the adaptor’s suitable range, a higher PN rating should be selected.

4. Match the Flange Drilling Standard

The pressure rating is not only about strength. It also affects flange dimensions, drilling pattern, bolt size and gasket seating.

When selecting a flange adaptor, confirm that the flange drilling matches the connected equipment, such as:

• ·   Flanged valve

• ·   Butterfly valve

• ·   Gate valve

• ·   Pump flange

• ·   Flow meter

• ·   Dismantling joint

• ·   Existing pipeline flange

A PN16 flange adaptor should be connected to compatible PN16 flange drilling unless the adaptor is specifically designed with universal drilling. Always confirm the flange standard before purchase.

5. Check Pipe Material and Outside Diameter

Flange adaptors are commonly used with ductile iron pipe, steel pipe, PVC pipe, HDPE pipe and asbestos cement replacement pipelines. Different pipe materials may have different outside diameters, stiffness and surface conditions.

Before selecting the pressure rating, confirm:

• ·   Pipe material

• ·   Pipe outside diameter

• ·   Pipe wall thickness

• ·   Pipe surface condition

• ·   Allowable pipe movement

• ·   Whether restraint is required

A correctly rated adaptor can still leak if the pipe OD range or gasket design is not suitable.

6. Decide Whether Restrained or Non-Restrained Type Is Needed

Pressure rating and restraint function are different considerations.

A non-restrained flange adaptor provides sealing and connection but does not prevent pipe pull-out under axial force. A restrained flange adaptor includes mechanical gripping or anchoring features to resist axial movement.

For buried pipelines, pump stations, slopes, bends, valve chambers or areas with thrust force, a restrained flange adaptor may be required. In these cases, selecting PN16 or PN25 alone is not enough; the adaptor also needs the correct anti-pull-out design.

7. Consider the Installation Environment

Installation conditions can influence the required specification. For example:

• ·   Buried pipelines need corrosion-resistant coating.

• ·   Drinking water pipelines need suitable gasket and coating materials.

• ·   Coastal projects may require stronger anti-corrosion protection.

• ·   Pump rooms may need easy maintenance and dismantling.

• ·   High-vibration systems may need stronger mechanical stability.

For water supply pipelines, ductile iron or steel body flange adaptors with epoxy coating and EPDM gasket are commonly specified.

Common Mistakes When Choosing PN10, PN16 or PN25 Flange Adaptors

Mistake 1: Choosing Only by Pipe Diameter

DN size is important, but it does not define pressure capacity. A DN300 PN10 flange adaptor and a DN300 PN16 flange adaptor may not have the same flange drilling or pressure performance.

Always confirm both DN size and PN rating.

Mistake 2: Ignoring Surge Pressure

Some buyers only provide normal working pressure and ignore water hammer. This can lead to under-specified products, especially near pump outlets and control valves.

Mistake 3: Mixing Different Flange Standards

PN10, PN16 and PN25 flanges may have different drilling dimensions depending on size and standard. If the adaptor flange does not match the valve or equipment flange, installation may fail on site.

Mistake 4: Assuming Higher PN Is Always Better

A higher rating offers a higher pressure margin, but it may also increase cost and require matching components. The best choice is not always the highest PN rating, but the rating that matches the system design.

Mistake 5: Forgetting Gasket and Coating Requirements

For drinking water projects, the gasket and coating must be suitable for potable water use. Pressure rating alone does not guarantee safe water contact or corrosion resistance.

Recommended Selection Guide

For most projects, the following guide can help during early selection:

This table is only a general guide. Final selection should be based on project drawings, engineering specifications and local pipeline standards.

What Information Should You Provide When Ordering?

To get the correct PN10, PN16 or PN25 flange adaptor, provide the supplier with complete project information.

Recommended inquiry details include:

• ·   Pipe material

• ·   Pipe outside diameter

• ·   Nominal diameter

• ·   Required pressure rating: PN10, PN16 or PN25

• ·   Working pressure

• ·   Test pressure

• ·   Flange standard and drilling requirement

• ·   Restrained or non-restrained type

• ·   Gasket material

• ·   Coating requirement

• ·   Application: drinking water, wastewater, irrigation, fire water or industrial water

• ·   Quantity and installation environment

The more complete the information, the easier it is to avoid wrong selection, installation delay and unnecessary replacement cost.

Conclusion

Choosing between a PN10, PN16 or PN25 flange adaptor depends on much more than the number printed in the specification. The right pressure rating should match the pipeline’s working pressure, surge pressure, test pressure, flange drilling, pipe material and installation conditions.

In general, PN10 is suitable for low-pressure and stable systems, PN16 is the most common choice for municipal and general water pipeline projects, and PN25 is recommended for higher pressure or more demanding applications.

For safe and reliable pipeline installation, always evaluate the complete connection system—not only the flange adaptor body, but also the flange standard, gasket, bolts, coating and restraint requirement.

If you are not sure which pressure rating is suitable for your project, send your pipe size, pipe material, working pressure and flange standard to our technical team. We can help you select the right flange adaptor for your water supply, irrigation, wastewater or industrial pipeline project.

FAQ: PN10, PN16 and PN25 Flange Adaptors

1. What is the difference between PN10, PN16 and PN25 flange adaptors?

The main difference is the nominal pressure rating. PN10 is commonly used for lower pressure systems, PN16 is widely used for general water pipeline projects, and PN25 is selected for higher pressure or more demanding pipeline conditions.

2. Is PN16 better than PN10?

PN16 has a higher pressure rating than PN10, but that does not mean it is always the better choice. If the pipeline is low pressure and stable, PN10 may be enough. If the system has higher working pressure or pressure fluctuation, PN16 is usually safer.

3. Can I use a PN25 flange adaptor on a PN16 pipeline?

It may be possible only if the flange drilling, gasket, bolts and connected equipment are compatible. The whole connection system must match. Do not select PN25 only by pressure rating without checking flange dimensions.

4. Which pressure rating is most common for water supply pipelines?

PN16 is commonly used in many municipal water supply and general pipeline projects because it provides a good balance between pressure capacity, cost and availability.

5. Is PN10 suitable for drinking water pipelines?

PN10 can be used for low-pressure drinking water pipelines if the working pressure, test pressure and project specification allow it. The adaptor should also use suitable coating and gasket materials for potable water service.

6. Do flange adaptors need to match the valve flange pressure rating?

Yes. The flange adaptor should match the connected valve or equipment flange standard and drilling pattern. Pressure rating, bolt holes, gasket surface and flange dimensions must be checked before installation.

7. When should I choose PN25 flange adaptors?

PN25 flange adaptors are recommended for higher pressure pipelines, pump discharge lines, long-distance water transmission, industrial systems or critical sections where a higher safety margin is required.

8. What is the most important information when buying flange adaptors?

The most important details are pipe outside diameter, pipe material, DN size, pressure rating, flange standard, working pressure, test pressure, gasket requirement and whether the adaptor needs to be restrained or non-restrained.
