Pipes and Clamps: Understanding Their Role in Secure and Stable Piping Systems

The Importance of Pipe Clamps in Piping Systems

Pipe clamps are crucial components in any piping system, designed to hold pipes firmly in place, prevent unwanted movement, and reduce stress on joints and fittings. Without proper clamping, pipes may shift due to vibration, temperature variations, or pressure changes—potentially causing leaks, misalignment, or premature system failure. From residential plumbing to large-scale industrial and infrastructure projects, choosing the right type of pipe clamp is essential to ensure long-term safety, stability, and performance.

Common Types of Pipe Clamps and Their Applications

Standard Pipe Clamps

Standard pipe clamps are versatile support components designed to hold pipes securely in a fixed position. They are commonly used in plumbing, heating, and mechanical systems, providing a simple yet reliable method for securing pipes of various diameters. Suitable for both horizontal and vertical installations, these clamps are the preferred choice for general-purpose applications.

Cushioned Pipe Clamps

Cushioned pipe clamps include a rubber or elastomer insert that minimizes vibration, noise, and abrasion between the pipe and the clamp. This design makes them ideal for HVAC systems, refrigeration lines, and mechanical installations where noise reduction and vibration control are essential. The cushioning also helps accommodate minor thermal expansion and contraction, extending the lifespan of both the clamp and the pipe.

U-Bolt Clamps

U-bolt clamps consist of a U-shaped bolt with threaded ends and a matching mounting plate or saddle. They are excellent for fastening pipes to round, flat, or irregular surfaces and are widely used in automotive exhaust systems, marine applications, and industrial piping where a firm, secure grip is required.

Two-Bolt Pipe Clamps

Two-bolt pipe clamps provide a secure and stable hold, particularly for medium- and large-diameter pipes. Their bolted design allows for easy installation, adjustment, and removal, making them ideal for systems requiring frequent maintenance. These clamps are often used in water treatment plants, chemical facilities, and industrial piping networks.

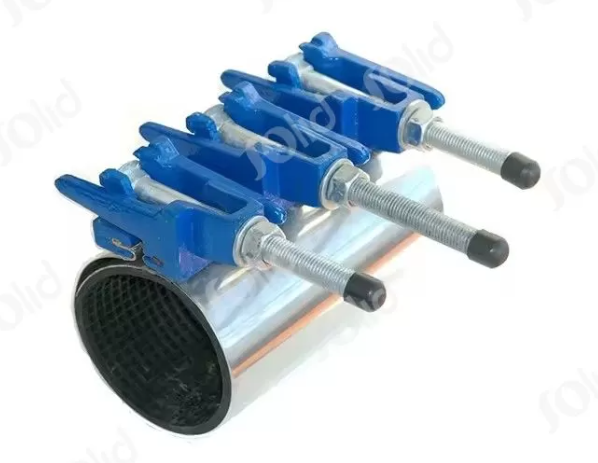

Heavy-Duty Industrial Clamps

Heavy-duty pipe clamps are built to withstand high loads, high pressures, and harsh environments. Constructed from materials such as stainless steel, galvanized steel, or ductile iron, they deliver exceptional strength and corrosion resistance. These clamps are commonly used in oil and gas pipelines, mining operations, and large-scale manufacturing facilities where superior performance and reliability are critical.

Key Factors to Consider When Selecting Pipe Clamps

Material Compatibility

Matching Clamp Material to Pipe Material

Choosing a clamp material that is compatible with the pipe material helps prevent galvanic corrosion and extends the lifespan of the system. For instance, stainless steel clamps are ideal for stainless steel pipes, while copper or brass-alloy clamps pair well with copper pipes. Proper material matching ensures both mechanical stability and long-term corrosion resistance.

Impact of Thermal Expansion

Pipes made from materials such as plastic, copper, or aluminum expand and contract with temperature changes. Selecting clamps with built-in cushioning, flexible inserts, or expansion allowances accommodates this movement, reducing stress on the piping and preventing fractures, warping, or leaks.

Pipe Diameter and Load Capacity

The diameter of the pipe determines the appropriate clamp size, while the clamp must also be rated to support the pipe’s weight and the operational load. This is especially critical for high-pressure systems or pipes carrying dense fluids. Manufacturers typically provide load capacity charts to ensure that the selected clamp can safely handle the pipe and its contents.

Environmental Conditions and Corrosion Resistance

Clamps for Indoor vs. Outdoor Applications

The environment where a pipe clamp is installed directly influences the material and finish selection. Indoor installations generally require standard corrosion-resistant finishes, sufficient to protect against moisture and routine wear. Outdoor applications, however, are exposed to rain, UV radiation, temperature fluctuations, and other environmental stressors. For these conditions, clamps made from stainless steel or those with weatherproof coatings provide extended durability and performance.

Protective Coatings and Treatments

To enhance corrosion resistance, clamps can undergo various protective treatments, including zinc plating, galvanization, and powder coating. In highly corrosive environments—such as coastal areas with salt-laden air or chemical processing plants—specialized coatings or high-grade alloys are recommended to prevent premature degradation and ensure long-term reliability.

Compliance with Industry Standards

Selecting clamps that meet recognized standards, such as ASTM, DIN, or ISO, ensures that the product adheres to performance, safety, and quality requirements. Standard-compliant clamps simplify project approvals, provide confidence in reliability, and maintain consistency across installations.

Best Practices for Installing Pipe Clamps

Proper Spacing Between Clamps

The spacing of pipe clamps depends on factors such as pipe material, diameter, and operating conditions. Excessive spacing can cause sagging, misalignment, or undue stress on joints, while overly close spacing can be unnecessary and increase costs. Always follow industry guidelines or manufacturer recommendations to determine optimal clamp intervals.

Tightening Techniques and Torque Recommendations

Correct tightening is crucial for pipe integrity. Over-tightening can damage pipes, especially those made from softer materials like PVC or copper, whereas under-tightening may allow unwanted movement. Always adhere to the torque specifications provided by the manufacturer to secure the pipe without compromising its structure.

Avoiding Over-Clamping to Prevent Pipe Damage

Excessive clamping pressure can lead to cracks, deformation, or restricted flow. Using cushioned clamps or inserts can distribute pressure evenly, protecting the pipe while maintaining a secure hold.

Regular Inspection and Maintenance

Pipe clamps may loosen over time due to vibration, thermal expansion, or environmental factors. Regular inspection ensures clamps remain tight, aligned, and corrosion-free. Replace any worn or damaged clamps promptly to maintain system stability and prevent costly failures.

Maximizing Durability and Stability in Piping Systems

Pipe clamps may appear small, but they play a critical role in maintaining a stable, efficient, and safe piping system. Selecting the right type, ensuring material compatibility, and following proper installation and maintenance practices can significantly extend the lifespan of your piping infrastructure while minimizing the risk of costly repairs or downtime. Investing in high-quality clamps and adhering to correct installation techniques ensures a more reliable and long-lasting system.

Both pipes and clamps are essential for building secure and efficient piping networks, whether in residential plumbing, industrial installations, or large-scale infrastructure projects. Choosing the right materials, sizes, and configurations supports proper alignment, prevents leaks, and maintains structural stability. Understanding the different types of clamps, their installation methods, and how they interact with various pipe materials improves overall system performance and durability.
