Pipe Thermal Expansion: How Expansion Joints Prevent Flange Failures

Understanding Pipe Thermal Expansion in Industrial Systems

In industrial piping systems, thermal expansion is a critical factor that must be carefully managed. When fluids such as steam, hot water, or chemicals flow through pipelines, temperature variations cause the pipe material to expand or contract. If left unaddressed, this expansion generates significant axial and lateral stresses, which can lead to flange failures, pipe buckling, leaks, and mechanical fatigue. Flange failures, in particular, are a costly and dangerous consequence, as they compromise the integrity of connections and can lead to catastrophic system downtime.

The rate of expansion in pipes is directly influenced by the coefficient of thermal expansion (CTE) of the pipe material. Metals such as carbon steel, stainless steel, and copper exhibit different expansion characteristics. For example, carbon steel has a CTE of approximately 12 x 10^-6 /°C, which translates to measurable expansion over long pipe runs. In systems spanning tens or hundreds of meters, even minor temperature changes can produce displacements in the order of centimeters.

The Role of Expansion Joints in Preventing Flange Failures

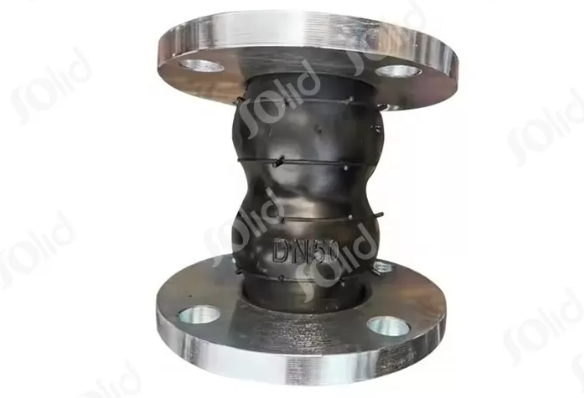

Expansion joints are mechanical devices installed in piping systems specifically to absorb thermal movements and mitigate stress on flanges and other components. By allowing controlled axial, lateral, and angular movements, expansion joints prevent overloading of bolted connections, reducing the likelihood of flange cracks, gasket failures, and leaks.

There are several types of expansion joints utilized in industrial piping:

• ·  Bellows Expansion Joints: Flexible metal bellows that accommodate axial, lateral, and angular movements while maintaining pressure integrity.

• ·  Slip-Type Expansion Joints: Allow axial movement via a sliding sleeve mechanism, often combined with a pressure-retaining bushing.

• ·  Gimbal Expansion Joints: Designed to absorb angular rotation in multiple planes, ideal for piping systems with complex alignment requirements.

• ·  Universal Expansion Joints: Comprised of multiple bellows with hinges, these joints can accommodate significant axial and lateral displacement simultaneously.

Each type of expansion joint is selected based on pipe diameter, operating temperature, system pressure, and expected movement. Correct selection and placement are essential to ensure that thermal stresses are adequately mitigated.

Mechanics of Flange Stress and Thermal Expansion

Flanges serve as the critical connection points between pipe segments, valves, and equipment. Thermal expansion induces axial forces along the pipe, which translate directly into flange stress if unmitigated. Over time, repeated stress cycles can lead to:

• ·  Bolt Overloading: Excessive tension in flange bolts causing fatigue or fracture.

• ·  Gasket Extrusion: Compression or deformation of gaskets, resulting in leaks.

• ·  Flange Distortion: Warping or misalignment that reduces sealing efficiency.

• ·  Pipe Buckling Near Flanges: Localized bending that further stresses joints.

By integrating expansion joints, these forces are absorbed and distributed, allowing flanges to maintain their structural integrity. The axial flexibility of bellows joints, for example, ensures that longitudinal expansion does not translate into bolt overloading.

Design Considerations for Expansion Joints

When designing piping systems with expansion joints, several critical parameters must be evaluated:

1. Thermal Movement Calculation: Determine the expected linear expansion using the formula:

$$\Delta L = \alpha \times L \times \Delta T$$

Where ΔL is the pipe elongation, α is the CTE, L is the pipe length, and ΔT is the temperature change. Accurate calculation ensures the expansion joint can accommodate system movement.

2. Pressure and Temperature Ratings: Expansion joints must withstand system pressures and temperatures without material failure or excessive deformation.

3. Material Selection: Metals such as stainless steel offer corrosion resistance and high fatigue strength, while elastomeric joints provide flexibility for lower-temperature applications.

4. Anchor and Guide Placement: Proper placement of anchors, guides, and restraints ensures that movement occurs in a controlled direction, preventing torsional stress and flange misalignment.

5. Cycle Fatigue Analysis: Systems subject to frequent thermal cycling must consider bellows fatigue life, selecting designs that endure thousands of expansion-contraction cycles.

Installation Best Practices for Flange Protection

Even the best expansion joints can fail if improperly installed. Key practices include:

• ·  Alignment Checks: Ensure pipe segments are correctly aligned before tightening flange bolts. Misalignment can negate the flexibility of expansion joints.

• ·  Anchor Reinforcement: Use solid anchors to prevent unwanted pipe movement that could overload flanges.

• ·  Pressure Testing: Conduct hydrostatic or pneumatic testing to verify system integrity under operational pressure.

• ·  Periodic Inspection: Check for bellows deformation, corrosion, and gasket wear to prevent long-term failures.

By following these practices, we maximize the lifespan of flanges and joints while maintaining system reliability.

Benefits of Expansion Joints Beyond Flange Protection

While the primary function of expansion joints is flange protection, their benefits extend to overall system performance:

• ·  Vibration Dampening: Bellows and flexible joints absorb mechanical vibrations, protecting sensitive equipment.

• ·  Noise Reduction: Expansion joints reduce noise caused by fluid flow and pipe vibration.

• ·  System Longevity: By minimizing stress concentrations, expansion joints extend the life of pipes, valves, and flanges.

• ·  Safety Compliance: Properly installed joints help meet regulatory standards for pressure piping systems.

Conclusion

Effectively managing pipe thermal expansion is crucial to prevent flange failures in any piping system. By selecting the correct expansion joints, calculating thermal movements accurately, and following best installation practices, industrial operations can maintain system integrity, reduce maintenance costs, and improve safety. The combination of engineering precision, high-quality materials, and strategic joint placement ensures that flanges remain secure under all operational conditions.
