Is a Dismantling Joint the Same as an Expansion Joint?

The terms dismantling joints and expansion joints are often used interchangeably during pipeline installation or maintenance, but they refer to distinct components with different functions. While both enhance the flexibility and overall durability of piping systems, their purposes are not the same. Dismantling joints facilitate easy installation and removal of valves and other pipeline equipment, whereas expansion joints are designed to absorb thermal expansion, vibration, or movement. Understanding these differences is key to optimizing pipeline performance and ensuring a more reliable, efficient system.

What is a Dismantling Joint?

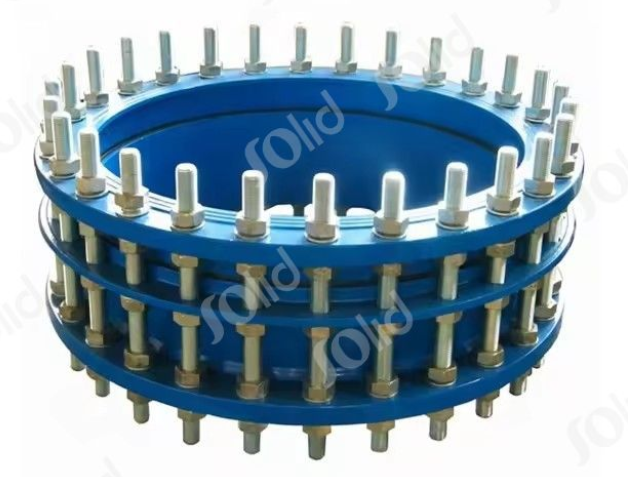

A dismantling joint is a vital and versatile component used in pipeline systems to facilitate the easy connection and disassembly of flanged pipes or fittings. Designed to simplify maintenance and modifications, dismantling joints allow sections of the pipeline to be removed or replaced without disturbing adjacent components. Solid’s DI Dismantling Joints feature adjustable lengths, enabling on-site flexibility to meet specific installation requirements. This adaptability makes them suitable for use with various piping materials, including steel, iron, and plastic.

Key Functions of Dismantling Joints:

Simplified Installation and Maintenance:

Dismantling joints allow quick attachment and removal of pipeline sections, making them essential when replacing valves, fittings, or other components without dismantling the entire system.

Adjustable Length:

The length adjustability accommodates site-specific variations and complex layouts, reducing installation time and associated labor costs.

Wide Range of Applications:

Commonly used in water and wastewater systems, dismantling joints are ideal for pipelines requiring frequent extension, maintenance, or realignment.

What Is an Expansion Joint?

An expansion joint is a crucial component in pipeline systems, designed to accommodate the expansion and contraction of pipes caused by temperature changes, pressure fluctuations, or external movement. Unlike dismantling joints, which assist in the assembly and disassembly of components, expansion joints primarily enhance pipeline flexibility to counteract mechanical and thermal stresses.

Key Functions of Expansion Joints:

Absorbing Thermal Expansion and Contraction:

As pipelines heat up or cool down, the materials naturally expand or contract. Expansion joints absorb this movement, maintaining the system’s integrity and preventing structural damage.

Vibration Dampening:

Expansion joints reduce vibrations generated by pumps, compressors, or other equipment, helping protect both the pipeline and connected machinery from wear and fatigue.

Managing Pressure Fluctuations:

In systems where pressure levels vary, expansion joints introduce controlled flexibility, relieving stress on critical sections and enhancing the overall durability of the pipeline.

Key Differences Between Dismantling Joints and Expansion Joints

Although both dismantling joints and expansion joints contribute to improving the efficiency and lifespan of pipeline systems, they serve distinct functions. Understanding these differences helps ensure the right joint is chosen for each application.

Purpose:

Dismantling Joints are primarily used to facilitate maintenance by allowing easy disconnection and reconnection of pipeline sections, enabling quick access for repairs and adjustments.

Expansion Joints are designed to absorb pipe movements—such as thermal expansion, contraction, and vibrations—to protect the system from damage caused by pressure changes or environmental forces.

Flexibility:

Dismantling Joints offer adjustable lengths to accommodate variations in pipeline dimensions, simplifying installation and maintenance.

Expansion Joints provide flexibility mainly to absorb mechanical and thermal stresses, but they do not allow significant length adjustments like dismantling joints.

Installation and Maintenance:

Dismantling Joints ease installation and maintenance, especially in systems requiring frequent modifications or repairs, as they can be adjusted on-site.

Expansion Joints are installed for long-term stability under fluctuating temperatures and pressures, typically requiring minimal maintenance unless subjected to unusual stress or movement.

When to Use a Dismantling Joint vs. an Expansion Joint

The choice between a dismantling joint and an expansion joint depends on the specific requirements of your pipeline system:

Dismantling Joints: These are essential in systems where regular maintenance, modification, or easy disassembly is needed. For example, in water distribution networks or pipelines with frequent valve replacements, dismantling joints simplify the process by allowing quick removal and reconnection of components.

Expansion Joints: These are typically used in pipelines exposed to high temperatures or harsh environmental conditions, such as those in power plants, chemical processing, or water treatment facilities. Expansion joints help absorb thermal expansion, pressure variations, and vibrations, protecting the system from stress and potential damage.

Conclusion: Choosing the Right Joint for Your Pipeline System

Both dismantling joints and expansion joints are vital for maintaining pipeline integrity, but they serve distinct purposes. Dismantling joints facilitate maintenance, modifications, and easy disassembly, whereas expansion joints accommodate thermal expansion, pressure changes, and vibrations. Selecting the appropriate joint depends on the specific needs and operating conditions of your pipeline system.
