How Universal Flange Adaptor and Universal Coupling Work?

May. 15, 2025

Introduction


Universal flange adaptors and universal couplings play a vital role in modern piping and mechanical systems. Whether you’re routing fluids in industrial plants or transmitting torque in rotating equipment, these two components ensure flexibility, alignment, and reliable connection. In this article, we’ll explore what universal flange adaptors and universal couplings are, how they work, their key advantages, and typical applications across industries.


What Is a Universal Flange Adaptor?


A universal flange adaptor is a mechanical connector that allows two pipes or pieces of equipment with differing flange standards, sizes, or pressure ratings to be joined together seamlessly. Instead of replacing existing flanges to achieve compatibility, you install a flange adaptor which accommodates the mismatch. This reduces downtime, labor, and scrap, especially in retrofit or repair scenarios.


How Universal Flange Adaptors Work


Universal flange adaptors consist of a body with bolt holes arranged in multiple patterns, matching a variety of industry-standard flanges (e.g., ANSI, DIN, JIS). The adaptor is bolted onto one flange and then a mating flange or pipe stub with a different bolt pattern is bolted onto the opposite side. A resilient gasket between the two faces ensures a leak-free seal under operating pressure. The key working principles are:


  • Dual bolt patterns allow cross-flange compatibility.

  • Interchangeable gasket surfaces accommodate different sealing requirements (raised face, flat face).

  • High-strength materials (carbon steel, stainless steel) ensure durability under varied temperatures and pressures.


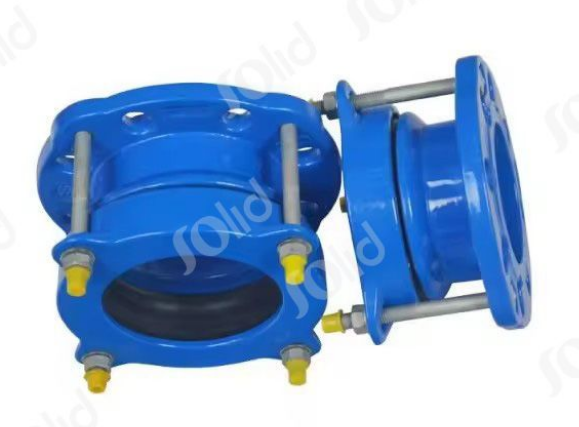

Universal Flange Adaptors and Couplings


What Is a Universal Coupling?


A universal coupling (also known as a universal joint or U-joint) is a mechanical device that connects two rotating shafts, allowing torque transmission even when the shafts are misaligned. Unlike rigid couplings that require perfect shaft alignment, universal couplings compensate for angular displacement, axial movement, and slight parallel misalignment.


How Universal Couplings Work


Universal couplings operate on the principle of intersecting rotation axes. The most common design comprises two yokes, each attached to a shaft, and a cross-shaped spider (trunnion) with needle bearings that fits between the yokes. As one shaft (driving) rotates, the spider transfers motion through its bearings to the driven yoke, which turns the second shaft. Key functional aspects include:


  • Angular compensation up to specified degrees (e.g., ±15°) without binding.

  • Constant velocity options (double Cardan joints) to even out speed fluctuations.

  • Lubrication ports for maintenance of needle bearings, extending service life.


Key Advantages of Universal Flange Adaptors and Couplings


  1. Flexibility in Installation

    Universal flange adaptors eliminate the need to replace or realign flanges, saving time and cost. Universal couplings allow for non-linear shaft layouts without resorting to complex alignment procedures.

  2. Reduced Downtime

    Rapid installation of adaptors and quick-connect couplings make maintenance and emergency repairs faster.

  3. Versatility

    One adaptor can match multiple flange standards; one coupling accommodates varying misalignment angles.

  4. Cost-Effectiveness

    Minimizes spare parts inventory—fewer flange blanks and coupling types needed.

  5. Enhanced System Reliability

    Proper sealing and smooth torque transfer reduce risk of leaks and mechanical failures.


Typical Applications


  • Water and Wastewater Treatment: Retrofit existing pipelines with upgraded materials without cutting out old flanges.

  • Oil & Gas: Connect high-pressure equipment with mismatched flange ratings for testing and maintenance.

  • Power Generation: Align turbine and generator shafts with universal couplings to handle thermal expansion.

  • Mining and Minerals: Heavy-duty universal couplings transfer torque in conveyor drives under harsh conditions.

  • HVAC Systems: Adapt duct flanges of various standards when integrating new chillers or pumps.


Design Considerations and Selection Tips


When choosing a universal flange adaptor:


  • Verify flange standards and pressure classes on both ends.

  • Confirm gasket type compatibility (e.g., EPDM, PTFE).

  • Ensure material matches fluid media and temperature.


When selecting a universal coupling:


  • Calculate maximum misalignment angle and torque requirements.

  • Decide between single-joint (simpler, lower cost) or double-joint (constant velocity) designs.

  • Consider bearing lubrication intervals and protective boots for contaminated environments.


Maintenance Best Practices


Universal flange adaptors require periodic gasket inspection and bolt-torque checks to maintain sealing integrity. Universal couplings need regular lubrication of the spider bearings and inspection of seals or boots to prevent ingress of dirt or moisture. Establish a preventive maintenance schedule based on operating hours and environmental severity.


Conclusion


Universal flange adaptors and universal couplings are indispensable in ensuring flexibility, reliability, and cost savings across piping and mechanical drive systems. By understanding their operating principles, benefits, and application nuances, engineers can specify the right components and ensure long-term performance.


For expert guidance on selecting the perfect universal flange adaptors and universal couplings for your project, contact us, your trusted supplier, today. Let our technical team help you optimize
