How to Match Flange Adaptors with Different Pipe Materials and Diameters

Flange adaptors are widely used to connect plain-ended pipes to flanged valves, pumps, meters, hydrants, strainers, and other pipeline equipment. Although the component appears simple, choosing the correct flange adaptor requires more than matching the nominal pipe size printed on a drawing.

Pipe material, actual outside diameter, pressure rating, flange drilling, gasket material, pipe movement, and pull-out forces all affect whether the connection will remain secure and leak-free.

One of the most common selection mistakes is assuming that two pipes marked with the same nominal diameter have the same outside diameter. In practice, ductile iron, steel, PVC, PE, asbestos cement, and other pipe systems may follow different dimensional standards. A DN200 pipe from one material group may not have exactly the same outside diameter as a DN200 pipe made according to another standard. Solid Joints also identifies incorrect outside-diameter matching as a common cause of flange adaptor installation problems.

This guide explains how to match flange adaptors with different pipe materials and diameters more accurately.

Understand What a Flange Adaptor Actually Does

A flange adaptor normally connects the plain end of a pipe to a flanged component. One side grips and seals around the pipe outside diameter, while the other side provides a drilled flange for connection to a valve, pump, fitting, or another flanged section.

A standard flange adaptor does not necessarily reduce or increase the pipeline bore. If the pipe and the mating flange have different nominal sizes, a reducer, reducing flange, or specially designed transition fitting may also be required.

For example, a universal flange adaptor may accept a range of pipe outside diameters, but this does not mean it can automatically connect a DN150 pipeline to a DN200 valve. The adaptor’s pipe-end range, nominal bore, flange size, and bolt drilling must all be checked separately.

Match the Actual Pipe Outside Diameter, Not Only the DN Size

The most important dimension when selecting the pipe end of a flange adaptor is the actual outside diameter, often abbreviated as OD.

Nominal diameter, or DN, is a convenient system classification. It does not always represent the exact measured pipe diameter. Pipes with the same DN marking may have different outside diameters because of:

• ·   Pipe material

• ·   Manufacturing standard

• ·   Wall thickness series

• ·   SDR rating

• ·   Regional specifications

• ·   Pipe age and manufacturing tolerance

• ·   Existing coatings, corrosion, or surface deposits

Before ordering a flange adaptor, measure the pipe outside diameter at several points around the circumference. This is particularly important when working with old pipelines, repair projects, or pipes whose original standard cannot be confirmed.

The measured minimum and maximum diameters should both fall within the adaptor’s published OD range. Choosing an adaptor at the extreme limit of its tolerance should be avoided unless the manufacturer confirms suitability.

For an existing pipeline, buyers should provide the supplier with the actual measured OD rather than only stating “DN300 steel pipe” or “8-inch PVC pipe.”

Matching Flange Adaptors with Ductile Iron Pipes

Ductile iron pipe is commonly used in municipal water distribution, wastewater treatment, fire protection, pump stations, and large infrastructure networks. It has high mechanical strength and is suitable for demanding pressure conditions.

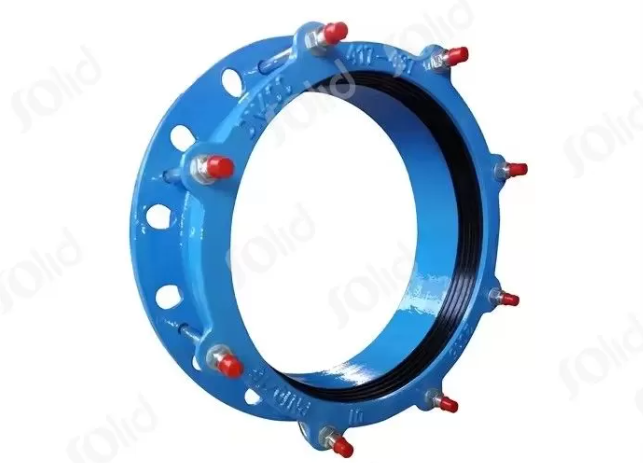

A flexible flange adaptor designed for ductile iron pipe can provide a practical transition from a plain-ended DI pipe to a flanged valve or fitting. The sealing ring is compressed around the pipe surface when the bolts are tightened, creating a watertight mechanical connection.

When selecting a flange adaptor for ductile iron pipe, check:

• ·   Actual pipe outside diameter

• ·   Pipe dimensional standard

• ·   Required PN pressure rating

• ·   Flange drilling standard

• ·   Permitted angular deflection

• ·   Coating and corrosion protection

• ·   Gasket compatibility with the transported medium

Ductile iron pipelines are relatively rigid, but small amounts of installation misalignment may still occur. A flexible adaptor can help accommodate limited angular deviation, although it should not be used to correct major alignment errors.

For buried water networks, fusion-bonded epoxy coating and corrosion-resistant bolts may be preferred, especially in aggressive soil conditions.

Matching Flange Adaptors with Steel Pipes

Steel pipes are used in water transmission, industrial cooling systems, fire protection, power plants, mining, and process pipelines. However, steel pipe dimensions vary significantly according to the selected pipe standard and wall schedule.

The flange adaptor must match the pipe’s outside diameter—not its internal diameter or wall thickness alone.

Before selection, confirm:

• ·   Steel pipe OD

• ·   Wall thickness or schedule

• ·   Seamless or welded construction

• ·   Surface coating thickness

• ·   Operating and surge pressure

• ·   Whether axial restraint is provided elsewhere

A standard non-restrained flange adaptor creates a seal but may not prevent the steel pipe from moving axially under internal pressure. Thrust blocks, anchors, restrained joints, or another engineered restraint system may therefore be necessary.

Paint, rust, weld seams, and damaged coatings should also be examined before installation. Heavy weld beads or an uneven pipe surface can prevent uniform gasket compression and increase the risk of leakage.

Matching Flange Adaptors with PVC or uPVC Pipes

PVC and uPVC pipes are lightweight, corrosion-resistant, and widely used in irrigation, water treatment, drainage, and low- to medium-pressure water systems.

Unlike metal pipe, PVC is comparatively rigid but can be damaged by concentrated mechanical stress. The flange adaptor should therefore provide even gasket compression without excessive bolt torque.

Important selection factors include:

• ·   Exact PVC pipe OD

• ·   PVC pressure class

• ·   Pipe wall thickness

• ·   Operating temperature

• ·   Gasket material

• ·   Manufacturer-approved torque

• ·   External pipe support

A quick adaptor designed for PVC can simplify the transition from plain-ended PVC pipe to flanged equipment. However, the installer must avoid over-tightening the bolts. Excessive compression can deform the pipe wall, damage the gasket, or create stress points that later lead to cracking.

The connected valve or pump should also be independently supported. A plastic pipe should not carry the weight of heavy flanged equipment.

Matching Flange Adaptors with PE or HDPE Pipes

PE and HDPE pipes behave differently from rigid metal and PVC pipes. Polyethylene is flexible, has a relatively smooth surface, and may expand, contract, or move under pressure and temperature changes.

The pipe’s SDR rating is particularly important. SDR describes the relationship between outside diameter and wall thickness. Two PE pipes with the same outside diameter may have different wall thicknesses and pressure capabilities.

For PE pipe applications, buyers should confirm:

• ·   Pipe outside diameter

• ·   SDR rating

• ·   PE material grade

• ·   Working pressure

• ·   Maximum surge pressure

• ·   Operating temperature

• ·   Expected axial movement

• ·   Whether an internal support liner is required

• ·   Whether a restrained connection is necessary

A standard sealing adaptor may not provide sufficient pull-out resistance for an exposed, unsupported, or pressurized PE pipeline. In these situations, a restrained flange adaptor for PE is generally the safer option.

A restrained adaptor includes a gripping mechanism that helps prevent axial pipe movement. It is especially useful where pressure thrust, vibration, ground movement, or thermal expansion could pull the pipe away from the connection.

Solid Joints’ restrained flange adaptor for PE is designed for applications requiring resistance to mechanical stress and pipe movement, with options for SDR 17, SDR 11, and SDR 7.4 PE pipes.

When to Use a Universal Flange Adaptor

A universal flange adaptor is useful when several pipe materials or dimensional standards may be encountered within the same project.

Its wider OD tolerance can help accommodate pipes such as:

• ·   Ductile iron

• ·   Cast iron

• ·   Steel

• ·   PVC

• ·   Asbestos cement

• ·   Other rigid plain-ended pipes

Universal adaptors are particularly valuable for pipeline rehabilitation, emergency maintenance, municipal inventory programs, and projects where the precise pipe standard is not known before excavation.

However, “universal” does not mean unrestricted.

The buyer must still verify:

• ·   The measured OD is within the adaptor range

• ·   The pipe material is approved for the adaptor

• ·   The pressure rating is adequate

• ·   The flange drilling matches the equipment

• ·   The connection has sufficient axial restraint

• ·   The gasket is compatible with the fluid

A universal non-restrained adaptor should not automatically be used for PE pipe simply because the PE pipe falls within its stated diameter range. Flexible plastic pipes often require a product specifically designed to grip and support PE.

Quick Material-Matching Guide

This table should be treated as an initial guide. Final selection must be based on the actual pipe dimensions, pipeline design, working medium, pressure, and installation conditions.

Match the Flange Drilling Standard

Even when the pipe end fits correctly, the flange side can still be incompatible.

Check the following flange details:

• ·   Nominal flange size

• ·   PN10, PN16, PN25, or other pressure class

• ·   Bolt-circle diameter

• ·   Number of bolt holes

• ·   Bolt-hole diameter

• ·   Raised-face or flat-face arrangement

• ·   EN, ISO, BS, DIN, ANSI, or project-specific drilling

Two flanges with the same nominal diameter may use different drilling patterns because of their pressure rating or regional standard. Never assume a PN10 flange can be directly bolted to a PN16 or ANSI flange without checking the dimensional drawing.

The adaptor pressure rating should also be equal to or greater than the pipeline design pressure, including surge or water-hammer conditions. The lowest-rated component in the joint will determine the practical pressure limit of the complete connection.

Select the Correct Gasket Material

The gasket creates the seal between the adaptor and the pipe. Its material should be selected according to the transported fluid, operating temperature, and required approvals.

EPDM is commonly used for potable water, wastewater, and many general water-service applications. NBR may be selected where better resistance to certain oils or hydrocarbons is required.

Buyers should provide information about:

• ·   Transported medium

• ·   Fluid concentration

• ·   Continuous operating temperature

• ·   Maximum temperature

• ·   Potable-water approval requirements

• ·   Chemical exposure

• ·   Outdoor or underground installation

A gasket that performs well in drinking water may not be suitable for oil, fuel, concentrated chemicals, or high-temperature service.

Restrained or Non-Restrained?

The difference between a sealed joint and a restrained joint is critical.

A non-restrained flange adaptor seals around the pipe but normally relies on external measures to control axial movement. These measures may include thrust blocks, pipe anchors, restrained couplings, or structural supports.

A restrained flange adaptor both seals and grips the pipe. It is commonly considered when:

• ·   PE pipe is connected to a valve or pump

• ·   The pipeline is above ground

• ·   Installation space limits the use of thrust blocks

• ·   The joint may experience vibration

• ·   Ground settlement is possible

• ·   Surge pressure may create significant axial force

• ·   Pipe pull-out would create a serious safety risk

The restraint system must be designed for the specific pipe material. Gripping components suitable for steel or ductile iron may not be suitable for PE or PVC.

Common Matching Mistakes

Several avoidable errors can lead to leakage or installation delays.

Ordering by Nominal Diameter Alone

“DN200” is not enough information. Always provide the actual pipe OD and dimensional standard.

Ignoring the Adaptor OD Range

A wide-tolerance adaptor still has defined minimum and maximum limits. The complete pipe circumference must remain within this range.

Using a Non-Restrained Product Where Pull-Out Resistance Is Required

Sealing performance does not automatically provide axial restraint.

Mixing Flange Standards

The pipe end may fit while the flange bolt holes fail to align with the connected valve.

Choosing the Gasket Only by Price

An incompatible elastomer can swell, harden, soften, or lose sealing performance.

Over-Tightening Plastic Pipe Connections

Excessive torque can deform PVC or PE pipe and create long-term stress damage.

Failing to Support Heavy Equipment

The flange adaptor should not carry the full weight of a pump, valve, or meter assembly.

Information to Provide When Requesting a Flange Adaptor

To receive an accurate product recommendation, send the supplier the following details:

1. Pipe material

2. Actual pipe outside diameter

3. Nominal diameter

4. Pipe standard or SDR rating

5. Working pressure and surge pressure

6. Transported medium

7. Operating temperature

8. Required flange standard and pressure class

9. Restrained or non-restrained connection

10. Installation environment

11. Required coating

12. Gasket and bolt material requirements

13. Product quantity

14. Pipeline drawings or site photographs

Providing this information at the quotation stage reduces the risk of receiving an adaptor that fits the nominal size but does not match the actual pipeline.

Choose the Right Flange Adaptor for Your Pipeline Project

Correct flange adaptor selection begins with the pipe’s real outside diameter and material—not simply the DN marking. Engineers and buyers must also evaluate pressure, flange drilling, gasket compatibility, pipe movement, installation environment, and restraint requirements.

For mixed-material networks, universal adaptors can reduce inventory and simplify maintenance. For PVC and PE pipes, material-specific quick or restrained adaptors may provide better support and connection security. Where different nominal pipeline sizes must be joined, a proper reducer or engineered transition fitting should be used rather than relying on the flange adaptor alone.

Shanxi Solid Industrial supplies ductile iron flange adaptors for municipal water supply, drainage, irrigation, pumping stations, and industrial pipeline systems. Available solutions include flexible flange adaptors for DI pipe, quick adaptors for PE and PVC, restrained flange adaptors for PE, and universal flange adaptors. Products can be supplied according to ISO 2531, EN 545, and EN 14525, with PN10, PN16, and PN25 pressure options, EPDM or NBR gaskets, multiple coating systems, and galvanized or stainless steel fasteners. Send Solid Joints your pipe material, actual OD, pressure rating, flange standard, and project conditions to receive a suitable flange adaptor recommendation for your pipeline connection.
