How to Install a Self-Locking Universal Coupling Correctly and Avoid Pipe Leakage

A self-locking universal coupling is designed to do more than simply connect two pipe ends. In addition to creating a watertight seal, its mechanical gripping or locking structure helps restrain axial pipe movement and reduce the risk of pipe pull-out under operating pressure.

However, even a well-designed coupling can leak or fail to provide reliable restraint if it is installed incorrectly.

Common problems such as an incorrect pipe outside diameter, dirty sealing surfaces, uneven bolt tightening, insufficient insertion depth, excessive pipe misalignment, or damaged gaskets can all affect joint performance. In many cases, leakage blamed on the coupling itself actually begins with pipe preparation or installation errors.

This guide explains how to install a self-locking universal coupling correctly, how to prevent common leakage problems, and what contractors and pipeline engineers should check before pressurizing the system.

What Is a Self-Locking Universal Coupling?

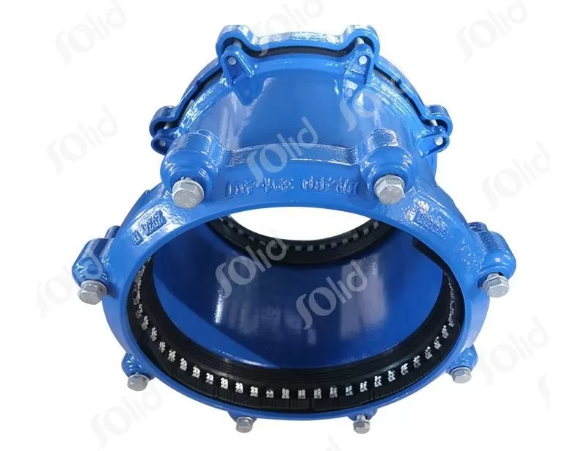

A self-locking universal coupling is a mechanical pipe connector that combines two important functions:

• ◆  Pipe sealing — a rubber gasket compresses around the outside surface of the pipe to form a watertight joint.

• ◆  Axial restraint — a gripping or locking mechanism engages the pipe surface to help prevent the connected pipe from pulling out of the coupling.

This makes the coupling different from a conventional non-restrained universal coupling, which is primarily intended to connect and seal pipes but may require additional external restraint where significant axial forces are present.

Self-locking universal couplings are particularly useful in water supply, drainage, municipal infrastructure, industrial piping, pipeline repair and other applications where contractors need both installation flexibility and mechanical restraint.

Depending on the specific coupling design, they may be used with pipe materials such as:

• ◆  Ductile iron

• ◆  Cast iron

• ◆  Carbon steel

• ◆  Stainless steel

• ◆  PVC

• ◆  PE or HDPE

• ◆  Asbestos cement or other rigid pipe materials

Compatibility must always be confirmed according to the actual coupling model, pipe outside diameter and project requirements.

Why Do Self-Locking Universal Couplings Leak After Installation?

A pipe coupling usually does not seal simply because the bolts are tight.

The joint depends on several conditions working together:

Correct pipe OD + suitable gasket + clean sealing surface + correct insertion + even gasket compression + proper restraint engagement.

If one of these conditions is wrong, increasing bolt torque alone may not solve the problem.

The most common causes of leakage include:

1. Selecting a coupling outside the actual pipe OD range

2. Dirt, rust, scale or coatings under the sealing gasket

3. Deep scratches or pitting on the pipe surface

4. Damaged, twisted or incorrectly positioned gaskets

6. Uneven bolt tightening

7. Excessive tightening on one side

8. Incorrect pipe insertion depth

9. Excessive angular misalignment

10 Unsupported pipe placing external load on the joint

11. Using an unsuitable gasket material for the conveyed medium

12. Pipe deformation, especially with certain plastic pipes

13. Pressurizing the system before installation has been fully checked

Correct installation therefore begins before the coupling is placed on the pipe.

Step 1: Confirm the Pipe Outside Diameter

One of the most important steps is also one of the most frequently overlooked: measure the actual outside diameter of both pipes.

Do not select a universal coupling only according to nominal pipe size.

Pipes with the same nominal DN can have different outside diameters depending on:

• ◆  Pipe material

• ◆  Manufacturing standard

• ◆  Pipe series

• ◆  Wall thickness

• ◆  Age of the pipeline

• ◆  Existing coating

• ◆  Corrosion

• ◆  Previous repair work

For example, a contractor may be connecting an old cast iron pipeline to a newer steel or PVC pipe. Both pipes may be described by the same nominal size, but their actual outside diameters can be different.

Before installation:

1. Measure the OD of pipe A.

2. Measure the OD of pipe B.

3. Measure at several positions around the circumference if the pipe is old or potentially out of round.

4. Compare both measurements with the coupling's permitted OD range.

5. Confirm that the coupling is suitable for both pipe materials.

A wide-tolerance coupling can compensate for a certain range of diameter variation, but it cannot compensate for an unlimited difference.

Never try to make an undersized or oversized coupling fit by applying excessive bolt torque.

If the pipe OD falls outside the manufacturer's specified range, select another coupling size or configuration.

Step 2: Inspect the Pipe Ends

Before installing the coupling, inspect the areas of pipe that will contact the gasket and gripping components.

The pipe should be checked for:

• ◆  Heavy rust

• ◆  Loose scale

• ◆  Mud

• ◆  Sand

• ◆  Oil or grease

• ◆  Old coating deposits

• ◆  Weld beads

• ◆  Deep scratches

• ◆  Dents

• ◆  Flat spots

• ◆  Severe pitting

• ◆  Out-of-round deformation

A gasket needs a reasonably clean and continuous surface in order to create uniform compression around the pipe.

Even a small piece of hard debris trapped underneath the gasket can create a path for water to escape.

Manufacturer installation guidance for universal and restrained couplings consistently emphasizes cleaning and inspecting the gasket-bearing area before assembly.

Step 3: Clean the Gasket Contact Area Thoroughly

Use appropriate cleaning tools to remove dirt, rust flakes and other loose material from the pipe surface.

Depending on the pipe material and site conditions, this may involve:

• ◆  A clean cloth

• ◆  Wire brush

• ◆  Scraper

• ◆  Approved cleaning tools

• ◆  Other non-damaging surface preparation methods

Pay particular attention to the circumference where the gasket will sit.

The objective is not necessarily to make an old pipe look new. The goal is to provide a clean, stable surface that allows the gasket to compress evenly.

If serious corrosion has created deep pits underneath the sealing area, simply cleaning the pipe may not be enough. The installer should determine whether the pipe needs repair, surface treatment or a different connection solution.

Step 4: Inspect the Coupling Components

Do not assume that a coupling is ready to install simply because it has just been removed from its packaging.

Before assembly, check:

Coupling Body

Look for transportation damage, deformation or contamination.

Rubber Gaskets

Check for:

• ◆  Cuts

• ◆  Cracks

• ◆  Tears

• ◆  Permanent deformation

• ◆  Dirt

• ◆  Incorrect positioning

The gasket should also be suitable for the service medium and operating temperature.

Grip or Locking Components

Make sure the mechanical restraint components are:

• ◆  Complete

• ◆  Correctly positioned

• ◆  Free from excessive contamination

• ◆  Not visibly damaged

The gripping elements are responsible for helping resist axial movement, so their condition matters just as much as the sealing gasket.

Bolts and Nuts

Check that:

• ◆  All fasteners are present

• ◆  Threads are clean

• ◆  Nuts move correctly

• ◆  Bolts are not bent or damaged

If any component is damaged, it should be addressed before installation rather than compensated for by additional tightening.

Step 5: Confirm Pipe Alignment and Support

Universal couplings are designed to provide more installation tolerance than rigid connections, but they should not be used to correct severe pipeline alignment errors.

Before tightening the coupling, check:

• ◆  Axial alignment

• ◆  Angular alignment

• ◆  Pipe end gap

• ◆  Lateral offset

• ◆  Pipe support

• ◆  External loads

Excessive misalignment can cause uneven gasket compression.

One side of the gasket may become highly compressed while the opposite side receives insufficient compression. This creates an increased risk of leakage.

A self-locking universal coupling may permit controlled angular deviation depending on its design, but the allowable angle must be checked against the technical data for the specific model rather than estimated on site.

Where possible, align the pipe before tightening instead of using the bolts to force the pipe into position.

Step 6: Mark the Required Insertion Position

Before inserting the pipe, mark the recommended insertion depth or coupling position on each pipe.

This simple step provides an important visual reference during installation.

Without a mark, installers may not notice that:

• ◆  One pipe has entered too deeply

• ◆  The opposite pipe has insufficient engagement

• ◆  The coupling is not centered

• ◆  The coupling has shifted during bolt tightening

For a coupling connecting two pipe ends, the body should generally be positioned according to the manufacturer's specified insertion and pipe-end-gap requirements.

Do not guess these dimensions.

Using reference marks on the pipe makes the final inspection much easier and helps confirm that the coupling has not moved during tightening.

Step 7: Install the Coupling Without Damaging the Gasket

Depending on the coupling design, the product may be supplied preassembled or may require certain components to be positioned separately.

Follow the installation sequence specified for the actual coupling.

During insertion:

• ◆  Keep the pipe reasonably centered.

• ◆  Avoid dragging sharp pipe edges across the gasket.

• ◆  Do not allow sand or debris to enter the sealing area.

• ◆  Make sure the gasket does not twist, fold or roll.

• ◆  Do not use an unapproved lubricant.

For coupling designs that require lubrication, use only a lubricant compatible with the gasket and intended pipeline service.

Incorrect lubrication can damage some elastomer materials or contaminate potable-water systems.

Other designs may not require additional lubrication at all.

The product installation instructions should take priority.

Step 8: Position the Self-Locking Components Correctly

A self-locking coupling relies on its restraint mechanism to grip the pipe.

Depending on the design, this may involve:

• ◆  Grip rings

• ◆  Metal inserts

• ◆  Wedges

• ◆  Teeth

• ◆  Locking blocks

• ◆  Other mechanical gripping elements

These parts must sit correctly around the pipe circumference.

The restraint system should not be mistaken for the gasket.

The gasket creates the seal. The gripping structure provides mechanical restraint.

Both must work correctly.

If the gripping components are incorrectly positioned, the joint may appear watertight during an initial low-pressure check but still be unable to resist axial forces properly during service.

This is particularly important where the pipeline is exposed to pressure thrust, vibration, ground movement or other forces that may cause pipe displacement.

Step 9: Hand-Tighten All Bolts First

Before using a torque wrench, bring all bolts and nuts into contact by hand.

Do not fully tighten the first bolt immediately.

The objective at this stage is to make sure:

• ◆  The coupling is centered

• ◆  End rings or glands remain square

• ◆  The gasket remains correctly seated

• ◆  The coupling has not shifted from the reference marks

• ◆  The gap around the coupling is reasonably uniform

If the coupling becomes visibly tilted during hand tightening, correct its position before continuing.

Step 10: Tighten Bolts Gradually in a Crosswise Pattern

Uneven tightening is one of the most common installation mistakes.

If one bolt is fully tightened before the others, the gland or end ring may be pulled unevenly toward the coupling body. This can compress one section of the gasket more than another.

Instead, tighten bolts progressively.

A typical approach is:

Light tightening → opposite bolt → next bolt → opposite bolt → repeat progressively until the required tightening condition is reached.

For a coupling with multiple bolts around the circumference, use an alternating or crosswise sequence.

The goal is uniform gasket compression and balanced engagement of the restraint mechanism.

Restrained coupling installation instructions commonly specify gradual, alternating tightening rather than fully loading one fastener at a time.

How Much Torque Should Be Applied?

There is no single bolt torque value that should be used for every self-locking universal coupling.

Required torque can vary according to:

• ◆  Coupling design

• ◆  DN size

• ◆  Bolt size

• ◆  Bolt material

• ◆  Pipe material

• ◆  Gasket configuration

• ◆  Restraint mechanism

• ◆  Manufacturer specification

Therefore, installers should use a calibrated torque wrench and follow the torque requirement supplied for the specific coupling.

Too Little Torque Can Cause:

• ◆  Insufficient gasket compression

• ◆  Water leakage

• ◆  Incomplete restraint engagement

• ◆  Pipe movement

Too Much Torque Can Cause:

• ◆  Gasket distortion

• ◆  Damaged bolts or threads

• ◆  Coupling deformation

• ◆  Excessive stress on plastic pipe

• ◆  Uneven sealing

• ◆  Damage to restraint components

A leaking coupling should therefore not automatically be tightened harder.

First identify why it is leaking.

Special Considerations for PE and Other Plastic Pipes

Plastic pipe requires additional attention because its behavior differs from ductile iron or steel.

Potential issues include:

• ◆  Greater pipe wall flexibility

• ◆  Ovality

• ◆  Surface scoring

• ◆  Creep

• ◆  Local deformation under excessive clamping force

Certain restrained connection systems for PE or HDPE require an internal pipe stiffener to help prevent pipe deformation.

Whether a stiffener is required depends on the pipe type and the specific coupling design.

Before connecting PE or HDPE pipe, confirm:

• ◆  Pipe SDR or wall thickness

• ◆  Actual OD

• ◆  Pipe ovality

• ◆  Coupling compatibility

• ◆  Whether an internal stiffener is required

• ◆  Required tightening procedure

• ◆  Pressure rating

Never assume that installation instructions for ductile iron pipe apply unchanged to PE pipe.

Step 11: Check the Joint Before Pressure Testing

After final tightening, inspect the complete connection.

Check the following:

Coupling Position

Has the coupling remained within the reference marks?

Bolt Tightening

Have all bolts been tightened evenly according to the specified procedure?

Gland Alignment

Are the end rings or glands reasonably parallel with the coupling body?

Gasket Position

Is there any visible indication that the gasket has been displaced or pinched?

Pipe Alignment

Has tightening pulled the pipeline into an unintended position?

External Support

Is the pipe properly supported?

The coupling should not be expected to carry loads caused by an inadequately supported pipeline unless the system has specifically been designed for those loads.

Step 12: Pressurize the Pipeline Gradually

Do not immediately apply full pressure to a newly installed joint without inspection.

Pressure testing should be performed according to the project specification, applicable pipeline standard and coupling manufacturer's requirements.

During initial pressurization, observe the coupling for:

• ◆  Dripping

• ◆  Seepage

• ◆  Pipe movement

• ◆  Coupling movement

• ◆  Unusual deformation

• ◆  Abnormal noises

Gradual pressurization gives installers an opportunity to identify problems before the system reaches its final test pressure.

If leakage appears, stop and investigate instead of simply continuing to increase pressure.

What Should You Do If the Coupling Leaks?

When leakage occurs, use a systematic troubleshooting process.

1. Check Whether the Leak Comes From the Coupling

Water can travel along a pipe surface, making the apparent leak location misleading.

Clean and inspect the joint carefully.

2. Check Bolt Tightening

Confirm whether the bolts have been tightened evenly to the specified requirement.

3. Check Coupling Alignment

An angled gland or visibly uneven coupling body may indicate uneven compression.

4. Check the Pipe OD

Confirm that the actual pipe diameter falls within the coupling's working range.

This is particularly important in old pipelines.

5. Check the Gasket

If necessary, depressurize and disassemble the joint according to safe working procedures.

Inspect the gasket for:

• Pinching

• Rolling

• Cuts

• Dirt

• Incorrect installation

• Chemical deterioration

Improper gasket positioning or pinching is a recognized cause of coupling leakage.

6. Inspect the Pipe Surface

Look for deep corrosion pits, weld seams, scratches or deformation underneath the gasket.

7. Check Pipe Alignment

Excessive angular or lateral misalignment can prevent uniform sealing.

8. Check the Restraint Components

Confirm that grip elements are positioned correctly and have engaged the pipe as intended.

Common Installation Mistakes to Avoid

Mistake 1: Choosing by DN Without Measuring OD

Risk: The coupling may not compress correctly around the actual pipe.

Solution: Always verify the real OD of both pipe ends.

Mistake 2: Installing Over Rust and Scale

Risk: Debris creates an uneven gasket sealing surface.

Solution: Clean the gasket-bearing area thoroughly.

Mistake 3: Fully Tightening One Bolt First

Risk: Uneven gasket compression and tilted glands.

Solution: Tighten gradually in an alternating sequence.

Mistake 4: Using Bolts to Correct Severe Misalignment

Risk: Permanent stress is introduced into the connection.

Solution: Align and support the pipeline before final tightening.

Mistake 5: Assuming Tighter Always Means Better

Risk: Gasket, fastener or pipe damage.

Solution: Follow the specified torque and installation procedure.

Mistake 6: Ignoring Plastic Pipe Requirements

Risk: Pipe deformation or insufficient restraint.

Solution: Confirm whether pipe stiffeners or special restraint components are required.

Mistake 7: Pressurizing Without a Final Inspection

Risk: A simple installation error becomes a serious leak or joint failure.

Solution: Inspect alignment, insertion depth, bolts and restraint engagement before testing.

Pre-Installation Checklist for Contractors

Before starting installation, confirm:

This checklist is particularly useful for contractors managing multiple pipe materials or large infrastructure projects where the same installation team may work with several coupling sizes.

How Can Pipe Leakage Be Prevented Over the Long Term?

A correctly installed coupling is the first requirement, but long-term reliability also depends on the pipeline system itself.

Provide Proper Pipe Support

Unsupported pipe weight should not continuously load the coupling.

Consider Ground Settlement

Buried pipelines installed in unstable soil may experience movement over time.

Evaluate Thermal Expansion

Long pipe runs can expand and contract as temperature changes.

Control Vibration

Pumps and other equipment can transmit vibration into connected pipelines.

Protect Against Corrosion

Damaged protective coatings should be repaired according to the project specification, particularly for buried or corrosive environments.

Inspect Critical Connections

High-risk or easily accessible joints may benefit from periodic inspection as part of the pipeline maintenance program.

A coupling should be treated as part of the complete piping system rather than as an isolated component.

FAQ About Self-Locking Universal Coupling Installation

Can a Self-Locking Universal Coupling Connect Pipes With Different Outside Diameters?

Yes, wide-tolerance universal coupling designs can accommodate a specified range of pipe outside diameters. However, both actual pipe ODs must fall within the permitted range of the selected coupling.

Always measure the pipe rather than selecting only by nominal DN.

Can I Install the Coupling on a Rusty Pipe?

Light surface corrosion can usually be cleaned before installation, but loose scale, severe pitting and major surface defects can interfere with gasket sealing.

The gasket contact area should be properly prepared before assembly.

Should I Tighten the Bolts as Much as Possible?

No.

Bolts should be tightened evenly to the specified requirement for the coupling model.

Overtightening is not a reliable solution to leakage and can damage the gasket, fasteners, coupling or pipe.

Why Does a Newly Installed Pipe Coupling Still Leak?

Typical causes include incorrect pipe OD, dirty sealing surfaces, damaged gaskets, uneven bolt tightening, excessive misalignment, incorrect insertion depth and pipe surface defects.

Troubleshoot these factors before simply applying more torque.

Does a Self-Locking Coupling Need Thrust Blocks?

A self-locking or restrained coupling is designed to resist axial pipe movement, but whether additional anchoring or thrust restraint is required depends on the complete pipeline design, pressure, fittings, changes in direction, soil conditions and applicable engineering requirements.

The restraint capacity of the selected coupling should be checked during system design.

Can It Be Used for Underground Water Pipelines?

Self-locking universal couplings are commonly suitable for water and infrastructure pipeline applications when the selected product is compatible with the pipe material, working pressure, medium and installation environment.

Corrosion protection and external loading should also be considered for buried installations.

Can Self-Locking Universal Couplings Be Used With PVC or PE Pipe?

Many designs can connect plastic pipe, but compatibility must be confirmed for the specific product.

For PE or HDPE applications, check pipe SDR, ovality and whether an internal stiffener or dedicated gripping arrangement is required.

Do Universal Couplings Allow Pipe Misalignment?

They can generally accommodate limited angular deviation, but the allowable value depends on the coupling design.

Installation flexibility should not be interpreted as permission to connect severely misaligned pipes.

What Information Should Be Provided When Ordering a Self-Locking Universal Coupling?

For accurate selection, provide:

• ◆  Pipe nominal diameter

• ◆  Actual outside diameter of both pipes

• ◆  Pipe material

• ◆  Working pressure

• ◆  Test pressure where applicable

• ◆  Conveyed medium

• ◆  Operating temperature

• ◆  Required connection type

• ◆  Project standard

• ◆  Installation environment

• ◆  Quantity

For old pipeline repair projects, photographs and measured pipe ODs can also help reduce selection errors.

Final Installation Advice

Reliable self-locking universal coupling installation is not about applying maximum force to the bolts. It is about creating uniform sealing pressure and reliable mechanical restraint around correctly prepared pipes.

The most important practices are simple:

Measure the real pipe OD. Clean the sealing area. Inspect the gasket and grip components. Align and support the pipe. Mark the insertion depth. Tighten bolts gradually and evenly. Follow the specified torque. Inspect the joint. Then pressurize the pipeline gradually.

Following this process can significantly reduce installation errors, repeated maintenance and unexpected leakage in water supply, drainage and industrial pipeline projects.

For distributors, contractors, waterworks companies and infrastructure project buyers looking for reliable pipe connection solutions, Solid Group supplies self-locking universal couplings and related ductile iron pipeline fittings for different pipe materials, diameters and project requirements. Send us your pipe OD, material, pressure rating and application conditions, and our team can help you identify a suitable coupling configuration for your project.
