How to Choose the Right Self-Locking Universal Coupling for Your Pipeline

Pipeline joints are often treated as relatively simple components, but choosing the wrong coupling can create serious problems later. Leakage, joint movement, pipe pull-out, difficult installation, premature gasket failure, and unnecessary maintenance can all result from an unsuitable connection.

A self-locking universal coupling is designed to connect plain-ended pipes while also helping restrain axial movement. Compared with a conventional universal coupling, the self-locking design provides an additional gripping function that helps keep the connected pipes from separating under internal pressure or external movement.

However, selecting the right coupling involves much more than choosing a nominal diameter.

Pipe outside diameter, pipe material, operating pressure, pressure surges, angular misalignment, fluid type, gasket compatibility, environmental conditions, and installation requirements all influence the final choice.

This guide explains how to evaluate those factors and choose a self-locking universal coupling that matches the actual operating conditions of a pipeline.

What Is a Self-Locking Universal Coupling?

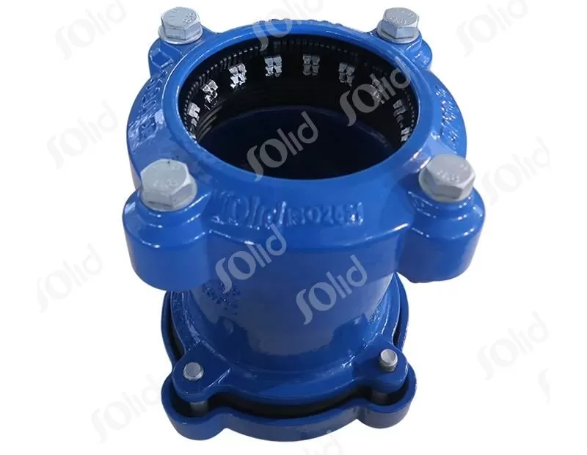

A self-locking universal coupling is a mechanical pipe joint used to connect two plain-ended pipes.

Its main functions typically include:

• ·   Connecting pipes without welding or flanging

• ·   Accommodating differences in pipe outside diameter

• ·   Compensating for limited angular misalignment

• ·   Creating a pressure-tight seal

• ·   Restricting axial pipe movement

• ·   Simplifying repair and replacement work

The term universal generally refers to the coupling's ability to accommodate a range of pipe outside diameters rather than being limited to one exact pipe dimension.

The term self-locking refers to the coupling's gripping or restraint mechanism. When properly installed, the locking components engage with the pipe surface and help resist longitudinal movement.

This makes the coupling particularly useful where pipelines experience thrust, vibration, settlement, or other forces that could cause an unrestrained joint to separate.

1. Measure the Actual Pipe Outside Diameter

The first step in choosing a self-locking universal coupling is determining the actual outside diameter of the pipe.

This is more important than simply knowing the nominal pipe size.

For example, two pipes may both be described as DN150, but their actual outside diameters may differ because they are made from different materials or according to different standards.

Pipe OD can vary because of:

• ·   Pipe material

• ·   Manufacturing standard

• ·   Wall thickness

• ·   Production tolerances

• ·   External coatings

• ·   Pipe age

• ·   Corrosion

• ·   Previous repairs

For this reason, coupling selection should always be based on the actual outside diameter range.

Why Nominal Diameter Is Not Enough

Nominal diameter is mainly a naming system. It does not always represent the exact measured external diameter of the pipe.

This becomes especially important when connecting:

• ·   Steel pipe to ductile iron pipe

• ·   Old pipe to new pipe

• ·   Pipes manufactured under different standards

• ·   Existing buried pipelines with unknown specifications

• ·   Pipes with thick external coatings

A universal coupling may cover a relatively wide diameter range, but the actual pipe OD still needs to fall within the specified limits.

Measure Existing Pipes Carefully

For older pipelines, measure the pipe at several positions around the circumference.

This is useful because old pipes may become slightly oval due to:

• ·   Ground pressure

• ·   Corrosion

• ·   Mechanical damage

• ·   Manufacturing irregularities

If the pipe is significantly out of round, the sealing surface may require additional evaluation before installation.

2. Identify the Pipe Material

Pipe material affects how a self-locking coupling grips the pipe and how loads are transferred through the joint.

Common pipeline materials include:

• ·   Ductile iron

• ·   Cast iron

• ·   Carbon steel

• ·   Stainless steel

• ·   PVC

• ·   PE

• ·   Asbestos cement

• ·   Other rigid or semi-rigid pipe materials

A coupling that works well on a rigid steel pipe does not necessarily behave the same way on polyethylene pipe.

Therefore, the pipe material should always be confirmed together with the pipe OD.

Metallic Pipes

Steel, ductile iron, and cast iron pipes are relatively rigid. Their surfaces provide a stable area for gripping components, although differences in hardness, coatings, and corrosion condition still need to be considered.

Older cast iron pipes may have uneven external surfaces, so cleaning and inspection are important before installation.

PVC Pipes

PVC pipes are lighter and less rigid than metallic pipes.

Excessive tightening or unsuitable gripping components can create concentrated stresses in the pipe wall. The coupling should therefore be compatible with the mechanical characteristics of the PVC pipe.

PE Pipes

Polyethylene pipe requires particular attention.

PE is flexible and can deform under external compression. When using restrained couplings with PE pipe, factors such as SDR, wall thickness, and internal pipe support may need to be considered.

A pipe stiffener may be required in some applications to prevent excessive deformation.

The main rule is:

Never choose a self-locking universal coupling based on outside diameter alone. Pipe material must also be considered.

3. Check the Pipeline Pressure

Pressure rating is one of the most important technical factors in coupling selection.

The coupling should be suitable not only for the normal working pressure but also for the highest pressure the system may experience.

Important pressure values include:

• ·   Normal operating pressure

• ·   Maximum operating pressure

• ·   Surge pressure

• ·   Hydrostatic test pressure

Why Surge Pressure Matters

Pipeline pressure does not always remain constant.

Rapid valve closure, pump startup, pump shutdown, and sudden changes in flow can create transient pressure increases commonly known as water hammer.

A pipeline operating normally at 10 bar may temporarily experience a significantly higher pressure during a transient event.

If the coupling is selected only according to average working pressure, these temporary loads may not be properly considered.

Pressure class should therefore be selected with an appropriate safety margin and in accordance with the overall pipeline design.

4. Understand Axial Forces in the Pipeline

The main reason for using a self-locking coupling instead of a conventional universal coupling is axial restraint.

Internal pressure creates forces that act along the pipeline.

These forces become particularly important around:

• ·   Bends

• ·   Tees

• ·   Reducers

• ·   Valves

• ·   Dead ends

• ·   Pump connections

• ·   Changes in pipeline direction

If a joint is not properly restrained, the pipes may move longitudinally.

In extreme cases, the joint can separate.

A self-locking coupling helps transfer these axial forces through a mechanical gripping system.

However, it is important to understand that a self-locking coupling is only one part of the overall restraint system.

Pipeline designers may still need to consider:

• ·   Thrust blocks

• ·   Anchors

• ·   Pipe supports

• ·   Soil resistance

• ·   Expansion and contraction

• ·   Structural movement

The coupling should therefore be selected as part of the complete pipeline design rather than as an isolated component.

5. Consider Angular Misalignment

Pipelines are rarely installed in perfectly straight alignment.

Existing lines may have shifted over time, while new installations can include small deviations due to:

• ·   Trench conditions

• ·   Ground settlement

• ·   Pipe manufacturing tolerances

• ·   Difficult installation locations

• ·   Replacement of damaged pipe sections

Universal couplings are designed to tolerate a certain degree of angular deflection.

This can make installation easier and reduce the need for precise pipe alignment.

However, allowable angular deflection should not be confused with unlimited flexibility.

If the angle between the pipes is too large, problems may include:

• ·   Uneven gasket compression

• ·   Reduced sealing performance

• ·   Excessive stress on the coupling

• ·   Difficulty tightening bolts evenly

Whenever possible, pipe ends should still be aligned as closely as practical before the coupling is installed.

The coupling's angular tolerance should mainly be used to accommodate unavoidable field deviations.

6. Choose the Correct Gasket Material

The gasket is responsible for creating the seal between the coupling and the pipe.

Its material must therefore be suitable for both the conveyed fluid and the operating temperature.

EPDM

EPDM is widely used for:

• ·   Potable water

• ·   Cooling water

• ·   Wastewater

• ·   General water distribution systems

It offers good resistance to water, ozone, and weathering.

NBR

NBR is commonly selected where resistance to certain oils and hydrocarbons is required.

However, gasket compatibility should always be checked for the specific fluid.

The following information should be considered:

• ·   Type of fluid

• ·   Chemical concentration

• ·   Minimum temperature

• ·   Maximum temperature

• ·   Potable-water requirements

• ·   Expected service life

Using an unsuitable gasket can result in swelling, hardening, cracking, or loss of sealing pressure.

7. Consider the Installation Environment

A coupling installed inside a dry plant room experiences very different conditions from one buried underground or installed near the coast.

Environmental factors affect both material selection and corrosion protection.

Typical conditions include:

• ·   Underground installation

• ·   Outdoor installation

• ·   Valve chambers

• ·   Wastewater facilities

• ·   Coastal areas

• ·   Industrial plants

• ·   High-humidity environments

• ·   Chemically aggressive soil

For ductile iron couplings, epoxy coating is commonly used for corrosion protection.

However, severe environments may require closer attention to:

• ·   Coating thickness

• ·   Coating quality

• ·   Bolt material

• ·   Nut material

• ·   Stainless steel components

• ·   External wrapping

• ·   Additional corrosion protection

The surrounding environment should therefore be considered during coupling selection rather than after installation.

8. Inspect the Pipe Surface Before Installation

Even the correct coupling may not seal properly if the pipe surface is unsuitable.

Before installation, inspect the pipe ends carefully.

Look for:

• ·   Heavy rust

• ·   Loose scale

• ·   Deep corrosion pits

• ·   Cracks

• ·   Weld beads

• ·   Sharp projections

• ·   Dirt

• ·   Grease

• ·   Old coatings

• ·   Surface irregularities

The area where the gasket contacts the pipe should be reasonably smooth and clean.

Heavy corrosion may prevent the gasket from creating uniform compression around the entire circumference.

The gripping elements also need a suitable pipe surface to develop proper restraint.

Cleaning the pipe before installation is therefore an important part of joint reliability.

9. Check Available Installation Space

Self-locking universal couplings rely on mechanical fasteners.

Installers need sufficient space around the pipe to access and tighten those fasteners.

Before selecting the coupling, consider:

• ·   Trench width

• ·   Distance from walls

• ·   Distance from nearby valves

• ·   Distance from flanges

• ·   Access for tightening tools

• ·   Future maintenance access

This is particularly important in underground chambers or industrial plant rooms where the pipeline may be surrounded by other equipment.

A technically suitable coupling can still become difficult to install if there is insufficient space to tighten the bolts correctly.

10. Follow the Correct Bolt-Tightening Procedure

Uneven bolt tightening is a common cause of coupling problems.

If one side is tightened significantly more than the other, the gasket may compress unevenly.

This can lead to:

• ·   Leakage

• ·   Coupling misalignment

• ·   Uneven gripping force

• ·   Excessive stress on individual bolts

Bolts should normally be tightened gradually and evenly.

A cross-pattern or alternating sequence is often used to maintain uniform compression.

Installers should also follow the recommended torque.

Overtightening is not necessarily safer.

Excessive torque can:

• ·   Damage the gasket

• ·   Deform plastic pipe

• ·   Damage fasteners

• ·   Create uneven loading

Correct torque is more important than simply applying maximum tightening force.

11. Consider Pipe Movement After Installation

Pipeline movement does not always stop after construction is completed.

Pipes may continue to move because of:

• ·   Temperature changes

• ·   Soil settlement

• ·   Traffic loads

• ·   Vibration

• ·   Hydraulic forces

• ·   Ground movement

A self-locking universal coupling should be selected with these long-term conditions in mind.

For example, a buried water pipeline in unstable soil may experience movement very different from a fixed industrial pipe rack.

The coupling must therefore accommodate the expected installation conditions without being forced beyond its intended range.

12. Universal Coupling vs Self-Locking Universal Coupling

It is useful to understand when a standard universal coupling may be sufficient and when a self-locking model may be more appropriate.

A conventional universal coupling is often sufficient where the pipeline is already restrained by other means.

A self-locking coupling becomes more useful where the connection itself needs to contribute to axial restraint.

13. Common Mistakes When Selecting a Self-Locking Universal Coupling

Several mistakes repeatedly occur during pipeline coupling selection.

Choosing Only by Nominal Size

A DN200 coupling is not automatically suitable for every DN200 pipe.

Always check actual OD.

Ignoring Pipe Material

The gripping mechanism must be compatible with the mechanical characteristics of the pipe.

Ignoring Pressure Surges

Normal pressure does not always represent the maximum load experienced by the pipeline.

Assuming All Gaskets Are the Same

Different gasket materials offer different chemical and temperature resistance.

Using Maximum Angular Deflection During Normal Installation

The coupling should not normally be installed at its maximum allowable angle unless necessary.

Ignoring Pipe Surface Condition

Severe corrosion or irregularity can affect both sealing and gripping.

Overtightening Bolts

More torque does not automatically produce a stronger joint.

Assuming Self-Locking Means No Other Restraint Is Needed

The complete pipeline system must still be evaluated for thrust, anchors, supports, and movement.

14. A Practical Selection Process

A systematic approach makes coupling selection much easier.

Step 1: Identify the Pipeline

Determine:

• ·   Pipe material

• ·   Nominal size

• ·   Actual outside diameter

• ·   Wall thickness where applicable

Step 2: Check Pressure

Determine:

• ·   Working pressure

• ·   Maximum pressure

• ·   Test pressure

• ·   Possible water hammer

Step 3: Evaluate Restraint

Consider whether axial movement is possible because of:

• ·   Internal pressure

• ·   Pipeline bends

• ·   Pumps

• ·   Valves

• ·   Ground movement

Step 4: Check Alignment

Measure the expected angular deviation between the pipe ends.

Step 5: Identify the Medium

Confirm the conveyed fluid and select a compatible gasket.

Step 6: Review the Environment

Consider corrosion, soil conditions, humidity, and installation location.

Step 7: Check Installation Conditions

Make sure installers have sufficient space to position the coupling and tighten the bolts evenly.

Step 8: Verify the Coupling Range

Compare the actual pipe dimensions and operating conditions with the technical specifications of the selected coupling.

15. Example: Replacing a Section of an Existing Water Pipeline

Consider a municipal water pipeline where a damaged section needs to be replaced.

The existing pipe is ductile iron, while the replacement pipe is steel.

Both are described as DN200.

It may seem simple to select a DN200 coupling, but several checks are still required.

First, Measure Both Outside Diameters

The steel pipe and ductile iron pipe may not have identical external dimensions.

Second, Check the Operating Pressure

The coupling needs to withstand not only the normal water pressure but also possible transient pressure.

Third, Evaluate Axial Restraint

If the repair is close to a bend, valve, or pump, the connection may experience significant longitudinal forces.

Fourth, Check Pipe Alignment

The old pipe may have shifted slightly due to settlement.

Fifth, Inspect the Pipe Surface

Corrosion or old coatings may need to be removed before installation.

This example demonstrates why coupling selection should always be based on actual field conditions rather than only on the nominal pipe size.

Frequently Asked Questions

What Is a Self-Locking Universal Coupling Used For?

It is used to connect plain-ended pipes while providing sealing, dimensional tolerance, limited angular flexibility, and mechanical restraint against axial movement.

Can It Connect Pipes of Different Materials?

Yes, depending on the coupling design. Different materials such as steel, ductile iron, cast iron, PVC, and PE may be connected when the pipe dimensions and gripping requirements are compatible.

Why Is Actual Pipe OD So Important?

Because pipes with the same nominal diameter may have different outside diameters. The pipe must fall within the coupling's specified OD range.

Does a Self-Locking Coupling Prevent Pipe Pull-Out?

Its locking mechanism is designed to resist axial separation, but the complete pipeline restraint design should still be evaluated.

Can It Be Used on PE Pipe?

Some restrained coupling designs can be used on PE pipe, but SDR, wall thickness, pipe deformation, and the possible need for an internal stiffener must be considered.

What Gasket Material Should Be Used for Water?

EPDM is commonly used for water applications, but project and potable-water requirements should still be checked.

Can a Universal Coupling Compensate for Pipe Misalignment?

It can accommodate limited angular deviation, but the permitted angle depends on the specific product and size.

Does Higher Bolt Torque Improve Sealing?

Not necessarily. Uneven or excessive torque may damage the gasket or pipe. The recommended tightening sequence and torque should be followed.

What Causes Coupling Leakage?

Possible causes include incorrect OD selection, damaged gasket, poor pipe surface condition, uneven tightening, excessive angular deviation, or movement beyond the coupling's permitted range.

Should Old Pipes Be Measured Before Ordering a Coupling?

Yes. Older pipelines may differ from original dimensions because of corrosion, coatings, deformation, or unknown manufacturing standards.

Final Thoughts

Choosing the right self-locking universal coupling requires more than matching a nominal diameter.

The most important factors are:

• ·   Actual pipe outside diameter

• ·   Pipe material

• ·   Working and surge pressure

• ·   Axial restraint requirements

• ·   Angular misalignment

• ·   Gasket compatibility

• ·   Pipe surface condition

• ·   Corrosion environment

• ·   Installation space

• ·   Correct tightening procedure

When these factors are evaluated together, a self-locking universal coupling can provide a reliable and flexible solution for connecting and restraining pipelines in water supply, wastewater, industrial, and infrastructure systems.

For pipeline projects requiring dependable connection and restraint solutions, Solid Group provides self-locking universal couplings and related pipe joint products for a wide range of pipeline applications.
