How to Choose the Right Pipe Repair Clamp for Water Pipeline Leaks

Water pipeline leaks can quickly become a major maintenance problem if they are not repaired in time. A small crack, pinhole, corrosion spot, or joint leak can lead to water loss, pressure reduction, road damage, soil erosion, and unexpected system downtime. For municipal water systems, industrial pipelines, irrigation networks, and underground infrastructure, a pipe repair clamp provides a practical way to restore pipeline integrity without replacing a long section of pipe.

However, not every repair clamp is suitable for every pipeline. Selecting the right product requires more than simply matching the pipe diameter. Pipe material, operating pressure, leakage type, sealing material, installation conditions, and pipe surface condition all affect repair performance.

For engineering contractors, distributors, maintenance companies, and water utility procurement teams, understanding these factors can help ensure that the selected pipe repair clamp provides reliable sealing and long-term service.

What Is a Pipe Repair Clamp?

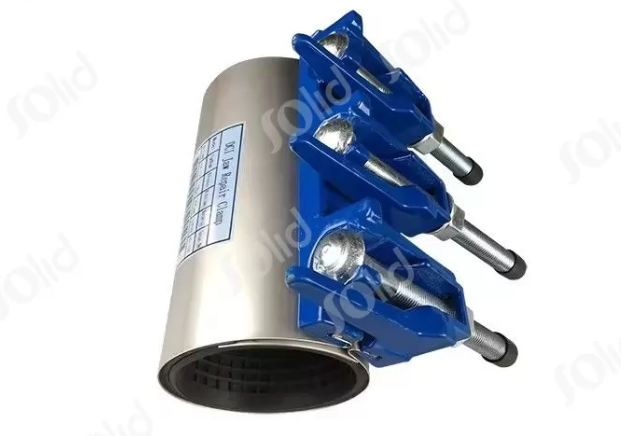

A pipe repair clamp is a mechanical repair device designed to seal localized leaks or damage on pressurized pipelines. It normally consists of a metal sleeve or body, a sealing gasket, bolts, and nuts. During installation, the clamp is positioned over the damaged area and tightened around the pipe. The gasket is compressed against the pipe surface to create a watertight seal.

Compared with cutting out and replacing a damaged pipe section, a repair clamp can significantly reduce repair time and installation work. It is particularly useful when pipeline shutdowns need to be minimized or when excavation and replacement would be costly.

Depending on the design, a pipe repair clamp may be used for straight pipe sections, corrosion damage, cracks, pinholes, or other localized defects.

1. Start With the Correct Pipe Diameter

Pipe diameter is one of the most important factors when selecting a pipe repair clamp.

A clamp that is too small cannot properly cover the damaged section, while an oversized clamp may not provide uniform gasket compression. Before ordering, procurement teams should confirm the actual outside diameter of the pipe rather than relying only on a nominal pipe size.

This is especially important because pipes made from different materials can have different outside dimensions even when their nominal sizes are similar.

When selecting a clamp, check:

· Actual pipe outside diameter

· Nominal pipe diameter

· Clamp size range

· Width of the damaged area

· Required repair coverage

For pipelines with varying pipe dimensions, an adjustable or wide-range pipe repair clamp may provide greater installation flexibility.

Accurate dimensional matching helps ensure that the gasket remains in continuous contact with the pipe surface and that the clamp can be tightened evenly.

2. Consider the Pipe Material

The pipe material directly affects clamp compatibility and sealing performance. Common water pipeline materials include ductile iron, cast iron, steel, stainless steel, PVC, PE, and other plastic or composite materials.

Different materials have different surface characteristics and mechanical properties. For example, metal pipes generally provide a rigid surface for clamp installation, while plastic pipes may have greater flexibility and thermal expansion.

When choosing a pipe repair clamp, consider whether the clamp design and gasket are suitable for the specific pipe material.

For metal pipelines, the main concern may be corrosion, cracks, or localized wall loss. For plastic pipelines, the clamp needs to accommodate the pipe's deformation characteristics while maintaining reliable gasket compression.

If the pipeline contains a protective coating, external anti-corrosion layer, or other surface treatment, procurement teams should also confirm whether the clamp can be installed without damaging the pipe or compromising the coating system.

3. Match the Clamp to the Working Pressure

Operating pressure is another critical selection criterion.

A pipeline used in a low-pressure water distribution system does not necessarily require the same repair clamp specification as a high-pressure industrial water line. The clamp should be rated for the actual operating pressure of the pipeline, with appropriate consideration for pressure fluctuations and system conditions.

Before purchasing, confirm:

· Normal working pressure

· Maximum operating pressure

· Possible pressure surges

· Pipeline application

· Clamp pressure rating

Water systems can experience pressure changes caused by pumps, valves, elevation differences, or sudden changes in flow. Selecting a clamp based only on average operating pressure may create unnecessary risk.

For pressurized water pipelines, the selected repair clamp should have a clearly defined pressure rating and be suitable for the specific installation environment.

4. Identify the Type of Leakage

Not all pipeline leaks are the same. The location, size, and cause of the damage can affect which repair clamp should be used.

Common leakage conditions include:

Pinholes and Small Holes

Small holes caused by corrosion or localized pipe damage are common in aging water pipelines. A suitable clamp can cover the damaged area and compress the gasket to stop water leakage.

Cracks

Longitudinal or localized cracks may require a clamp with sufficient coverage on both sides of the damaged section. The clamp should extend beyond the damaged area to provide stable sealing.

Corrosion Damage

Pipelines exposed to moisture, chemicals, or aggressive soil conditions may develop external or internal corrosion. If corrosion has reduced the pipe wall thickness, the repair method should be selected based on the remaining pipe strength as well as the leak itself.

Joint or Connection Leaks

Some leaks occur around pipe joints or connections. In these cases, the sealing geometry and clamp design must be compatible with the joint structure.

Before ordering a pipe repair clamp, identify not only where the leak is located but also why it occurred. A clamp can seal a localized leak, but severe structural deterioration may require a more comprehensive pipeline rehabilitation solution.

5. Pay Attention to Gasket and Sealing Materials

The gasket is one of the most important components of a repair clamp because it creates the actual seal between the clamp and pipe surface.

Common gasket materials may include EPDM, NBR, and other elastomeric compounds. The right choice depends on the fluid, temperature, pressure, and operating environment.

For potable water applications, the gasket material should be suitable for the intended water service and comply with applicable requirements in the target market.

When selecting the sealing material, consider:

· Water quality and fluid characteristics

· Operating temperature

· Chemical exposure

· Pressure conditions

· Outdoor or underground installation

· Required service life

For general water applications, an appropriate EPDM gasket may offer good resistance to water and weathering. For applications involving oils or certain hydrocarbons, a different elastomer may be more appropriate.

Therefore, procurement teams should avoid selecting a clamp based solely on the metal body. The gasket material is equally important to overall sealing reliability.

6. Check the Clamp Width and Repair Coverage

The width of the clamp determines how much of the pipe surface is covered around the damaged section.

A wider clamp can provide greater coverage and may be preferable for certain larger defects or longer damaged areas. However, the appropriate width depends on the actual leakage condition and pipe geometry.

When specifying the product, consider the relationship between:

Damage length + required sealing area + clamp width

The clamp should adequately extend beyond the damaged section so that the gasket can form a continuous seal on sound pipe surfaces.

For larger cracks or damaged areas, a longer clamp or multi-section repair clamp may be required.

7. Consider Installation Conditions

Pipeline repairs are often carried out under difficult field conditions. The pipe may be located underground, in a narrow trench, near other infrastructure, or in an area where complete drainage is difficult.

A repair clamp should therefore be practical for the available installation space.

Important considerations include:

· Available working clearance

· Number and arrangement of bolts

· Ease of gasket positioning

· Required installation tools

· Possibility of installation on wet or damp surfaces

· Access for future maintenance

A design that is easy to align and tighten can reduce labor time and help installers achieve consistent gasket compression.

For emergency maintenance, installation efficiency can be just as important as the clamp's basic sealing capability.

8. Look at Material and Corrosion Resistance

The clamp body and fasteners are exposed to moisture, soil, chemicals, and outdoor environmental conditions. Their material selection therefore affects service life.

Depending on the application, repair clamps may use materials such as ductile iron, carbon steel, stainless steel, or other corrosion-resistant configurations.

For underground water pipelines, corrosion protection is particularly important. Procurement teams should consider the surrounding soil, moisture conditions, water chemistry, and expected service environment.

A repair clamp intended for temporary emergency repair may have different material requirements from one expected to remain on a pipeline for many years.

9. Consider the Pipeline's Long-Term Service Requirements

A pipe repair clamp is often installed as a practical way to restore pipeline service quickly, but procurement teams should also consider what happens after the repair.

Key questions include:

· Is the clamp intended for temporary or long-term repair?

· Will the pipeline remain under continuous pressure?

· Is future inspection required?

· Will the repaired section remain accessible?

· Are spare clamps needed for emergency inventory?

For water utilities and maintenance contractors, keeping commonly used clamp sizes in stock can significantly reduce response time during emergency leaks.

It is also important to maintain accurate pipeline records, including pipe diameter, pipe material, repair location, clamp specification, and installation date. This information can support future maintenance planning.

Pipe Repair Clamp Selection Checklist

Before placing an order, buyers can use the following checklist:

Why Proper Selection Matters

Choosing a pipe repair clamp based only on pipe size can lead to poor sealing, difficult installation, or premature failure. A reliable repair solution requires a complete understanding of the pipeline and its operating environment.

For municipal water supply, wastewater, industrial water systems, and underground pipelines, the right clamp should match the pipe diameter, pipe material, pressure rating, damage type, gasket material, and installation conditions.

For procurement teams, this approach also helps reduce unnecessary product returns and ensures that the selected repair clamp can be installed efficiently in the field.

Choose a Pipe Repair Clamp for Your Pipeline Application

Every pipeline repair condition is different. If you are purchasing pipe repair clamps for municipal water networks, industrial pipelines, underground infrastructure, or emergency maintenance projects, the specification should be confirmed before ordering.

Provide the pipe diameter, pipe material, operating pressure, leak type, and required sealing material to your pipe repair clamp manufacturer or supplier. Based on these details, the appropriate clamp size, width, gasket configuration, and material can be selected for your application.

With the right specification, a high-quality pipe repair clamp can provide a fast and dependable way to restore leaking water pipelines while reducing downtime, labor, and replacement work.
