How to Choose the Right Flange Adaptor for PE, PVC and Steel Pipes

Feb. 10, 2026

Connecting dissimilar pipe materials — polyethylene (PE), PVC, and steel — is a common task on water, irrigation, industrial and municipal projects. Flange adaptors (also called flange adapters, flange coupling adapters, or quick flange adaptors) let you join plain-end thermoplastic pipe to flanged valves, pumps, instruments and metal pipework without welding or threaded transitions. But not every adaptor is right for every material or service. This post breaks down what to look for and gives practical selection and installation guidance so your joint works reliably for years.


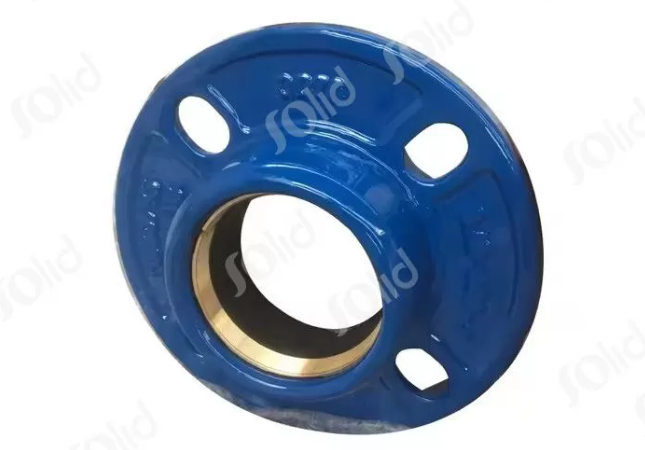

Quick Adaptor for PE


1. Start with the basics: what a flange adaptor does


A flange adaptor creates a pressure-rated transition between a plain pipe end (PE or PVC) and a standard metal flange. Good adaptors clamp or compress onto the pipe outside diameter (OD), provide a sealing gasket face to accept flange bolts, and often include restraint features to stop axial pullout under pressure. They exist in fixed-range models (for one OD) and universal/wide-range designs that fit several ODs. Universal/wide-range adaptors are popular where inventory flexibility or slight OD variation exists.


2. Match adaptor type to pipe material and behavior


Different pipe materials behave differently under load and temperature:


  • PE (HDPE / MDPE): flexible and capable of axial movement and creep over time. Choose adaptors that grip the pipe over a broad area, allow for controlled movement, and are sized by pipe outside diameter (OD) rather than nominal pipe size. Many HDPE flange adaptors are expressly designed to accept PE pipe ODs and have sealing rings that conform to the plastic surface.

  • PVC: stiffer and more brittle than PE. Adaptor designs for PVC usually emphasize uniform compression and avoid concentrated clamping loads or sharp set screws that could crack the pipe. Some adaptors are specifically rated for PVC and incorporate restraint options.

  • Steel / Ductile Iron: rigid and higher strength — when connecting to metal pipe, choose adaptors rated for the higher system stresses and with corrosion-resistant finishes. For steel, you may also prefer machined metal adaptors or mechanical flange adapters in stainless/steel alloys for temperature and pressure resilience.


3. Pressure rating and compatibility: don’t guess — confirm


Always confirm that the flange adaptor’s working pressure rating equals or exceeds the system pressure and matches the pipe’s rated pressure class. Many adaptors for PE/PVC are rated “up to the pressure rating of the pipe” when installed per manufacturer instructions — but ratings vary by size and material, so check the datasheet and the applicable industry guideline for your region. For PE flanged joints, recognized technical guidance exists that lists acceptable flange types, bolt torques, and installation best practices — consult those documents when designing and testing.


4. Seal material and chemical compatibility


Gasket or sealing ring material matters. EPDM is common for potable water and many aqueous services; nitrile (NBR) or HNBR may be required for oils or hydrocarbons; FKM/Viton is used for high-temperature or aggressive chemical environments. Select a seal compound compatible with conveyed fluid, operating temperature, and service life expectations. Manufacturer catalogs specify compatible elastomers — match them to your media and temperature range.


5. Restraint & axial loads — essential for pressured PE systems


PE pipe under pressure exerts axial thrust at flanged joints. If your system is not independently anchored, choose a restrained flange adaptor (with mechanical teeth, clamp ring, or an internal gripping ring) capable of resisting pullout at the maximum test or service pressure. Some adaptors include brass or stainless restraint rings; others rely on multiple set screws or wraparound clamps. If in doubt, select a restrained design and follow manufacturer installation instructions for number and torque of set screws.


6. Sizing rules — use OD for plastics, flange standard for metal


  • For PE and PVC: size the adaptor to the pipe OD, not the nominal size. Many quick adaptors are marked with the OD range they accept (e.g., 63.0–67.0 mm).

  • For steel/ductile iron: ensure the adaptor flange face matches the flange standard (ANSI/ASME, DIN, EN, JIS) and pressure class (150#, PN16, PN25, etc.). When connecting plastic to metal, use backing flanges or mechanical adaptors that accept the metal flange bolt pattern.


7. Installation tips — practice beats theory


A reliable installation prevents most failures:

  1. Clean and chamfer the pipe end per the adaptor instructions.

  2. Check OD across multiple points to ensure the pipe is within the adaptor’s acceptable range.

  3. Follow the torque sequence for bolts and set screws; over-torque can deform plastic pipes or compress seals excessively. Industry guides for PE flanged joints give calculated torque tables — use them.

  4. Support and anchor adjacent pipe runs so axial thrust is taken where intended (anchors and guides).

  5. Hydrostatic test the joint as part of system commissioning.


8. Special cases & product features to consider


  • Wide-range / universal adaptors: great for mixed inventories or slight OD variations, but verify pressure and restraint specifications.

  • Metal-to-metal mechanical flange adaptors: use where temperature or chemical exposure exceeds elastomer limits.

  • Coatings & corrosion protection: choose epoxy-coated adaptors or stainless materials for corrosive environments.



Quick selection checklist


  • System pressure & max test pressure — adaptor rating ≥ system.

  • Pipe material (PE/PVC/steel) and OD.

  • Restraint requirement (anchored vs. unanchored).

  • Seal material compatible with fluid & temperature.

  • Flange standard and bolt pattern for mating metal flange.


Final thoughts


Flange adaptors are a simple, cost-effective way to join PE and PVC to metal piping and equipment — when you choose the right type and install it correctly. The key decisions are matching the adaptor design to the mechanical behaviour of the pipe (flexible PE vs rigid steel), confirming pressure and restraint needs, choosing compatible seal materials, and following manufacturer installation procedures and torque recommendations.
