How to Choose the Right Expansion Joint for High-Temperature or High-Pressure Pipes

Choosing the correct expansion joint for pipelines that run at high temperature or high pressure is about balancing mechanics, materials, and safety. Pick the wrong joint and you risk fatigue failure, leaking, or dangerous pressure thrust — pick the right one and you extend service life, simplify maintenance, and reduce system stress. Below is a practical, engineer-friendly guide to making the right choice.

1. Start with the service conditions (the non-negotiables)

List the operating temperature, maximum and operating pressure, fluid/media (corrosive? abrasive? steam?), and the required movement types and magnitudes (axial, lateral, angular, or combination). These parameters immediately narrow the choices: metal bellows handle the widest temperature range, while rubber, fabric, and PTFE-lined joints have more limited temperature/pressure envelopes and different chemical resistances.

2. Use a stepwise selection framework

A simple framework many manufacturers use is S.T.A.M.P. — Service, Temperature, Application, Movement, Pressure — to match joint type, material and configuration to the job. This helps convert service needs into concrete specs (bellows cycles, bellows material, end connections, pressure rating, and whether a pressure-balanced or tied design is required).

3. Match joint type to the duty

• ·   Metal bellows (convoluted metal expansion joints) — the go-to for high-temperature and high-pressure systems (steam, hot gases, high-temp oils). They survive extreme heat, have predictable stiffness, and are available in single, universal, and pressure-balanced designs for handling pressure thrust. For very high temperatures or aggressive chemistries, specialty alloys (Inconel, Hastelloy) are common.

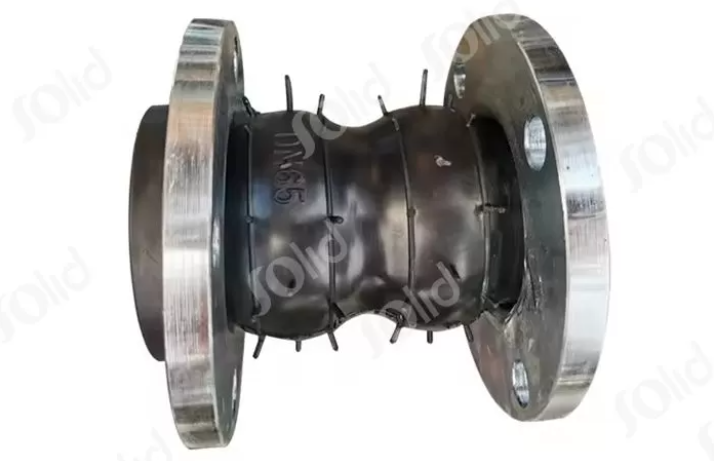

• ·   Rubber/fabric joints — good for vibration damping, low- to moderate-temperature systems and where some misalignment must be tolerated. Their upper temperature/pressure limits are much lower than metal bellows, so they’re rarely used where both temperature and pressure are high.

• ·   PTFE-lined and composite joints — chosen where chemical resistance matters; PTFE handles aggressive media but has temperature/pressure limits to check.

4. Consider movement vs. pressure trade-offs

Bellows provide movement capacity, but internal pressure generates a large axial thrust and reduces allowable movement as pressure rises. That means for high-pressure systems you may need tie rods, anchors, or a pressure-balanced expansion joint design to prevent large reaction forces on piping and equipment. Piping stress analysis will quantify whether anchors or restraint hardware are required.

5. Material selection — beyond temperature

Material must resist temperature, pressure creep, and corrosion. For steam and high-temp process fluids, stainless steels are common; but when temperatures or corrosion exceed stainless capability, duplex stainless, nickel alloys or Inconel may be necessary. Select lining or coatings if erosive or fouling fluids are present. Ask manufacturers for material data at your operating temperature (creep, fatigue life).

6. Choose the correct configuration and end fittings

Decide between welded ends, flanged ends, or threaded/companion flanges based on installation practice and pressure rating. Also select the bellows configuration: single convolution for small movement, multi-ply or multi-convolution for larger movement and life, and universal or hinge/tied arrangements when lateral or angular movement control is needed. Manufacturers publish catalogs and sizing tables — use them but confirm with a pipe stress analysis.

7. Safety, testing and standards

Designs for high-pressure or high-temperature service should follow recognized standards (EJMA for metallic bellows is an industry reference) and relevant ASME codes when applicable. High-pressure joints or those used on pressure vessels/heat exchangers often require code review, material traceability and third-party inspection or hydrostatic testing. Don’t skip factory pressure tests and documentation for critical systems.

8. Life expectancy, maintenance, and inspection

Ask vendors for calculated cycle life under your movement amplitude and frequency. High-temperature cycling accelerates fatigue; specify inspection intervals and consider redundancy or replaceable spool pieces if downtime is critical. Keep records of installation alignment, anchor locations and test certificates for future troubleshooting.

9. When to bring in specialists

If your application mixes high temperature, high pressure, corrosive media and complex movement, engage the joint manufacturer and a pipe stress analyst early. They will run the stress analysis, recommend pressure-balanced designs or anchors, confirm material choices, and provide installation instructions that prevent premature failure.

Final checklist

• ·   Document temperature, pressure, media and required movements.

• ·   Prefer metal bellows for combined high-T and high-P duties.

• ·   Verify flange/connection style and pressure rating.

• ·   Account for pressure thrust (ties, anchors, or pressure-balanced designs).

• ·   Require vendor cycle-life data, material certificates, and factory testing.

• ·   Follow EJMA/ASME guidance and perform pipe stress analysis for critical systems.

Choosing the right expansion joint is an engineering decision — not a parts-bin pick. With clear service data, adherence to standards, and cooperation between the piping engineer and the joint manufacturer, you’ll select a solution that keeps your high-temperature, high-pressure system safe, reliable and maintainable.
