How Restrained Flange Adaptors Improve Pipeline Safety and Stability

May. 29, 2026

In modern pipeline infrastructure, connection reliability is one of the most critical factors affecting operational safety, system longevity, and maintenance costs. Whether in municipal water distribution, industrial processing plants, fire protection systems, or oil and gas pipelines, unstable pipe joints can lead to leaks, pressure loss, costly downtime, and even catastrophic system failure. This is why restrained flange adaptors are becoming increasingly important in high-pressure pipeline applications where safety and stability cannot be compromised.

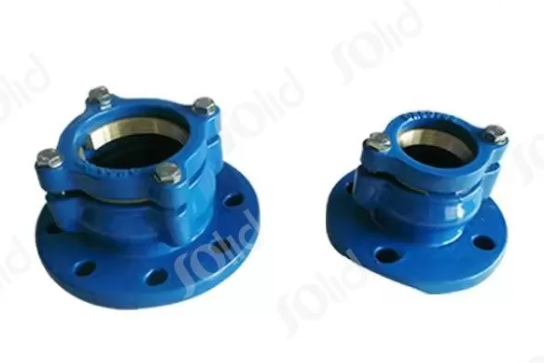

A restrained flange adaptor is a specialized pipe fitting designed to connect plain-end pipes to flanged equipment while simultaneously preventing axial pipe movement caused by internal pressure, surge loads, or external forces. Unlike standard flange adaptors that rely primarily on bolts and gaskets for sealing, restrained flange adaptors include mechanical gripping systems or restraint mechanisms that lock the pipe in place and resist pull-out forces. This additional restraint dramatically improves the integrity of pipeline systems operating under demanding conditions.


One of the biggest advantages of restrained flange adaptors is their ability to enhance pipeline safety under high-pressure conditions. In industrial water systems, water hammer events and sudden pressure surges can create significant thrust forces inside the pipeline. Without proper restraint, pipes may shift, separate, or experience joint failure. Restrained flange adaptors are specifically engineered to absorb and resist these forces, maintaining joint integrity even when pressure fluctuations occur. Many modern designs are rated for pressures up to 350 PSI or higher and include safety factors that exceed standard industry requirements.


Another important benefit is improved resistance against pipe pull-out. In buried pipelines and underground utility systems, soil movement, vibration, seismic activity, or thermal expansion can gradually loosen traditional flange connections over time. Restrained flange adaptors use wedge-style grips, stainless steel fasteners, or integrated restraint rings to create a secure mechanical lock between the pipe and the adaptor body. This prevents axial displacement and helps maintain stable alignment throughout the pipeline system.


Industrial water systems particularly benefit from restrained flange technology because these systems often operate continuously under varying flow rates and pressure conditions. Municipal water treatment facilities, desalination plants, wastewater systems, and industrial cooling networks require leak-free performance over long operational cycles. Even minor connection failures can result in water loss, contamination risks, and expensive repairs. Restrained flange adaptors reduce these risks by providing long-term sealing stability and superior mechanical strength compared to conventional flange adaptors.


In the oil and gas industry, pipeline reliability directly affects environmental safety and operational efficiency. High-pressure transmission lines transporting crude oil, natural gas, or chemical fluids are exposed to intense mechanical stress and fluctuating temperatures. A failed connection can cause severe environmental damage, production interruptions, and major financial losses. Restrained flange adaptors provide an additional layer of security by minimizing the possibility of joint separation under extreme operating conditions. Their ability to maintain a stable connection even during vibration or pressure surges makes them ideal for refinery pipelines, offshore installations, and industrial process piping.


Fire protection systems are another area where restrained flange adaptors play a vital role. Fire suppression pipelines must remain fully operational during emergencies when water pressure can rise suddenly. Any joint failure during a fire event could seriously reduce system effectiveness. Because restrained flange adaptors are designed to resist thrust forces and maintain tight sealing performance, they are commonly used in fire protection infrastructure where reliability is essential. Some restrained flange adaptor systems are also UL listed and FM approved for specific fire protection applications.


Another reason restrained flange adaptors are widely adopted is their compatibility with multiple pipe materials. Modern pipeline systems frequently combine ductile iron, steel, PVC, HDPE, and PE pipes within the same network. Standard flange connections may require different fittings or transition components for each material type, increasing installation complexity. Wide-range restrained flange adaptors simplify this process by accommodating multiple pipe materials and outside diameter tolerances within a single solution. This versatility reduces inventory requirements and speeds up installation on construction sites.


Installation efficiency is another major advantage. Many restrained flange adaptors are designed for quick assembly without requiring special tools or extensive pipe preparation. Some products allow for field pipe cutting and angular deflection adjustments, helping contractors handle alignment challenges during installation. Reduced installation time not only lowers labor costs but also minimizes downtime during pipeline maintenance or system upgrades.


Corrosion resistance also contributes significantly to pipeline stability and service life. Industrial environments often expose pipelines to moisture, chemicals, saltwater, or aggressive soil conditions. To combat corrosion, many restrained flange adaptors feature fusion bonded epoxy coatings, galvanized fasteners, stainless steel components, or specialized protective coatings. These materials help extend the lifespan of the connection while reducing maintenance frequency and replacement costs.


From an engineering perspective, restrained flange adaptors also provide flexibility in system design. Because they can tolerate limited pipe deflection and misalignment, they help reduce stress concentrations within the pipeline. This flexibility is especially valuable in large-scale infrastructure projects where exact alignment may be difficult to achieve due to terrain conditions or existing utility layouts. Properly restrained systems are also more capable of handling dynamic operational loads over time, contributing to overall network resilience.


Field experience from wastewater and municipal engineers further highlights the importance of restrained pipeline connections. Industry discussions frequently point out that high-pressure testing and surge conditions can expose weaknesses in poorly restrained joints, especially in large-diameter systems. Engineers often choose restrained flange adaptors specifically to improve safety margins and reduce the risk of joint failure during pressure testing or emergency operating conditions.


As pipeline infrastructure continues to expand worldwide, the demand for safer and more reliable pipe connection technologies will continue growing. Water utilities are upgrading aging networks, industrial facilities are increasing pressure capacities, and energy companies are investing in more durable pipeline systems. In all these sectors, restrained flange adaptors offer a practical solution for improving connection security, reducing maintenance costs, and enhancing long-term operational stability.


Choosing the right restrained flange adaptor requires careful consideration of pipeline pressure ratings, pipe material compatibility, corrosion resistance, operating temperature, and installation environment. Engineers should also ensure compliance with relevant industry standards such as ANSI, AWWA, ASTM, and ISO specifications to guarantee long-term performance and safety.


Ultimately, restrained flange adaptors are far more than simple pipeline accessories. They are critical safety components that protect infrastructure, reduce operational risks, and improve the reliability of high-pressure pipeline systems. For industries where pipeline failure is simply not an option, investing in high-quality restrained flange adaptors is an essential step toward achieving safer, more stable, and longer-lasting pipeline performance.
