How Does a Self-Locking Universal Coupling Prevent Pipe Pull-Out?

A self-locking universal coupling prevents pipe pull-out by combining two separate functions inside one mechanical joint: an elastomeric gasket seals the pipe, while metal gripping elements lock onto the pipe’s outside surface and resist axial movement.

When internal pressure, vibration or an external pulling force tries to separate the pipes, the gripping elements wedge more firmly between the coupling and the pipe. The axial load is therefore transferred through the locking mechanism and coupling body instead of relying only on friction from the rubber gasket.

This distinction is important. A standard universal coupling may create a reliable watertight connection but does not necessarily provide axial restraint. A self-locking or restrained universal coupling is specifically designed to seal the joint and prevent the connected pipe ends from pulling apart.

Why Can a Pressurized Pipe Pull Out of a Coupling?

Water pressure acts in every direction inside a pipeline. At a closed end, valve, bend, tee, reducer or unrestrained joint, part of that pressure becomes an axial force pushing the pipe away from the connection.

A simplified calculation for pressure thrust is:

Axial thrust = Internal pressure × Internal pipe area

Or:

F = P × πD²/4

Where:

• ·  F is the axial force.

• ·  P is the internal design pressure.

• ·  D is the effective internal pipe diameter.

For example, a pipeline with a 200 mm effective internal diameter operating at 1.6 MPa can generate approximately:

F = 1,600,000 × π × 0.2²/4 ≈ 50,300 N

That is more than 50 kN, approximately equivalent to 5.1 tonnes-force. This is a simplified example and does not include water hammer, temperature effects, external loading or other design factors.

Pull-out risk can become higher under the following conditions:

• ·  Pump startup and shutdown

• ·  Rapid valve closure

• ·  Pressure surges and water hammer

• ·  Open-trench pressure testing

• ·  Settlement or movement of buried pipelines

• ·  Thermal expansion and contraction

• ·  Poor pipe support or misalignment

• ·  Vertical or suspended pipe installation

• ·  Connections near bends, tees, reducers and dead ends

• ·  Flexible PE pipe expansion, contraction or deformation

If a coupling provides only sealing, these forces must be resisted by thrust blocks, anchors, tie rods or another external restraint system. A self-locking universal coupling incorporates axial restraint directly into the joint.

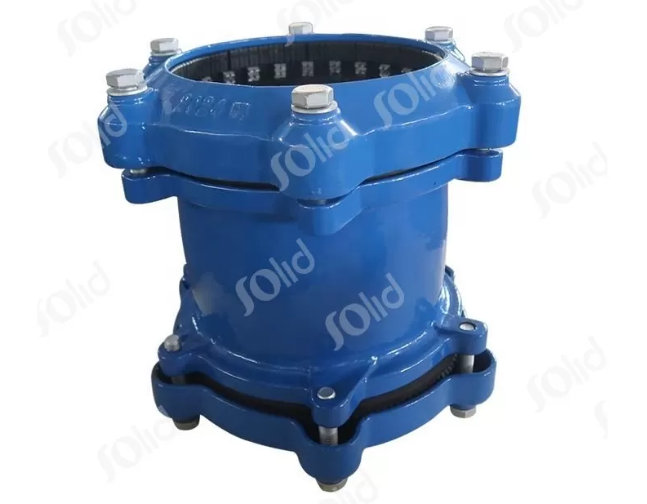

Main Components of a Self-Locking Universal Coupling

Although the exact construction varies between manufacturers, most self-locking universal couplings contain the following components.

1. Coupling Body

The body bridges the gap between two plain-ended pipes and transfers loads from one side of the joint to the other. Ductile iron is frequently used because it provides high mechanical strength while accommodating the complex shape of a wide-tolerance coupling.

The body is normally protected by an epoxy or another corrosion-resistant coating suitable for the intended installation environment.

2. End Rings or Glands

End rings are drawn toward the coupling body as the bolts are tightened. This movement compresses the gasket and activates the gripping components around the pipe circumference.

A coupling with independent end-ring compression allows each pipe end to be tightened separately. This can be useful when connecting pipes with different outside diameters within the approved tolerance range.

3. Elastomeric Gaskets

The gasket forms the pressure seal between the coupling and the pipe surface. Depending on the transported medium and operating temperature, common gasket materials may include:

• ·  EPDM for many water and wastewater applications

• ·  NBR for certain oils, fuels and hydrocarbon-containing fluids

• ·  Other elastomers for chemicals, higher temperatures or specialized service

The gasket should not be treated as the primary pull-out restraint. Its main job is sealing. Mechanical grip elements provide the axial locking function.

4. Metal Grip Blocks, Segments or Teeth

Grip elements are positioned around each pipe end. Depending on the design, they may be individual metal blocks, serrated inserts, wedges, toothed segments or a continuous grip ring.

As the coupling is tightened, these components contact the pipe surface. When an axial load tries to move the pipe, the geometry of the grip elements converts part of that movement into additional radial clamping force.

5. Bolts and Nuts

The bolts generate the initial clamping load needed to compress the gaskets and position the gripping elements. Correct tightening is essential because insufficient torque may leave the grips only partially engaged, while excessive or uneven tightening may damage the gasket, pipe or coupling components.

How the Self-Locking Mechanism Works Step by Step

Step 1: The Pipe Enters the Coupling’s Working Range

The prepared pipe ends are inserted into the coupling. Their measured outside diameters must fall within the coupling’s specified minimum and maximum OD range.

This wide-tolerance capability allows one coupling design to connect several pipe materials or outside diameters, provided that each combination is explicitly approved by the manufacturer.

Step 2: Bolt Tightening Compresses the Gasket

As the bolts are tightened, the end rings move inward and compress the elastomeric gaskets around the pipe surfaces.

This creates the initial low-pressure seal. In pressure-assisted gasket designs, increasing line pressure can further energize the gasket and strengthen the seal.

Step 3: The Metal Grip Elements Contact the Pipe

The same tightening action moves the metal grip blocks or toothed restraint elements into contact with the pipe’s outside surface.

The teeth may create controlled local engagement with a metallic pipe surface. For plastic pipe, a compatible restraint design must distribute the force without creating unacceptable point loading or pipe-wall deformation.

Step 4: Axial Movement Activates the Wedge Effect

When pressure tries to push the pipes apart, the pipe begins to load the grip elements in the axial direction.

Because the gripping elements are positioned at a designed angle, the axial force causes them to wedge between the pipe and the coupling. This produces greater radial contact pressure and stronger mechanical engagement.

In simple terms:

More outward pipe force creates more gripping action—up to the coupling’s verified restraint and pressure limits.

This load-responsive behavior is why the connection is described as self-locking. It does not mean that the coupling has unlimited capacity or that correct bolt torque is unnecessary.

Step 5: The Coupling Transfers the Axial Load

Once activated, the load path is:

Pipe surface → grip elements → end ring → coupling body → opposite end ring → connected pipe

The coupling body carries the load across the joint, preventing the two pipe ends from separating.

The gasket continues to seal the fluid, but it is not expected to carry the complete axial force.

Sealing and Restraint Are Different Functions

A common purchasing mistake is assuming that every leak-tight coupling is also pull-out resistant. These are different performance requirements.

A standard universal coupling can be appropriate where the pipes are already restrained by soil, anchors or structural supports. A self-locking universal coupling is more appropriate where the joint itself must resist an axial pulling force.

What Determines the Actual Pull-Out Resistance?

The presence of metal teeth does not automatically guarantee reliable restraint. Pull-out performance depends on the complete interaction between the coupling, pipe and installation conditions.

Pipe Material

Grip elements that work on ductile iron or steel may not be suitable for PVC or PE. Metallic pipes can tolerate controlled tooth engagement, while plastic pipes require carefully designed gripping geometry to avoid excessive stress concentration.

The supplier must confirm compatibility for the exact pipe material—not only the nominal diameter.

Actual Pipe Outside Diameter

The nominal pipe size is not enough for selecting a wide-tolerance coupling. Pipes with the same DN may have different outside diameters depending on their material, standard and pressure class.

Measure the actual OD at multiple positions around both pipe ends. The maximum and minimum measurements should remain within the coupling’s approved range.

Pipe Wall Thickness and Stiffness

Thin-wall pipe is more vulnerable to deformation under radial clamping force. The required pipe wall thickness, PVC pressure class or PE SDR should be checked before installation.

For HDPE pipe, an internal pipe stiffener may be required. The stiffener supports the pipe wall against gasket and grip compression, helping maintain both sealing and restraint.

Surface Condition

The gasket and grip elements need a suitable contact surface. Remove:

• ·  Loose rust

• ·  Soil and scale

• ·  Grease or oil

• ·  Sharp projections

• ·  Damaged coating

• ·  Tape and temporary wrapping

• ·  Deep scratches in the gasket sealing zone

The pipe does not always need to be polished, but it must meet the surface requirements in the installation instructions.

Operating and Surge Pressure

Coupling selection should be based on the maximum design pressure, not only the normal operating pressure.

The calculation should consider:

• ·  Static pressure

• ·  Pump shut-off pressure

• ·  Test pressure

• ·  Water hammer

• ·  Vacuum conditions, if applicable

• ·  External loads

• ·  Relevant safety factors

A PN16 coupling must not automatically be assumed suitable for every system operating below 16 bar. Material, pipe size, temperature, installation and surge conditions can affect the allowable rating.

Angular Deflection

Wide-tolerance couplings may permit limited angular deflection, but the published value must not be treated as a target installation angle.

Excessive deflection can produce uneven gasket compression, reduce insertion depth and concentrate forces on only part of the gripping mechanism. Align the pipes as closely as practical and remain within the manufacturer’s limit.

Bolt Torque and Tightening Sequence

Grip performance begins with correct bolt preload. Use a calibrated torque wrench and follow the specified tightening sequence.

Tightening one side fully before the other can cause:

• ·  Uneven gasket compression

• ·  Coupling displacement

• ·  Reduced grip engagement

• ·  Excessive angularity

• ·  Leakage during testing

Alternate between bolts in small increments until the required torque and end-ring position are achieved.

Installation Checklist for Preventing Pipe Pull-Out

A reliable restrained joint starts before the coupling is placed over the pipe.

Before Installation

1. Confirm the pipe material, OD, wall thickness and pressure class.

2. Check that the coupling is rated for both sealing and axial restraint.

3. Verify the operating, surge and pressure-test conditions.

4. Confirm gasket compatibility with the transported medium and temperature.

5. Check whether PE or another flexible pipe requires an internal stiffener.

6. Inspect all grip elements, gaskets, bolts and coated surfaces for damage.

7. Isolate, drain and depressurize the pipeline.

During Pipe Preparation

1. Cut pipe ends square.

2. Deburr sharp edges.

3. Clean the complete gasket and grip-contact areas.

4. Measure pipe ovality and OD at several positions.

5. Mark the required insertion depth on each pipe.

6. Support the pipes so their weight is not carried by the coupling during assembly.

During Assembly

1. Position the coupling without damaging or folding the gasket.

2. Maintain the specified pipe-end gap.

3. Keep both pipe ends within the required insertion zone.

4. Use only the gasket lubricant permitted by the manufacturer.

5. Align the pipes without exceeding the allowable deflection.

6. Tighten bolts gradually and evenly.

7. Apply the specified final torque with a calibrated tool.

8. Check that the coupling remains centered after tightening.

During Pressure Testing

1. Make sure all personnel remain clear of the pipe-end thrust direction.

2. Fill and vent the pipeline according to the approved test procedure.

3. Increase pressure gradually rather than applying full test pressure suddenly.

4. Observe the insertion-depth marks for any unexpected axial movement.

5. Inspect the coupling for gasket extrusion, leakage or uneven end-ring position.

6. Recheck the installation according to the manufacturer’s instructions after testing.

Common Reasons a Self-Locking Coupling Still Fails

Incorrect Coupling Size

If the pipe OD is below the minimum range, the grip elements may not engage deeply enough. If the OD is above the maximum range, the coupling may not assemble correctly or provide uniform compression.

Insufficient Bolt Torque

Under-tightening can leave both the gasket and grip system partially activated. The joint may appear acceptable at low pressure but move when the pipeline reaches test or surge pressure.

Excessive or Uneven Torque

Over-tightening does not necessarily improve restraint. It can deform plastic pipe, damage the gasket, overload bolts or force the grip elements into an incorrect position.

Wrong Grip Components

Different pipe materials may require different grip blocks or inserts. A coupling body that fits several pipe materials does not mean that the same gripping components are suitable for all of them.

Missing HDPE Stiffener

Without the required internal support, an HDPE pipe end may deform inward. This reduces gasket compression and can allow the grip system to lose effective engagement.

Poor Pipe Surface Preparation

Heavy corrosion, loose coating, grease or deep surface damage can interfere with the grip and sealing zones.

Excessive Pipe-End Gap

If the pipe is not inserted far enough, the grips may engage too close to the pipe end. This reduces the effective contact area and increases the risk of local pipe damage or pull-out.

Pressure Surge Above the Design Limit

A coupling selected only for normal working pressure may be overloaded during pump trips, rapid valve closure or pressure testing.

Unsupported Bending or Torsion

A restrained coupling can resist a specified axial force, but it should not automatically be expected to support pipe weight, severe bending, torsion or equipment nozzle loads. Adequate pipe supports, guides and anchors may still be necessary.

Does a Self-Locking Coupling Eliminate Thrust Blocks?

Not automatically.

A restrained coupling can transfer axial force across one joint, but a pipeline is a complete structural system. Bends, tees, reducers, valves and dead ends generate unbalanced forces that must be carried through restrained joints, anchors, soil resistance, structural supports or a combination of these measures.

Thrust blocks may be reduced or removed only when the pipeline designer confirms that:

• ·  All affected joints are adequately restrained.

• ·  The restrained length is sufficient.

• ·  Pipe and fitting pressure ratings are suitable.

• ·  Soil and installation conditions have been considered.

• ·  Surge loads are included.

• ·  The joint restraint system has verified capacity.

Replacing one conventional coupling with a self-locking model does not make every connected fitting self-restrained.

When Should You Specify a Self-Locking Universal Coupling?

This type of coupling is particularly useful for:

• ·  Municipal water distribution pipelines

• ·  Water transmission mains

• ·  Wastewater and sewage pipelines

• ·  Pump stations

• ·  Fire-water networks

• ·  Open-trench pressure testing

• ·  Pipeline renovation and emergency replacement

• ·  Connections between different pipe materials

• ·  Vertical pipeline sections

• ·  Industrial utility water systems

• ·  Locations where constructing a concrete thrust block is difficult

• ·  Sites requiring fewer coupling sizes in maintenance inventory

It is especially valuable when a project needs both wide OD tolerance and axial restraint in one joint.

Information to Give the Coupling Supplier

To receive an accurate recommendation, provide more than the nominal pipe diameter.

A complete inquiry should include:

• ·  Pipe material on both sides

• ·  Actual outside diameter of each pipe

• ·  Pipe wall thickness, pressure class or SDR

• ·  Normal operating pressure

• ·  Maximum surge pressure

• ·  Pressure-test requirement

• ·  Transported medium

• ·  Minimum and maximum temperature

• ·  Required angular deflection

• ·  Above-ground or buried installation

• ·  Horizontal or vertical pipe orientation

• ·  Applicable standards and approvals

• ·  Coating or potable-water requirements

• ·  Quantity and delivery schedule

For replacement projects, pipe photographs and circumferential OD measurements can help identify corrosion, ovality and dimensional differences before the coupling is manufactured or shipped.

Frequently Asked Questions

Can an ordinary universal coupling prevent pipe pull-out?

Not unless it is specifically designed, tested and rated as a restrained or tensile-resistant coupling. A conventional universal coupling normally relies on the gasket for sealing and requires external restraint where axial movement is possible.

Why is it called self-locking?

The grip geometry converts an outward axial force into stronger radial engagement with the pipe. As the pipe loads the restraint mechanism, the wedges, blocks or teeth tighten their grip within the coupling’s rated capacity.

Does increasing pressure always increase the grip?

Many restraint mechanisms become more firmly engaged as axial load increases. However, the coupling must never be operated above its approved pressure, temperature or pull-out rating.

Can one coupling connect steel pipe to PVC or ductile iron?

A wide-tolerance model may connect different pipe materials when both outside diameters fall within its range. The grip elements, gasket, pipe-wall requirements and pressure rating must also be approved for that specific combination.

Can it be used on HDPE pipe?

Only when the coupling and gripping system are approved for the specified PE grade, OD and SDR. An internal pipe stiffener may also be required.

Will the grip teeth damage the pipe?

Correctly selected grip elements are designed to create controlled engagement. Damage can occur if the wrong insert is used, the pipe wall is too thin, a required stiffener is omitted or the bolts are over-tightened.

Can a self-locking coupling accommodate misalignment?

Most wide-tolerance designs permit limited angular deflection, but the allowable value is product-specific. Misalignment should be minimized rather than deliberately installed at the maximum limit.

Can the coupling be reused?

Reuse depends on the design and the condition of the body, bolts, gaskets and grip components. Any components that are worn, corroded, distorted or damaged should be replaced according to the manufacturer’s instructions.

How can pull-out resistance be verified on site?

Confirm the product rating and installation torque, mark both pipe insertion depths and perform a controlled pressure test. Any movement of the pipe relative to the coupling should be investigated before the pipeline enters service.

Final Takeaway

A self-locking universal coupling prevents pipe pull-out by separating sealing from restraint. The compressed gasket maintains a leak-tight joint, while metal grip blocks, segments or teeth mechanically engage the pipe. When internal pressure or an external force attempts to move the pipe axially, the grip geometry converts that force into stronger radial locking and transfers the load through the coupling body.

Reliable performance still depends on correct pipe measurements, compatible gripping elements, proper surface preparation, controlled bolt torque, pressure-surge evaluation and the use of pipe stiffeners where required.

For water supply, wastewater, fire protection and industrial pipeline projects, Solid Group provides self-locking universal couplings with project-based size selection, pipe-material matching and technical support—contact our team with your pipe OD, material and pressure requirements to receive a suitable connection solution.
