How are Rigid and Flexible Pipe Couplings Different?

Piping systems rely on joints that are simple to install, strong under pressure, and—depending on need—either allow movement or lock it out. Two common families of grooved (mechanical) couplings are rigid and flexible couplings. They look similar from the outside, but their internal geometry and gasket/ clamp fit determine whether a joint will allow movement, absorb vibration, or act like a near-welded connection. Understanding the difference helps you pick the right coupling for safety, longevity, and code compliance.

Quick summary:

• Rigid couplings: Designed to permit almost no axial separation, rotation or angular movement—they behave like a fixed connection and are used where alignment and rigidity are required (for example many risers and branch runs).

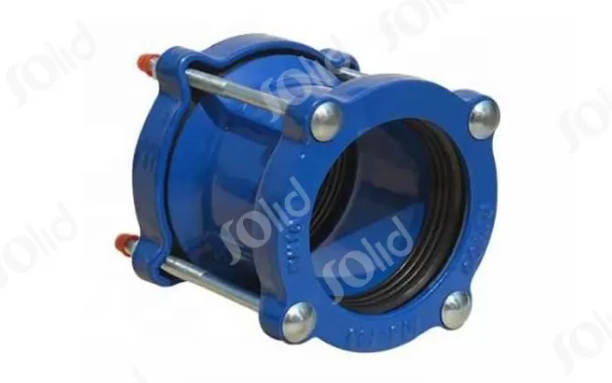

• Flexible couplings: Intentionally allow controlled linear and angular movement to accommodate thermal expansion, building settlement, vibration, or seismic motion while maintaining a seal. They’re common in HVAC, flexible sprinkler connections, and anywhere some pipe movement is expected.

A quick history: why we have both types

The grooved mechanical coupling (the style many manufacturers still use today) was invented in the early 20th century to speed installation and avoid welding or threading. The first grooved couplings emphasized flexibility because most systems needed some movement allowance; later, as industries (oil, fire protection, HVAC) demanded higher-pressure or more rigid joints, manufacturers developed dedicated rigid couplings to meet those needs. That evolution explains why both types remain widely used.

How the two differ — inside the joint

From the outside many grooved couplings look identical. The difference is in the gasket shape, groove tolerance, and clamp design inside the housing:

• ·  A rigid coupling has a gasket and clamp fit that prevents pipe separation and limits angular deflection—creating a connection with near-zero movement.

• ·  A flexible coupling has a narrower key fit and a housing/gasket that leaves small clearance for axial and angular motion while keeping a reliable pressure seal.

Why you might choose flexible vs rigid

Flexible coupling strengths

• ·  Absorbs vibration and shock (protects valves and piping equipment).

• ·  Allows thermal expansion/contraction without overstressing hangers and anchors.

• ·  Provides angular deflection to ease alignment during installation.

• ·  Important in seismic design and for sprinkler systems that must survive building movement.

Rigid coupling strengths

• ·  Provides a nearly fixed joint—useful when you need consistent alignment or where the piping must act like a continuous run (e.g., some risers, structural supports).

• ·  Often has slightly higher pressure containment and is preferred where movement would impair performance.

Downsides

• ·  Using rigid couplings in long runs with thermal cycling can create large stresses unless thermal expansion is otherwise handled.

• ·  Using flexible couplings where precise alignment or torque transmission is required (or where you must prevent any movement) can allow unwanted deflection.

Rules you need to know

For certain systems (notably fire sprinkler systems), codes and standards explicitly reference allowable deflection or separation in grooved couplings. NFPA guidance and fire-protection materials commonly explain which couplings meet seismic or system-rigidity requirements. Always check the applicable code (NFPA, local plumbing/mechanical codes, and manufacturer datasheets) and confirm the coupling’s rating for pressure, seismic listing, and temperature range before specifying.

How to choose the right coupling: step by step

1. Define system requirements: pressure, temperature, seismic zone, expected thermal movement, and vibration sources.

2. Ask whether joints must remain immobile: for risers and structural piping choose rigid couplings. If movement or vibration is expected, choose flexible couplings.

3. Check manufacturer data: confirm pressure rating, tested movement allowances, and any listings (UL, FM, or seismic certifications).

4. Design anchors & expansion points: even flexible-coupled systems need proper hanger spacing and anchors—flexibility is not a substitute for missing anchors.

5. Field check: in retrofit jobs, verify as-installed groove dimensions and gasket condition—appearance alone won’t tell you coupling type.

Common applications

• ·  Fire sprinkler systems: Rigid couplings are common for runs that must be stable; flexible couplings are used where seismic isolation or vibration resilience is required.

• ·  HVAC piping: Flexible couplings help accommodate thermal growth and pump vibration.

• ·  High-pressure oil/gas lines or structural risers: Rigid couplings or specially rated rigid grooved joints provide the needed stiffness and pressure handling.

FAQs

Q: Can a flexible coupling be used as a rigid coupling?
A: No — while they look similar, their internal fit and gasket geometry are different; a flexible coupling permits movement and may not provide the fixed behavior required where a rigid coupling is specified.

Q: How do I tell which coupling I have on site?
A: Outside appearance can be deceiving. Check the manufacturer part number, product datasheet, or groove/gasket details to verify whether a coupling is rigid or flexible.

Conclusion

Rigid and flexible couplings are complementary tools. Rigid couplings create near-permanent, stiff joints; flexible couplings tolerate movement, reduce stress, and improve system resilience in seismic or vibrating environments. The right choice depends on system function, code requirements, and the manufacturer’s rated performance—so always consult datasheets and a piping engineer when in doubt.
