Flange Adaptor vs Coupling: Key Differences You Need to Know

The reliability and operational efficiency of industrial piping systems depend heavily on the quality of their connection components. Among the most commonly used solutions are flange adaptors and pipe couplings. While both serve the purpose of connecting pipes, their functional principles, application scenarios, and performance characteristics differ significantly.

For procurement managers, EPC contractors, and design engineers, understanding these differences is essential when selecting suitable connection solutions for water treatment facilities, oil and gas processing plants, power generation systems, and large-scale construction projects. Choosing the correct component directly impacts installation efficiency, system stability, and long-term maintenance costs.

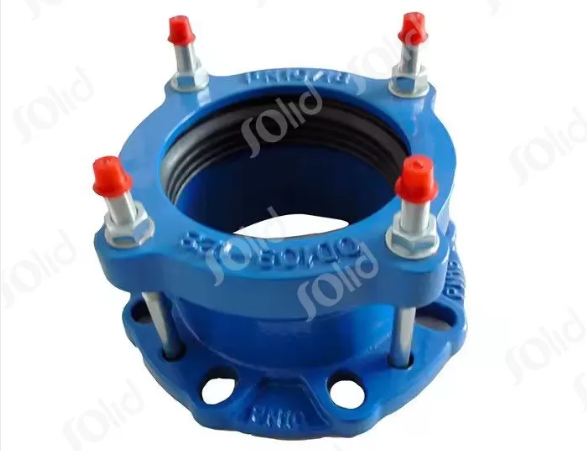

What Is a Flange Adaptor?

A flange adaptor is a mechanical fitting designed to connect a plain-end pipe to flanged equipment such as valves, pumps, or flanged pipelines. It provides a secure, pressure-resistant joint without the need for welding, making it particularly suitable for large infrastructure and retrofit projects.

Key characteristics of flange adaptors include:

• ·  Easy alignment between plain-end pipes and flanged components

• ·  Ability to accommodate minor angular or axial misalignment and absorb vibration

• ·  Faster and safer installation compared with welded connections, especially on site

In applications requiring specific flange configurations, flange adaptors are often used in conjunction with socket weld flanges for small-diameter piping or lap joint flanges where frequent disassembly and maintenance access are required.

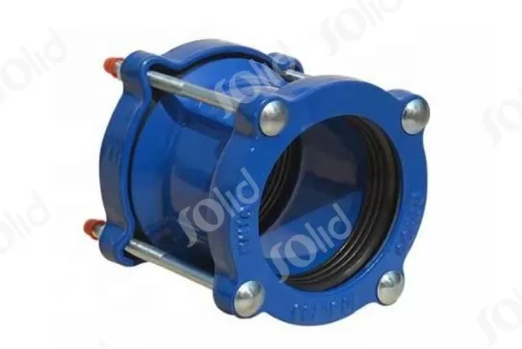

What Is a Coupling?

Couplings are used to connect two pipes end-to-end, whether the pipes are of the same diameter or different diameters. Unlike flange adaptors, couplings are not designed to connect pipes to flanged equipment; their sole purpose is to join two pipe sections together.

Depending on system requirements, pipe couplings can be rigid or flexible. Similar to decisions such as choosing between ball valves and gate valves, selecting the right type of coupling depends on operating conditions and application needs.

Because of their compact structure and cost efficiency, couplings are a practical, space-saving solution in applications such as desalination plants, power plants, and HVAC systems.

For higher strength and improved resistance in demanding conditions, couplings are often used together with carbon steel (CS) flanges or stainless steel backing rings to ensure durability in high-pressure applications.

Main Differences Between Flange Adaptors and Couplings

1. Scope of Application

Flange Adaptors: Typically used when a pipe needs to be connected to a flanged valve, pump, or other flanged equipment.

Couplings: Used to connect two pipes directly, whether the pipes are of the same or different materials.

2. Installation and Maintenance

Flange Adaptors: Allow for quick installation through bolted connections, reducing downtime in large or critical projects.

Couplings: Occupy less space and can be easily installed between two pipe ends, making them suitable for compact or small-scale systems.

3. Flexibility and Performance

Flange Adaptors: Capable of accommodating angular deflection, vibration, and minor pipe misalignment.

Couplings: Offer flexibility for pipe-to-pipe connections but are less suitable when connections to flanged equipment are required.

In certain piping systems, A105 slip-on flanges or A105 blind flanges are also used to improve sealing performance or to enable system isolation and shut-off when necessary.

Applications of Flange Adaptors and Couplings

Flange adaptors and couplings are used in different application scenarios:

Desalination Plants: Flange adaptors are used to connect pipes to pumps and filtration systems, ensuring leak-proof and secure joints.

Construction Projects: Couplings are commonly applied in drainage and HVAC installations, particularly in high-rise buildings.

Oil and Gas Facilities: Flange adaptors are used to connect large-diameter pipelines to valves and monitoring equipment, sometimes in combination with spectacle blinds or spade fittings for line isolation.

Water Transmission Piping Systems: Couplings provide a cost-effective solution for joining pipelines over long distances, especially when reinforced with carbon steel galvanized backing rings.

Installation Cost and Time Comparison

Cost and efficiency are key considerations during installation.

Flange Adaptors: These require additional components such as bolts and gaskets, which increase the initial cost. However, flange adaptors allow for faster pipe alignment and easy disassembly during maintenance, helping to reduce long-term operating costs. In systems requiring frequent inspection, spacer flanges are often used together with flange adaptors to minimize downtime.

Couplings: Couplings are generally more economical to purchase and install. Their compact size and reduced number of accessories lower both material and labor costs. In addition, their lightweight design makes them especially suitable for long-distance pipeline installations where strict cost control is required.

Benefits of Flange Adaptors

• ·  Easy and quick installation

• ·  Suitable for high-pressure applications

• ·  Provide strong, leak-proof connections

• ·  Absorb vibration, reducing system stress

In certain applications, flange adaptors are used together with brass flanges for improved corrosion resistance or with bi-metallic flanges when connecting pipes made from dissimilar metals.

Benefits of Couplings

• ·  Lightweight and compact in design

• ·  Cost-effective for long pipeline installations

• ·  Easy to replace or maintain

• ·  Capable of joining pipes made from different materials

For applications requiring long-term performance and added reliability, couplings can be used together with stainless steel (SS) flanges to provide enhanced security and durability.

Safety Factors & Industry Standards

Safety and compliance with international standards are important considerations when choosing between flange adaptors and couplings.

Flange Adaptors: Used in safety-critical systems, flange adaptors are manufactured in accordance with ASME and DIN standards to ensure structural strength and leak-free performance. Spectacle blinds or spade fittings are commonly installed to allow system isolation during maintenance, reducing the risk of accidents.

Couplings: Manufactured to ISO and ANSI standards, couplings must be selected based on the required pressure class and operating temperature range. In corrosive or high-pressure environments, couplings are often reinforced and used together with carbon steel (CS) flanges or stainless steel backing rings to enhance overall safety.

Industry codes also recommend the use of A105 slip-on flanges or A105 blind flanges in shutdown or safety-related applications where effective pipeline isolation and control are required.

How to Choose Between a Flange Adaptor and a Coupling

When selecting the appropriate connector for your project, consider the following factors:

Type of Connection: When connecting pipes to flanged equipment, a flange adaptor should be used. For standard pipe-to-pipe connections, a coupling is recommended. Pipe couplings connect two spigot pipe ends, while flange adaptors connect a flanged end to a spigot pipe.

System Pressure: Flange adaptors are suitable for higher-pressure systems, whereas couplings are more appropriate for moderate-pressure applications.

Space Constraints: Couplings are preferred where installation space is limited and there is insufficient clearance for flanges.

Maintenance Requirements: Flange adaptors can be easily dismantled, making them ideal for facilities that require regular inspection and maintenance. In such cases, spacer flanges are often incorporated to simplify maintenance operations.

Why Industries Opt for Dependable Connectors

Industrial environments demand efficiency, reliability, and cost control. With continued investment in energy, oil and gas, and large-scale infrastructure development, leak-proof and durable piping connections have become a critical priority. Whether flange adaptors or couplings are selected depends on system performance requirements, maintenance frequency, and long-term service life expectations.

FAQs

1. What is the difference between a coupling and an adaptor?
A coupling is used to join two pipes or shafts of the same size or type, whereas an adaptor is designed to connect pipes or fittings of different sizes, materials, or connection types.

2. What is the difference between a coupling and a flange adaptor?
A coupling directly connects two pipe ends, while a flange adaptor connects a plain-end pipe to a flanged component, allowing easier assembly and disassembly.

3. What is the purpose of a flange adaptor?
A flange adaptor enables a plain pipe end to be connected to valves, pumps, or other flanged equipment, offering flexibility in installation and facilitating maintenance.

4. What is the difference between a coupling joint and a flange joint?
A coupling joint provides an inline connection that may be permanent or semi-permanent, whereas a flange joint is bolted, offering higher strength and allowing easy dismantling for inspection and maintenance.

Final Thoughts

Choosing between flange adaptors and couplings is not solely a matter of cost, but one of long-term system performance and reliability. Flange adaptors are well suited for connections to flanged equipment and for high-pressure applications, while couplings are ideal for straightforward pipe-to-pipe connections.

Both components play essential roles in industrial infrastructure, from water treatment facilities to high-rise HVAC systems. By understanding their differences and application scenarios, engineers and decision-makers can make informed choices that ensure safety, durability, and operational efficiency in critical projects.
