Ductile Iron Flexible Couplings Installation Made Easy for Water Supply Systems

To install ductile iron flexible couplings in your water supply system, start with clean pipes and proper alignment. Always follow manufacturer instructions and relevant standards for safety. Careful preparation and thorough inspection help you achieve a secure, leak-free connection every time. Your attention to detail ensures long-lasting performance.

Ductile Iron Flexible Couplings Overview

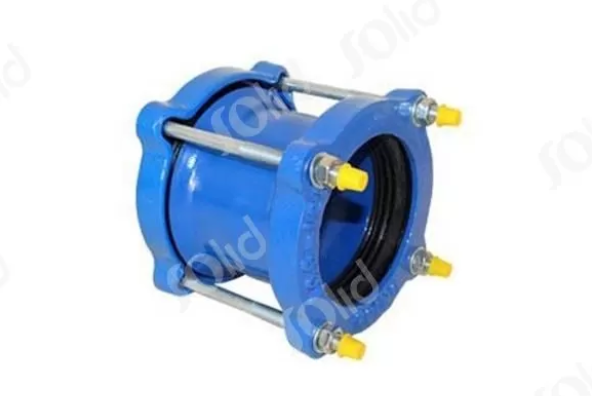

Ductile iron flexible couplings connect pipes in water supply systems. You use these couplings to join sections of ductile iron pipe, creating a secure and leak-resistant link. The design allows for movement and absorbs stress, which helps protect your system from damage. Underground installations often face shifting soil and temperature changes. Ductile iron flexible couplings handle these challenges by providing both strength and adaptability.

Features

• High-strength ductile iron construction resists corrosion and impact.

• Flexible design accommodates minor misalignment and ground movement.

• Grooved ends fit standard pipe grooves, making installation straightforward.

• Rubber gaskets create a watertight seal.

• Bolted clamps ensure a tight and secure connection.

Tip: Always check that the coupling matches the pipe size and groove standard before installation.

Benefits

You gain several advantages when you choose ductile iron flexible couplings for your water supply system:

Ductile iron flexible couplings give you peace of mind. You know your water supply system can handle pressure changes and ground movement without failing.

Tools and Materials

Before you start pipe installation, gather all the necessary tools and materials. Having the right equipment helps you work efficiently and safely. You also reduce the risk of mistakes or delays.

Tools List

You need several basic tools for ductile iron flexible couplings. Here is a checklist to help you prepare:

• Tape measure: Check pipe lengths and distances.

• Pipe cutter or saw: Cut pipes to the correct size.

• Deburring tool or file: Smooth pipe edges after cutting.

• Torque wrench: Tighten bolts to the manufacturer’s recommended torque.

• Socket set or spanners: Fit and secure bolts and nuts.

• Marker or chalk: Mark alignment points on pipes.

• Clean rags: Wipe dirt and debris from pipe ends and couplings.

• Level: Ensure pipes stay straight during assembly.

Tip: Organize your tools before you begin. This step saves time and keeps your workspace safe.

Safety Gear

You must protect yourself during every stage of the job. Always wear the right safety gear when handling ductile iron couplings and pipes.

You should inspect your safety gear before each use. Replace any damaged items right away. Safety always comes first in every pipe installation project.

Preparation

Trench Setup

You need to start with a well-prepared trench. A proper trench gives your water supply system a strong foundation. Dig the trench to the depth and width specified by your project plans. Make sure the bottom of the trench is smooth and free from sharp rocks or debris. Place a layer of sand or fine gravel at the base. This bedding supports the pipe and helps prevent damage.

Check the trench for standing water. Remove any water before you lay the pipes. Wet conditions can cause pipes to shift or settle unevenly. Keep the trench walls stable to avoid collapse. If you work in a busy area, use barriers or warning signs to keep the site safe.

Tip: Always follow local codes and safety guidelines when digging and working in trenches.

Inspection

Before you install any pipes or couplings, inspect each part carefully. Look for cracks, dents, or other visible damage on the pipes and couplings. Damaged parts can lead to leaks or failures later. Clean the pipe ends and grooves with a rag to remove dirt and debris.

Check that the grooves on the pipe ends match the AWWA C606 standard. Use a tape measure or groove gauge for accuracy. Proper grooves ensure a tight fit and prevent leaks. Review the manufacturer’s instructions for any special inspection steps.

Wear your safety gear during inspection. Gloves and safety glasses protect you from sharp edges and debris. Careful inspection now saves you time and trouble later.

Ductile Iron Flexible Couplings Installation Steps

Installing ductile iron pipes with flexible couplings requires careful attention to detail. You must follow each step to ensure a leak-free and durable water supply system. This section guides you through alignment, assembly, and tightening for a successful installation.

Alignment

Proper alignment sets the foundation for a secure connection. You need to position the pipes so that the ends meet evenly. Misaligned pipes can cause leaks and stress on the coupling.

1. Place the pipes in the trench. Make sure the bedding supports each pipe section.

2. Use a level to check that the pipes sit straight and at the correct grade.

3. Mark the pipe ends for reference. These marks help you align the coupling during installation.

4. Confirm that the grooves on the pipe ends match the coupling specifications. This step is essential for installing ductile iron pipes correctly.

Tip: Place flexible joints near flanged valves. This practice helps absorb thrust forces and protects your system from movement.

Assembly

You must assemble the coupling and gasket with precision. Gasket installation is a critical step for preventing leaks.

• Clean the pipe ends and grooves. Remove all dirt and debris.

• Inspect the gasket for damage. A damaged gasket can cause leaks.

• Slide the gasket onto the pipe end. Make sure it sits evenly in the groove.

• Position the coupling over the gasket and pipe ends. Align the coupling with your reference marks.

• Insert bolts and nuts into the coupling. Hand-tighten them to hold the assembly in place.

Gasket installation ensures a watertight seal. You should never skip this step or rush through it. Take your time to check the fit and alignment before moving to the next stage.

Tightening

Securing the coupling is the final step in the installation process. You need to tighten the bolts to the manufacturer’s recommended torque.

1. Use a torque wrench for accuracy. Tighten each bolt in a star pattern to distribute pressure evenly.

2. Check the gasket position as you tighten. The gasket should not twist or bulge.

3. Inspect the coupling for gaps. A properly tightened coupling sits flush against the pipe ends.

4. Recheck the alignment. Make adjustments if needed before completing the installation.

Note: After tightening, inspect the area around flanged valves. Flexible joints near these valves help your system handle thrust and movement.

You complete the installation by verifying that all bolts are secure and the coupling fits tightly. This process prevents leaks and ensures the long-term reliability of your water supply system. Installing ductile iron pipes with flexible couplings becomes straightforward when you follow these steps and pay attention to gasket installation.

Inspection and Testing

Pressure Test

You need to verify that your installation does not leak. Pressure testing helps you confirm the integrity of your ductile iron flexible couplings. Start by closing all valves and filling the pipe with water. Use a calibrated pressure gauge to monitor the test. Increase the pressure slowly to the level specified by the manufacturer or local standards. Hold this pressure for the recommended time, usually 15 to 30 minutes.

• Watch the gauge for any drop in pressure.

• Inspect the coupling area for visible leaks or moisture.

• Listen for hissing sounds that may indicate escaping water.

Tip: If you find a leak, mark the location and release the pressure. Tighten the bolts or adjust the gasket, then repeat the test.

A successful pressure test shows that your couplings and pipes hold water securely. You can move to the final inspection once you confirm no leaks.

Final Check

After pressure testing, you should perform a thorough final check. Walk along the entire pipe run and look at each coupling. Make sure every bolt is tight and the coupling sits flush against the pipe ends. Use a flashlight to inspect hard-to-see areas.

You ensure system integrity by checking every detail. A careful inspection gives you confidence that your water supply system will perform reliably for years.

Troubleshooting

Leaks

Leaks can happen even with careful installation. You should check for leaks right after pressure testing. If you see water around a coupling, act quickly. Start by tightening the bolts with a torque wrench. Make sure you use the correct pattern, usually a star shape, to apply even pressure. If the leak continues, inspect the gasket. A twisted or damaged gasket often causes leaks. Replace it if needed.

Tip: Always keep spare gaskets and bolts on hand. Quick repairs help you avoid bigger problems.

Misalignment

Misalignment can lead to leaks and stress on your pipes. You should check alignment before and after tightening the coupling. Use a level to make sure the pipes are straight. If you find misalignment, loosen the bolts and adjust the pipe position. Realign the pipes so the ends meet evenly. Tighten the bolts again and check the alignment one more time.

Common signs of misalignment:

• Uneven gaps between coupling and pipe

• Visible pipe bending

• Difficulty tightening bolts

Maintenance

Regular maintenance keeps your water supply system in good shape. Inspect couplings and pipes at set intervals. Look for rust, loose bolts, or worn gaskets. Clean dirt and debris from the area. Tighten any loose bolts with a torque wrench. Replace damaged parts right away.

Note: Good maintenance helps you prevent leaks and extend the life of your ductile iron flexible couplings.

• You prepare the trench and inspect all parts before starting.

• You align, assemble, and tighten couplings with care.

• You test for leaks and check every connection.

  Tip: Always follow standards and manufacturer instructions. If you have questions, ask a professional for help.
