Why Ductile Iron Flange Adaptors Are Widely Used in Water and Wastewater Pipelines

Water and wastewater pipeline systems contain much more than straight sections of pipe. Valves, pumps, flow meters, strainers, hydrants, treatment equipment and other flanged components must all be connected to the pipeline. In new construction, these connections can often be planned in advance. During pipeline extensions, equipment replacement and emergency repairs, however, contractors frequently need to connect a plain-end pipe to an existing flanged component under limited site conditions.

This is where a ductile iron flange adaptor becomes especially useful.

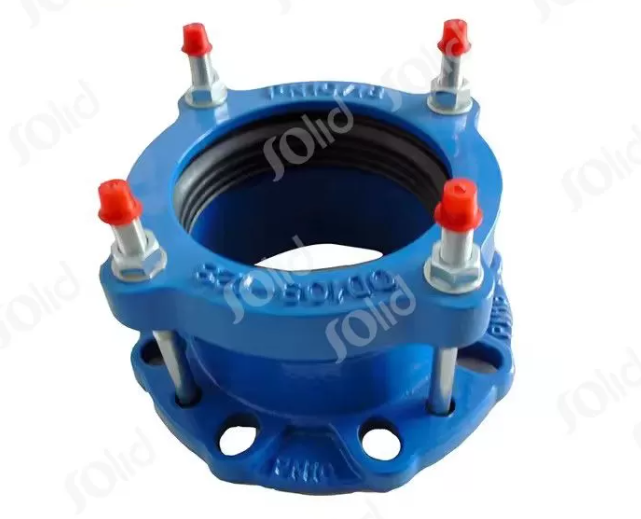

A ductile iron flange adaptor provides a mechanical transition between the plain end of a pipe and a flanged valve, pump, meter or fitting. Instead of requiring the pipe end to be threaded, welded or fitted with a separately fabricated flange, the adaptor uses a gasket, end ring and bolts to grip and seal around the outside diameter of the pipe. Its flanged end can then be bolted directly to the mating equipment.

Because of their strength, installation flexibility and compatibility with different pipeline materials, ductile iron flange adaptors are widely used in municipal water supply, wastewater treatment, drainage, irrigation and industrial water systems.

What Is a Ductile Iron Flange Adaptor?

A flange adaptor is different from a standard pipe coupling.

A pipe coupling normally connects two plain-end pipes. A flange adaptor connects one plain-end pipe to a flanged component. Typical connection points include:

• ·   Gate valves and butterfly valves

• ·   Pumps and pump discharge lines

• ·   Flow meters and water meters

• ·   Strainers and filters

• ·   Hydrants

• ·   Flanged tees, bends and reducers

• ·   Treatment skids and dosing equipment

During installation, the plain-end pipe is inserted into the adaptor body. As the bolts are tightened, the end ring compresses the elastomeric gasket around the pipe surface. This creates a sealed mechanical connection, while the flange face is bolted to the adjoining valve, pump or fitting.

International standards cover the dimensions, mechanical properties, coatings and performance requirements of ductile iron pipes, fittings, accessories and joints used in water applications. ISO 2531, for example, applies to water pipelines operating with or without pressure and installed above or below ground.

1. Ductile Iron Provides High Strength and Impact Resistance

One of the main reasons ductile iron is selected for flange adaptor bodies is its combination of strength and toughness.

Traditional grey cast iron is strong under compression but comparatively brittle. Ductile iron contains graphite in a nodular or spheroidal form, giving the material better resistance to deformation and impact. This makes ductile iron components better suited to demanding transportation, handling and installation conditions.

Pipeline fittings may be dropped, struck by tools, loaded unevenly or installed in deep chambers where working space is limited. They may also experience external soil loads, traffic loads, pressure fluctuations and vibration from pumps. Ductile iron provides the mechanical strength required to perform under these conditions without making the fitting excessively bulky.

The Ductile Iron Pipe Research Association identifies high strength, durability, impact resistance and the ability to withstand demanding operating conditions as important performance characteristics of ductile iron pipeline systems.

This toughness is particularly valuable in wastewater plants and underground municipal networks, where connection failure can lead to service interruptions, excavation work and costly environmental cleanup.

2. They Can Handle Pressurized Pipeline Conditions

Water distribution systems are commonly operated under pressure. In addition to normal working pressure, the pipeline may experience temporary pressure increases caused by pump starting, pump stopping, rapid valve closure or other changes in flow velocity.

These pressure surges can create significant forces at joints, valves, bends and pipeline transitions. The flange adaptor body, bolts, gasket and mating flange must therefore be selected as a complete connection system.

Ductile iron components are widely used because they can be manufactured for established pressure classes and flange drilling patterns. Depending on the adaptor design, common options may include PN10, PN16 and PN25 pressure ratings.

Pressure rating should never be selected from the pipe diameter alone. Engineers and buyers should also consider:

• ·   Maximum operating pressure

• ·   Possible surge pressure

• ·   Test pressure

• ·   Pipe outside diameter

• ·   Flange standard and drilling pattern

• ·   Whether axial restraint is required

• ·   Gasket material

• ·   Bolt material and grade

• ·   Installation temperature

• ·   Conveyed medium

Ductile iron pipeline design practices specifically account for internal pressure, surge allowance, external loads and deflection.

3. Flange Adaptors Simplify Connections to Valves and Pumps

Valves and pumps are commonly supplied with flanged ends because flange connections allow equipment to be installed, inspected and replaced more easily. The pipeline itself, however, may have a plain end.

Without a flange adaptor, the contractor may need to weld a flange to a steel pipe, install a special flanged spool or order a custom pipe section. These approaches can require additional fabrication, alignment work and site equipment.

A ductile iron flange adaptor provides a more direct mechanical connection. The installer can cut and prepare the pipe, position the adaptor, align it with the equipment flange, and tighten the bolts according to the specified sequence and torque.

This is particularly useful in:

• ·   Pump stations

• ·   Valve chambers

• ·   Water treatment plants

• ·   Wastewater treatment facilities

• ·   Pipeline rehabilitation projects

• ·   Emergency replacement work

• ·   Existing networks with limited shutdown periods

Reducing the need for site welding is especially helpful in wet trenches, confined spaces and locations where hot work permits are difficult to obtain.

4. Wide-Tolerance Designs Support Different Pipe Materials

Water and wastewater networks often contain several pipe materials. An older system may include cast iron or asbestos-cement pipe, while newer sections use ductile iron, steel, PVC-U, PE or GRP.

Even when two pipes have the same nominal diameter, their actual outside diameters may differ. For this reason, flange adaptor selection must be based on the measured pipe outside diameter rather than nominal size alone.

Wide-tolerance flange adaptors are designed to seal across a specified outside-diameter range. This can help contractors connect or replace pipeline sections without sourcing a fitting dedicated to only one exact pipe material.

EN 14525 specifically addresses wide-tolerance couplings and flange adaptors for pipes made from materials including ductile iron, grey iron, steel, PVC-U, PE and fibre cement.

This versatility provides several practical benefits:

• ·   Fewer dedicated adaptor sizes need to be stocked

• ·   Emergency maintenance teams can respond more quickly

• ·   Distributors can simplify inventory management

• ·   Contractors can work with mixed-material pipeline networks

• ·   Existing systems can be upgraded without replacing every pipe section

However, “universal” does not mean that one adaptor fits every pipe. Buyers must confirm the adaptor’s stated outside-diameter range, pressure rating and material compatibility before ordering.

When connecting PE pipe, an internal pipe support insert may also be required to prevent the pipe wall from deforming under gasket compression.

5. They Allow Limited Alignment Adjustment

Perfect alignment is not always possible in real pipeline installations. Existing pipes may have shifted, chambers may have limited space, or replacement valves may have slightly different face-to-face dimensions.

Many flexible flange adaptor designs can accommodate a small amount of angular deflection or positional variation. This helps installers align the flange faces without applying excessive bending stress to the pipe or equipment.

This feature is especially useful during repair and retrofit projects, where the position of the existing pipeline cannot easily be changed.

The permitted angular deflection varies by product design and size. It should not be assumed or estimated on site. Installers should follow the manufacturer’s published limits and ensure that the pipe is inserted to the required depth before tightening the bolts.

6. Mechanical Installation Can Reduce Project Time

Ductile iron flange adaptors are normally installed using common pipe-fitting tools. The general process involves cleaning the pipe surface, checking the outside diameter, positioning the gland and gasket, inserting the pipe, aligning the flange and tightening the bolts evenly.

Because the connection is mechanical, installation can often be completed faster than field welding or custom flange fabrication. This can reduce pipeline shutdown time and labour requirements.

The removable bolted design also supports future maintenance. When a valve, meter or pump must be replaced, the flange bolts can be removed without cutting the entire pipeline.

Correct installation remains essential. Uneven bolt tightening, damaged coatings, contaminated gasket surfaces or incorrect pipe insertion can cause leakage even when the adaptor itself is properly designed.

7. Gasket Options Support Different Water and Wastewater Conditions

The ductile iron body provides structural strength, but the gasket creates the actual seal around the pipe. Selecting the correct gasket material is therefore critical.

EPDM gaskets are commonly considered for water and many general aqueous services, while NBR gaskets may be preferred where resistance to oils or hydrocarbons is required. Other elastomers may be necessary for particular chemicals, temperatures or regulatory requirements.

The gasket should be selected according to:

• ·   Potable water or wastewater service

• ·   Chemical composition of the medium

• ·   Maximum and minimum temperature

• ·   Presence of oil, grease or hydrocarbons

• ·   Disinfectants and treatment chemicals

• ·   Required drinking-water approvals

• ·   Expected service life

A gasket that performs well in clean water may not be suitable for oily wastewater or aggressive industrial effluent. Material compatibility should always be confirmed before procurement.

8. Protective Coatings Improve Corrosion Resistance

Wastewater pipelines and treatment plants can expose fittings to moisture, chemicals, sewage gases and corrosive soils. Ductile iron flange adaptors are therefore commonly supplied with protective coatings.

Fusion-bonded epoxy and liquid epoxy paint are frequently used to isolate the metal surface from the surrounding environment. Nylon-based coatings may also be available for particular applications.

The coating specification should consider both the internal medium and the external installation environment. A fitting installed inside a dry valve room faces different conditions from one buried in saline soil or submerged in a wastewater chamber.

Coating quality also depends on surface preparation, thickness, curing, adhesion and protection during transportation. Even a high-quality coating can be damaged by careless handling or metal tools during installation.

9. They Are Suitable for Both New Construction and Pipeline Rehabilitation

Ductile iron flange adaptors are not limited to one stage of a pipeline’s life cycle. They can be used during:

• ·   Initial pipeline construction

• ·   Connection of valves and pumps

• ·   Network extension

• ·   Pipe material transitions

• ·   Treatment plant upgrades

• ·   Meter replacement

• ·   Emergency repairs

• ·   Rehabilitation of ageing pipelines

• ·   Replacement of damaged fittings

Their ability to connect plain-end pipe to standardized flanged equipment makes them particularly useful when new components must be integrated into an existing network.

In wastewater applications, ductile iron systems are valued for their resistance to impact, external loading and challenging installation environments.

How to Select the Right Ductile Iron Flange Adaptor

Before requesting a quotation, the buyer should provide more than the nominal pipe size. The most important information includes the pipe material, exact outside diameter, required flange standard, working pressure, test pressure, conveyed medium and installation environment.

It is also necessary to confirm whether the connection is restrained or unrestrained. A standard flexible flange adaptor creates a sealed connection, but it may not resist all axial thrust forces. Near pumps, bends, tees, closed valves and pipeline ends, a restrained adaptor or another engineered thrust-control method may be required.

For wastewater and industrial applications, buyers should additionally provide the medium composition, operating temperature and required coating and gasket materials. These details allow the supplier to check whether the complete adaptor assembly—not only the ductile iron body—is suitable for the project.

Ductile Iron Flange Adaptors for Water and Wastewater Projects

Solid Industrial supplies ductile iron flange adaptors and pipeline connection fittings for municipal water supply, wastewater, drainage, irrigation and industrial pipeline projects. Available product options include flexible flange adaptors, universal flange adaptors, restrained flange adaptors for PE pipe, quick adaptors, pipe couplings, dismantling joints and repair clamps.

Flange adaptor configurations can be selected according to the pipe material, measured outside diameter, pressure requirement and project environment. Available specifications include ISO 2531, EN 545 and EN 14525 options, PN10, PN16 and PN25 pressure classes, EPDM or NBR gaskets, fusion-bonded epoxy or other coating choices, and different bolt materials.

For accurate product matching, send Solid Industrial your pipe material, pipe outside diameter, flange standard, required pressure rating, conveyed medium and order quantity. Visit SolidJoints.com to explore suitable ductile iron flange adaptor solutions or request technical support for your water and wastewater pipeline project.
