DI Saddle Clamp vs. Tapping Saddle: What Is the Difference?

DI saddle clamps and tapping saddles are both used to create branch connections on existing pipelines. Because the two products can look similar—and because suppliers do not always use the same naming system—the terms are sometimes treated as interchangeable.

However, they do not describe exactly the same thing.

The simplest explanation is:

• ◆  DI saddle clamp usually describes the saddle’s material or the pipe it is designed to fit.

• ◆  Tapping saddle describes the saddle’s function: providing a sealed outlet through which a main pipe can be drilled or tapped.

This means that a ductile iron saddle clamp can also be a tapping saddle. The correct choice depends less on the product name and more on the pipe outside diameter, pipe material, outlet design, working pressure, branch size and tapping procedure.

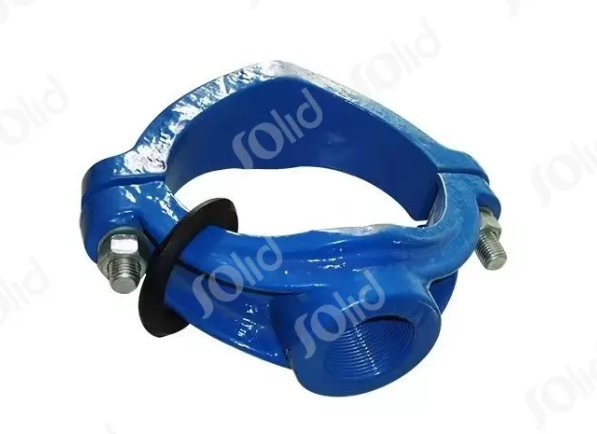

What Is a DI Saddle Clamp?

“DI” normally stands for ductile iron. In the pipeline industry, the term DI saddle clamp can have two different meanings:

1. A saddle clamp with a body manufactured from ductile iron.

2. A saddle clamp specifically dimensioned for installation on ductile iron pipe.

These meanings should not be confused. A ductile iron body does not automatically mean that the product fits only ductile iron pipe. Depending on its band, gasket and dimensional range, a ductile iron saddle may be suitable for cast iron, steel, PVC, PE or other pipe materials.

A typical DI saddle clamp includes:

• ◆  A ductile iron saddle body

• ◆  One or two stainless steel straps, U-bolts or a lower saddle section

• ◆  An elastomer sealing gasket

• ◆  A threaded or flanged branch outlet

• ◆  Bolts, nuts and washers

• ◆  An epoxy, nylon or other protective coating

Ductile iron is commonly selected because it combines strength, casting flexibility and impact resistance. ASTM A536 defines ductile iron as cast iron in which the graphite is substantially spheroidal, and it establishes mechanical-property requirements for different material grades.

The saddle body distributes the bolt load over part of the pipe circumference, while the gasket seals the area around the future opening. Once installed, the outlet may be connected to a service valve, branch pipe, meter connection, hydrant lead or instrument line.

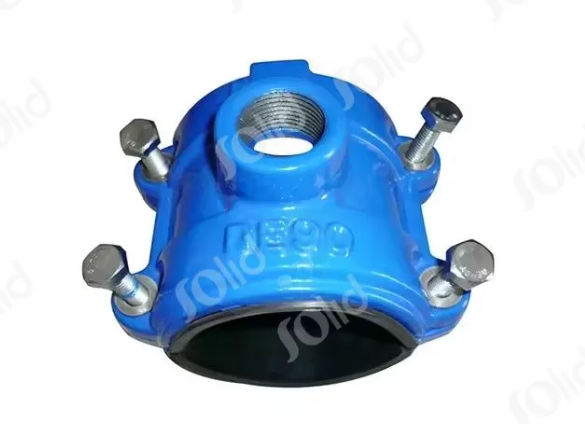

What Is a Tapping Saddle?

A tapping saddle is a pipe fitting designed to provide a controlled, sealed outlet on an existing main. After the saddle is secured, the pipe wall is drilled through the outlet.

The tapping operation may be performed in two ways:

• ◆  Dry tapping: The pipeline is isolated, depressurized and normally drained before drilling.

• ◆  Hot tapping or wet tapping: The branch connection is made while the pipeline remains pressurized and in service.

A tapping saddle may be manufactured from ductile iron, stainless steel, bronze, reinforced plastic or another material. Therefore, “tapping saddle” is a functional category rather than a material category.

Tapping saddles are frequently used for:

• ◆  Domestic water service connections

• ◆  Irrigation branches

• ◆  Meter or sensor connections

• ◆  Air-release valve connections

• ◆  Sampling points

• ◆  Small industrial process branches

• ◆  Extensions to existing water-distribution networks

AWWA C800-25 covers underground service-line valves and fittings, including certain service saddles. Within that standard’s scope, the service saddles have outlet sizes from 1/2 inch to 2 inches and fit mains from 2 inches to 12 inches. These dimensions describe the scope of that particular standard, not every tapping saddle available worldwide.

The Main Difference: Material Description vs. Functional Description

The most important distinction is that the two terms classify products on different bases.

A product can belong to both columns. For example, a ductile iron body saddle with an EPDM gasket and a threaded outlet, approved for drilling under pressure, is both a DI saddle clamp and a tapping saddle.

Construction and Clamping Design

DI saddle clamps are commonly supplied in one of the following configurations:

Single-Strap Saddle

A single stainless steel band or U-bolt holds the saddle body against the pipe. This compact design is often used for smaller outlets and moderate service loads.

Double-Strap Saddle

Two straps spread the clamping force over a wider area and improve resistance to movement. A double-strap design may be preferred for larger main diameters, larger outlets or applications requiring greater stability.

Two-Piece Full Saddle

The upper and lower ductile iron sections surround most or all of the pipe circumference. This creates a rigid assembly and distributes the mechanical load more broadly.

Wide-Range Saddle

A flexible stainless steel band allows one saddle design to cover a defined range of pipe outside diameters. “Universal” or “wide-range” does not mean that the saddle fits every pipe. The measured OD, pipe material and allowable range must still be checked.

Tapping saddles can use any of these clamping arrangements. What makes them tapping saddles is the engineered sealing area and outlet that allow the pipe wall to be drilled safely.

Pipe Material and Outside Diameter

Nominal pipe size alone is not enough to select either product.

Pipes with the same nominal diameter can have different actual outside diameters because of differences in material, standard, wall series and manufacturing system. A DN100 ductile iron pipe, DN100 steel pipe and nominal 4-inch PVC pipe should not automatically be assumed to have identical outside diameters.

Before selecting a saddle, the purchaser should provide:

• ◆  Pipe material

• ◆  Applicable pipe standard

• ◆  Nominal diameter

• ◆  Measured outside diameter

• ◆  Wall thickness, SDR or pipe class where relevant

• ◆  External coating condition

• ◆  Operating and test pressure

• ◆  Fluid and operating temperature

• ◆  Required outlet size

• ◆  Outlet thread or flange standard

• ◆  Whether the connection will be hot tapped or dry tapped

ISO 2531 covers requirements and test methods for ductile iron pipes, fittings, accessories and joints used in water applications, including dimensional, mechanical and coating requirements. The standard covers nominal sizes from DN40 to DN2600, but the compatibility of a particular saddle must still be confirmed from the manufacturer’s dimensional table.

Plastic pipe requires additional attention. PVC and PE can deform under concentrated bolt load, and PE also changes dimensions in response to temperature and pressure. Products intended for HDPE may therefore use wide bands, spring washers or other features to maintain appropriate compression. For example, one manufacturer specifies spring washers for certain HDPE saddle models to compensate for pipe contraction during pressure and temperature changes.

Sealing Method

Most saddle connections use an elastomer gasket positioned around the branch opening. Tightening the straps or bolts compresses the gasket between the saddle body and the pipe surface.

The gasket must be compatible with:

• ◆  Drinking water, wastewater, gas or process fluid

• ◆  Operating temperature

• ◆  Chemicals in the conveyed medium

• ◆  Disinfectants or water-treatment chemicals

• ◆  Expected service life

EPDM is widely used for potable water and many general water applications, while NBR is often considered for oils or hydrocarbon-containing media. This is only a general material distinction; the actual compound and approval must be verified for the intended service.

A saddle should not be installed over severe corrosion, deep pitting, surface contamination, a raised weld seam or a damaged coating that prevents uniform gasket contact. Mueller’s installation guidance, for example, instructs installers to clean and inspect the pipe surface and avoid significant defects that could prevent correct sealing.

Hot Tapping Capability

A common mistake is to assume that every saddle with an outlet can be used for hot tapping.

Hot tapping requires compatibility among the entire assembly:

• ◆  Main pipe

• ◆  Saddle

• ◆  Gasket

• ◆  Outlet connection

• ◆  Corporation stop or tapping valve

• ◆  Drilling adapter

• ◆  Cutter or shell cutter

• ◆  Tapping machine

• ◆  Pressure-control procedure

The saddle must resist internal pressure before, during and after drilling. The valve must provide a passage for the cutter and allow the branch to be isolated after the cutter is withdrawn.

Small drilling machines are commonly used with service saddles and corporation stops to create service connections under pressure. This approach is particularly useful where direct tapping into the pipe wall is unsuitable because the main is too thin, small or weak.

Nevertheless, some tapping saddles are explicitly intended only for drilling without pressure. Hawle, for example, identifies one universal blank tapping saddle as a product for non-pressurized drilling.

Therefore, the words “tapping saddle” alone do not confirm live-tapping capability.

Pressure Ratings Cannot Be Generalized

Pressure capacity varies with:

• ◆  Saddle design

• ◆  Main pipe material

• ◆  Pipe diameter

• ◆  Outlet size

• ◆  Strap configuration

• ◆  Gasket geometry

• ◆  Bolt material

• ◆  Installation condition

Published manufacturer ratings show how wide this variation can be. Romac lists some ductile iron service saddles with ratings up to 350 psi, while an HDPE-specific ductile iron model is limited to the pipe rating and a maximum of 150 psi.

These figures should not be treated as industry-wide ratings. The applicable rating must come from the datasheet for the exact model, size, outlet and host pipe.

The hydrostatic test pressure of the pipeline may also be higher than its normal operating pressure. A saddle selected only according to normal pressure could therefore be unsuitable during commissioning or system testing.

Outlet Size and Branch Load

A small threaded outlet for a domestic service line imposes different forces from a large flanged branch connected to a valve and heavy downstream pipework.

As the branch diameter increases, the designer must consider:

• ◆  Bending moment from the branch pipe

• ◆  Weight of the valve and fittings

• ◆  Vibration

• ◆  Thermal movement

• ◆  Soil settlement

• ◆  Thrust created by internal pressure

• ◆  Need for external supports or anchoring

A compact saddle should not automatically be used as a structural support for a heavy branch assembly. For larger branches, a flanged tapping saddle, tapping sleeve or engineered tee may provide more appropriate load distribution.

A tapping sleeve is generally a more substantial fitting that surrounds a larger portion—or the full circumference—of the main and provides a flanged outlet for a tapping valve. It is commonly used when the branch is too large for a small service saddle. Manufacturer tapping-sleeve ranges include different pressure ratings according to size and pipe material, which further demonstrates why product selection must be project-specific.

DI Saddle Clamp, Tapping Saddle and Repair Clamp Are Not the Same

A saddle clamp intended to create a branch should also be distinguished from a repair clamp.

• ◆  A branch or service saddle seals around a deliberately drilled outlet.

• ◆  A repair clamp seals over a crack, pinhole or damaged pipe section.

• ◆  A tapping sleeve creates a larger branch and normally connects to a tapping valve.

• ◆  A split tee provides a structural branch fitting, often for demanding industrial or pipeline applications.

Although some products may share similar bands, bolts and gaskets, their sealing geometry and load requirements are different. A branch saddle should not be substituted for a repair clamp unless the manufacturer specifically approves that use.

How to Choose Between Them

The choice should be based on the application rather than the product label.

Choose a pipe-specific DI saddle clamp when:

• ◆  The host pipe is confirmed as ductile iron.

• ◆  Its standard and outside diameter are known.

• ◆  A dedicated saddle fit is preferred.

• ◆  The branch outlet is within the model’s approved range.

• ◆  The pressure and tapping method match the product datasheet.

Choose a universal tapping saddle when:

• ◆  The network contains different pipe materials or outside diameters.

• ◆  A defined wide-range band offers verified compatibility.

• ◆  The contractor needs flexibility while maintaining a controlled gasket seal.

• ◆  Every proposed pipe still falls within the approved OD and material range.

Choose a tapping sleeve or engineered flanged saddle when:

• ◆  The outlet is relatively large.

• ◆  A flanged tapping valve is required.

• ◆  The branch assembly creates significant mechanical load.

• ◆  The project specification requires full-circumference reinforcement or sealing.

Installation Considerations

Regardless of terminology, a reliable installation depends on correct preparation and controlled tightening.

A typical procedure includes:

1. Confirm the pipe material, OD, pressure and condition.

2. Mark the tapping location and check clearance for the machine and branch.

3. Clean the pipe surface without creating deep scratches.

4. Inspect the gasket and position it correctly around the intended hole.

5. Install the saddle square to the pipe.

6. Tighten bolts gradually and evenly using the specified sequence and torque.

7. Install the valve or corporation stop with the correct thread seal or flange gasket.

8. Pressure-test the assembled connection where the procedure requires it.

9. Attach the approved tapping equipment.

10. Drill the opening and control the removed coupon and cutting swarf.

11. Close or isolate the branch before removing tapping equipment.

12. Inspect for leakage and support the connected branch as necessary.

Overtightening is not a substitute for correct sizing. Excessive bolt torque can deform plastic pipe, damage the gasket, distort the saddle or overload the fasteners.

Final Answer

A DI saddle clamp and a tapping saddle are not automatically two different products.

A DI saddle clamp is identified mainly by its ductile iron construction or its suitability for ductile iron pipe. A tapping saddle is identified by its purpose: creating a sealed branch opening in an existing pipeline. One fitting may satisfy both definitions.

For procurement and engineering, the product name should be treated only as a starting point. The final selection must be based on the host pipe’s material and measured outside diameter, the branch outlet, working and test pressure, gasket compatibility, connection standard, drilling method and whether tapping will be performed under pressure.

The safest question is therefore not simply, “Do I need a DI saddle clamp or a tapping saddle?” It is:

Which saddle configuration is approved for this exact pipe, branch size, pressure and tapping procedure?
