Comprehensive Analysis of Brass Socket Coupling

Ⅰ. Basic Concept

Brass socket coupling is a type of pipeline connector made of brass, primarily used to connect two pipes of the same or different diameters, achieving sealing and fixing in pipeline systems. Its working principle is based on "socket connection"—inserting one end of a pipe into the socket of another pipe, ensuring reliability through welding, threaded fastening, or other sealing methods.

Ⅱ. Structural and Material Characteristics

(1) Structural Composition

1. Socket End: A cylindrical cavity inside for inserting another pipe.

2. Spigot End: Smooth exterior for insertion into the socket, with threaded or flanged designs in some types to enhance connection stability.

3. Sealing Design: Some fittings have built-in rubber seals or conical sealing to prevent liquid or gas leakage.

(2) Material Advantages

The characteristics of brass:

· Excellent corrosion resistance, suitable for water, oil, gas, and other media.

· Moderate mechanical strength, easy to process and form, with certain wear resistance.

· Aesthetic appearance, commonly used in decorative pipeline systems.

Ⅲ. Classification and Application Scenarios

(1) Classification by Connection Method

1. Socket Weld Coupling: Sealed by welding the joint between the socket and spigot, suitable for high-pressure and high-temperature conditions.

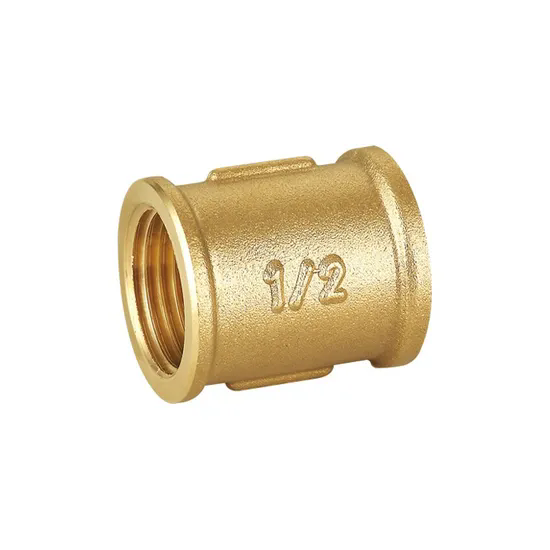

2. Threaded Coupling: Internal threads on the socket wall, screwed tightly with externally threaded pipes for easy disassembly, often used in low-pressure water and gas pipelines.

(2) Application Fields

· Building water supply and drainage: Tap water pipes, drainage systems, bathroom equipment connections.

· HVAC (Heating, Ventilation, and Air Conditioning): Heating pipes, air conditioning condensate pipes.

· Industrial pipelines: Liquid/gas transportation in chemical, food, and pharmaceutical industries.

· Gas Systems: Safe Connections for Household or Commercial Gas Pipelines.

· Mechanical manufacturing: Internal pipelines of equipment, sealed connections in hydraulic systems.

Ⅳ. Installation and Maintenance Key Points

(1) Installation Steps

1. Clean the pipe and brass socket coupling surfaces to ensure no oil or impurities.

2. Select the connection method based on the type:

· Welded type: Use copper or silver brazing to fill the socket gap, forming a seal after cooling.

· Threaded type: Wrap Teflon tape or apply sealant, tighten to the appropriate torque.

· Crimped type: Align the socket and use a crimping tool to extrude evenly to the specified mark.

3. Test tightness: Pressurize with water or air to check for leaks.

(2) Maintenance Notes

· Avoid long-term exposure to strong acids or alkalis to prevent brass corrosion.

· After disassembling the threaded fittings, replace the sealing material before reinstalling.

Ⅴ. Advantages and Limitations

Advantages:

· Corrosion-resistant and long-lasting, suitable for various media.

· Firm connection and good sealing performance, especially welded types that can withstand high pressure.

· Flexible installation, adaptable to different pipe diameters and connection methods.

· Brass material combines practicality and aesthetics, suitable for decorative scenarios.

Limitations:

· Higher cost than cast iron or plastic fittings, especially for large-diameter applications.

· Welded types require professional tools and skills, with a higher level of construction difficulty.

· Mechanical strength may decrease in high-temperature environments, requiring cautious use.

Ⅵ. Relevant Standards and Selection References

· International standards: Such as ASME B16.11, BS 3799, and so on, specify dimensions, pressure ratings, and material requirements for brass fittings.

· Selection key points:

· Confirm the medium type and working pressure.

· Choose matching fitting types based on pipe materials.

· Note the pipe diameter specifications and connection methods.

Ⅶ. Common Questions

Q: Is brass fitting suitable for hot water pipes?

A: Yes. Brass socket coupling has good heat resistance and strong resistance to hot water corrosion, making it a common material for hot water systems.

Q: How to distinguish between socket weld and threaded fittings?

A: Socket weld fittings have smooth, thread-free inner walls with welding grooves at the interface; threaded fittings have obvious internal threads and may feature hexagonal nuts at the port for installation.
