Common Installation Mistakes When Using Flange Adaptors in Water Supply Pipelines

Jun. 12, 2026

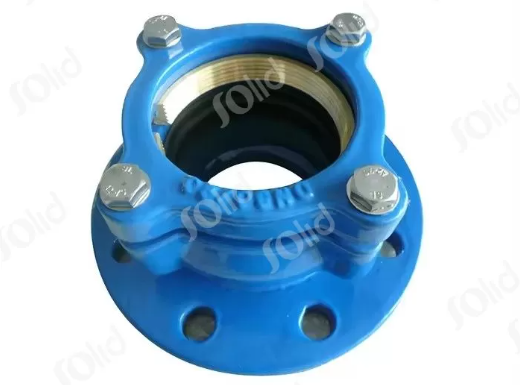

Flange adaptors are widely used in water supply pipelines to connect plain-ended pipes to flanged valves, pumps, fittings, meters, and other pipeline equipment. They simplify installation, reduce the need for on-site welding, and provide a practical connection solution for ductile iron pipes, steel pipes, PVC pipes, PE pipes, and other pipeline materials.

However, even a high-quality flange adaptor can fail if it is not installed correctly. Many leakage problems, pipe misalignment issues, and premature joint failures are not caused by the adaptor itself, but by avoidable installation mistakes on site.

For water supply projects, a poor connection can lead to water loss, pressure drops, emergency shutdowns, road excavation, and higher maintenance costs. This is why contractors, municipal water authorities, and pipeline engineers should pay close attention to proper flange adaptor installation.

In this article, we will explain the most common installation mistakes when using flange adaptors in water supply pipelines and how to avoid them.


1. Choosing the Wrong Flange Adaptor Size

One of the most common mistakes is selecting a flange adaptor that does not match the pipe outside diameter. Pipeline projects often involve different pipe materials, and the same nominal diameter may have different outside diameters depending on the pipe standard.

For example, ductile iron pipe, steel pipe, PVC pipe, and PE pipe may not share the same actual outside diameter, even when they are described with the same DN or nominal size. If the flange adaptor is too large, the sealing ring may not compress properly. If it is too small, the adaptor may be difficult to install or may damage the pipe surface.

Before installation, always confirm:

  • ·   Pipe outside diameter

  • ·   Pipe material

  • ·   Pressure rating

  • ·   Flange drilling standard

  • ·   Working conditions

  • ·   Whether the connection requires restraint

A flange adaptor should never be selected only by nominal pipe size. Correct sizing is the first step toward a reliable water pipeline connection.

2. Ignoring Pipe Surface Preparation

A flange adaptor seals around the outside surface of the pipe. If the pipe surface is dirty, rusty, scratched, uneven, or covered with coating defects, the sealing performance may be affected.

Common pipe surface problems include:

  • ·   Mud, sand, or construction debris

  • ·   Rust or scale on steel pipe

  • ·   Damaged pipe coating

  • ·   Deep scratches or dents

  • ·   Uneven pipe cutting edges

  • ·   Paint or coating buildup near the sealing area

Before installing the flange adaptor, the pipe end should be cleaned carefully. The sealing area should be smooth, free from sharp edges, and suitable for gasket compression. For steel pipes, rust and scale should be removed. For coated pipes, check whether the coating thickness affects the fit of the adaptor.

A clean and even pipe surface helps the gasket seal properly and reduces the risk of leakage during pressure testing.

3. Not Checking Pipe Alignment

Poor pipe alignment is another major cause of flange adaptor failure. Some installers try to use the flange adaptor to “pull” pipes into position. This is a mistake.

A flange adaptor is designed to connect pipes and flanged equipment, not to correct serious pipeline misalignment. If the pipe and mating flange are not aligned, the joint may experience uneven stress after tightening. This can cause gasket deformation, bolt stress, leakage, or even damage to the adaptor body.

Before tightening the bolts, check that:

  • ·   The pipe is centered inside the adaptor

  • ·   The flange faces are parallel

  • ·   The pipe is not under bending stress

  • ·   The connected valve or fitting is properly supported

  • ·   The adaptor is not being used to force the pipeline into position

Minor adjustment tolerance may be acceptable depending on the product design, but excessive angular deflection or offset should be corrected before final tightening.

4. Installing the Gasket Incorrectly

The gasket or sealing ring is one of the most important parts of a flange adaptor. Incorrect gasket placement can cause leakage even when the adaptor body and bolts are in good condition.

Common gasket mistakes include:

  • ·   Using the wrong gasket material

  • ·   Installing the gasket backwards

  • ·   Twisting or folding the sealing ring

  • ·   Reusing an old gasket

  • ·   Allowing dirt under the gasket

  • ·   Installing a damaged or cracked gasket

  • ·   Using a gasket that is not suitable for drinking water service

For water supply pipelines, gasket material should be compatible with clean water and the project’s temperature and pressure conditions. EPDM is commonly used for potable water applications, but the correct material should always be confirmed according to the project requirement.

Never install a gasket that appears hardened, deformed, cut, or contaminated. A small gasket defect can become a serious leakage point after the pipeline is pressurized.

5. Uneven Bolt Tightening

Uneven bolt tightening is one of the most frequent causes of flange adaptor leakage. If one side is tightened more than the other, the gasket will not compress evenly. This creates weak sealing points around the connection.

Many installers tighten bolts one by one in a circular direction. This may seem faster, but it can pull the flange adaptor out of position and create uneven gasket pressure.

The better method is to tighten bolts gradually and evenly in a cross pattern. Do not fully tighten one bolt while others are still loose. Instead, tighten the bolts in several rounds until the correct torque is reached.

A typical tightening process includes:

1. Hand-tighten all bolts first.

2. Check alignment and gasket position.

3. Tighten bolts in a cross pattern.

4. Increase torque gradually in multiple passes.

5. Recheck the final torque after all bolts are tightened.

Uniform bolt tightening helps achieve even gasket compression and improves long-term sealing performance.

6. Over-Tightening the Bolts

Some installers believe that tighter bolts always mean a better seal. This is not true. Over-tightening can damage the gasket, deform the flange, strip the threads, or overstress the adaptor body.

A gasket needs proper compression, not excessive compression. If the gasket is crushed, it may lose elasticity and fail under pressure changes. Over-tightening can also make future maintenance more difficult.

Always follow the manufacturer’s recommended torque values. If project-specific torque requirements are provided by the engineer, use those values. For large-diameter water pipelines, controlled bolt tightening is especially important because uneven or excessive stress can affect the entire flange connection.

7. Under-Tightening the Bolts

Under-tightening is just as dangerous as over-tightening. If bolts are not tightened enough, the gasket will not create a secure seal. The joint may pass a visual inspection but leak during pressure testing or after the pipeline enters service.

Under-tightening often happens when:

  • ·   Installers do not use a torque wrench

  • ·   Bolts are tightened by feel only

  • ·   Threads are dirty or corroded

  • ·   Bolts are not tightened in several passes

  • ·   Final torque inspection is skipped

For water supply pipelines, a torque wrench should be used whenever possible. “Hand feel” is not reliable, especially for larger flange adaptors or high-pressure systems.

8. Using the Wrong Bolts, Nuts, or Washers

Bolts, nuts, and washers must match the flange adaptor design and project requirements. Using incorrect fasteners can affect both strength and sealing performance.

Common fastener mistakes include:

  • ·   Using bolts that are too short

  • ·   Using bolts that are too long

  • ·   Mixing different bolt grades

  • ·   Using damaged or rusty bolts

  • ·   Forgetting washers when required

  • ·   Using fasteners without corrosion protection

  • ·   Using non-standard bolts on pressure pipelines

In underground or humid environments, corrosion resistance is important. Fasteners should be suitable for waterworks service and the expected site conditions. For buried pipelines, additional corrosion protection may be required depending on soil conditions and project specifications.

9. Ignoring Flange Standard Compatibility

Flange adaptors are often connected to valves, pumps, flow meters, dismantling joints, and other flanged equipment. If the flange drilling standard does not match, installation problems will occur.

Common flange standards include PN10, PN16, ANSI Class 150, BS, JIS, and other regional standards. Even if the nominal diameter is the same, bolt hole number, bolt hole diameter, and bolt circle diameter may be different.

Before installation, confirm that the flange adaptor matches the mating flange standard. Do not enlarge bolt holes on site unless approved by the project engineer. Field modification can weaken the connection and create safety risks.

10. Not Supporting Valves and Heavy Equipment

A flange adaptor should not carry the full weight of a heavy valve, pump, or fitting. If heavy equipment is not supported properly, the joint may experience bending force, vibration, and long-term stress.

This is especially important for:

  • ·   Large-diameter gate valves

  • ·   Butterfly valves

  • ·   Pump connections

  • ·   Flow meters

  • ·   Above-ground pipeline sections

  • ·   Pipelines exposed to vibration

Use proper supports, brackets, or concrete foundations where necessary. The flange adaptor should function as a connection component, not as a structural support.

11. Forgetting About Pipeline Pressure and Thrust Forces

Water supply pipelines may experience internal pressure, pressure surges, and water hammer. In some installations, standard flange adaptors may not provide axial restraint unless they are specifically designed as restrained flange adaptors.

If the pipeline is subject to thrust forces, an unrestrained flange adaptor may allow pipe movement. This can cause leakage or joint separation.

For high-pressure pipelines, bends, tees, valves, dead ends, and pump stations, check whether restrained flange adaptors or additional thrust restraint systems are required. The choice between restrained and non-restrained flange adaptors should be based on pipeline design, pressure, soil conditions, and engineering requirements.

12. Skipping the Final Inspection Before Pressure Testing

After installation, many teams move directly to pressure testing without a careful final inspection. This can lead to avoidable test failures.

Before pressure testing, inspect:

  • ·   Bolt tightness

  • ·   Gasket position

  • ·   Pipe alignment

  • ·   Flange face contact

  • ·   Fastener condition

  • ·   Pipe insertion depth

  • ·   Surface cleanliness

  • ·   Signs of stress or uneven compression

During pressure testing, increase pressure gradually and monitor the joint. If leakage appears, do not simply over-tighten the bolts immediately. First identify the cause, release pressure safely, and then correct the installation problem.

13. Reusing Old Flange Adaptors or Gaskets Without Inspection

In repair projects, some installers reuse old flange adaptors, bolts, or gaskets to save time or cost. This can create hidden risks.

A used flange adaptor may have:

  • ·   Corrosion

  • ·   Deformed sealing surfaces

  • ·   Damaged coating

  • ·   Worn bolts

  • ·   Aged rubber gasket

  • ·   Thread damage

  • ·   Hidden cracks

Gaskets should generally be replaced during reinstallation. Bolts and nuts should also be inspected carefully. In municipal water supply pipelines, the cost of replacing worn sealing parts is much lower than the cost of repairing a leaking underground joint later.

14. Not Following Manufacturer Installation Instructions

Different flange adaptor manufacturers may have different designs, gasket structures, bolt configurations, and tightening requirements. A method that works for one product may not be correct for another.

Before installation, read the manufacturer’s installation instructions and confirm:

  • ·   Correct pipe outside diameter range

  • ·   Recommended insertion depth

  • ·   Gasket installation direction

  • ·   Bolt tightening sequence

  • ·   Torque values

  • ·   Pressure rating

  • ·   Application limitations

  • ·   Whether the adaptor is restrained or non-restrained

For project procurement, it is also important to choose a supplier that can provide clear technical documents, product drawings, material specifications, and installation support.

Best Practices for Installing Flange Adaptors in Water Pipelines

To reduce installation risk, follow these best practices:

  • ·   Confirm pipe outside diameter before ordering

  • ·   Select the correct flange standard and pressure rating

  • ·   Clean and inspect the pipe surface before installation

  • ·   Use the correct gasket material for water supply service

  • ·   Align the pipe and flange before tightening

  • ·   Tighten bolts evenly in a cross pattern

  • ·   Use a torque wrench instead of guesswork

  • ·   Support heavy valves and equipment separately

  • ·   Check whether axial restraint is required

  • ·   Inspect the joint before pressure testing

These steps help improve sealing performance, reduce leakage risk, and extend the service life of the pipeline connection.

Why Proper Flange Adaptor Installation Matters

A flange adaptor may look like a simple pipeline component, but it plays a critical role in water supply systems. It connects different pipeline sections and equipment while maintaining pressure integrity. If installed incorrectly, the result may be leakage, pipe movement, flange damage, or costly maintenance.

For contractors, proper installation reduces rework. For water utilities, it improves system reliability. For project owners, it helps avoid unexpected repair costs and service interruptions.

Choosing the right flange adaptor is important, but correct installation is equally important. A good product and a good installation process must work together.

Conclusion

Most flange adaptor installation mistakes are preventable. Problems such as wrong sizing, poor pipe preparation, incorrect gasket placement, uneven bolt tightening, flange mismatch, and lack of support can all lead to leakage or premature failure.

Before installing flange adaptors in water supply pipelines, always check the pipe size, flange standard, pressure requirement, gasket condition, and installation instructions. For demanding projects, especially high-pressure pipelines or buried municipal water networks, consult the manufacturer or project engineer to confirm whether restrained flange adaptors are required.

A properly selected and correctly installed flange adaptor can provide a safe, reliable, and maintenance-friendly connection for water supply pipeline systems.

FAQs About Flange Adaptor Installation

1. What is a flange adaptor used for in water pipelines?

A flange adaptor is used to connect a plain-ended pipe to flanged equipment such as valves, pumps, fittings, or meters. It provides a practical transition connection without welding.

2. Why does a flange adaptor leak after installation?

Common causes include incorrect pipe size, poor pipe surface preparation, damaged gasket, uneven bolt tightening, flange misalignment, or insufficient torque.

3. Can I reuse the gasket in a flange adaptor?

It is not recommended to reuse old or deformed gaskets. A new gasket provides better sealing reliability, especially in pressure pipelines.

4. Should flange adaptor bolts be tightened in a specific sequence?

Yes. Bolts should be tightened gradually in a cross pattern to ensure even gasket compression and reduce leakage risk.

5. Do flange adaptors provide pipe restraint?

Not all flange adaptors provide restraint. Standard non-restrained flange adaptors mainly provide sealing and connection. Restrained flange adaptors are designed to resist axial pipe movement.

6. How do I choose the correct flange adaptor?

You should confirm the pipe outside diameter, pipe material, pressure rating, flange standard, gasket material, and whether restraint is required.

7. Can a flange adaptor be used underground?

Yes, many flange adaptors can be used in buried water pipelines, but corrosion protection, coating quality, bolt material, and installation conditions should be considered.

8. Is a torque wrench necessary for flange adaptor installation?

A torque wrench is strongly recommended because it helps achieve proper bolt tightening and avoids both under-tightening and over-tightening.
