Can Flexible Flange Adaptors Really Solve Pipe Misalignment Issues?

Yes — flexible flange adaptors (also called flange adapters/coupling adaptors) can solve many real-world pipe misalignment problems, especially small angular, axial or lateral offsets encountered on site. However, they are not a universal fix: they have engineering limits (tolerances, pressure and temperature caps), and choosing or installing the wrong type can lead to leaks, premature wear, or failure.

What is a flexible flange adaptor — and how does it help?

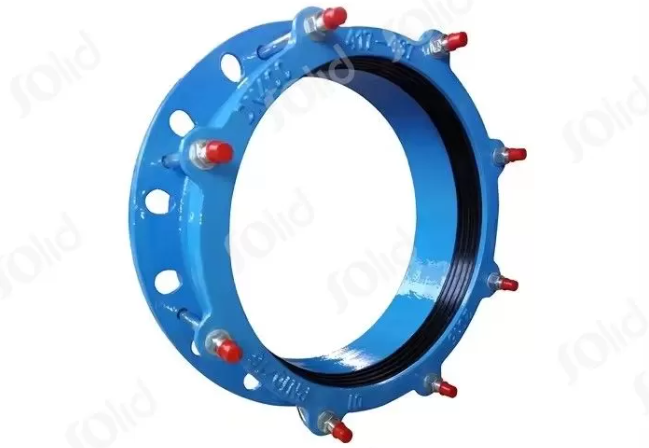

A flexible flange adaptor is a mechanical fitting that connects a plain pipe end to a flanged fitting (or two pipes) while allowing controlled deflection, minor angular or axial misalignment, and some linear movement. They typically use a gasket, a compression/harness assembly and bolts/clamps to form a sealed joint that can tolerate minor positional errors without re-machining or re-aligning pipework. This makes cut-ins, field repairs and retrofit work much faster and less labor-intensive than re-flanging or precision alignment.

The types of misalignment they can (and can't) fix

• ·  Angular misalignment: Flexible adaptors commonly accommodate small angular offsets (typically a few degrees depending on product). For larger angles you’ll need a different solution or a dismantling joint.

• ·  Lateral (offset) misalignment: Many flange adaptors allow limited lateral offset — enough to save cutting and re-centering during installation. Exact mm/inch limits depend on manufacturer specs.

• ·  Axial movement (expansion/contraction): Some adaptors accept limited axial movement; others are designed with restraint features. Don’t assume all adaptors are the same — read the data sheet.

Rule of thumb: If the misalignment is small to moderate and caused by field tolerances, thermal movement or settlement, a flexible flange adaptor is often appropriate. If the misalignment is large (large angle, long offsets, or grossly mismatched pipe centers), you’ll need realignment, spools, or specialized expansion/dismantling joints.

Benefits that matter on-site

1. Saves time and labour. Adapters eliminate the need for perfect bolt-hole alignment or re-cutting pipe ends in many cases, speeding install and shutdowns.

2. Absorbs vibration and noise. The flexible element and gasket dampen vibration compared to rigid flanged joints.

3. Eases retrofit and maintenance. Quick disassembly and ability to compensate small misalignments reduce downtime for repairs.

4. Reduces field welding/gluing. For mixed-material joins or confined spaces, flange adaptors avoid complex welding or precise flanging.

Limitations & failure modes — what to watch for

• ·  Pressure and temperature limits: Flexible adaptors are rated for certain pressure classes and temperature ranges. Exceeding them causes seal failure. Always check manufacturer ratings.

• ·  Excessive misalignment = leaks or fatigue: If you try to force a joint beyond its angular or lateral tolerance, gaskets can extrude or clamps can fatigue.

• ·  Unsupported axial thrust/loads: Some adaptors are not designed to restrain axial thrust (from pumps/pressure changes) — you may need restrained couplers or pipe restraints.

• ·  Material compatibility & corrosion: Mismatched metals, galvanic corrosion, or incompatible elastomers will shorten service life. Choose materials per environment.

How to pick the right adaptor for misalignment jobs

1. Check the manufacturer’s alignment tolerance and allowable deflection. Datasheets list angular, lateral and axial allowances. Don’t guess.

2. Match pressure/temperature ratings to your system. Never use a class-rated adaptor beyond its spec.

3. Decide if you need restrained (end-restraint) capability. For pipelines with axial thrust, choose adaptors with restraint features or add pipe restraints.

4. Consider the gasket material and media compatibility. Chemical exposure, oil, steam, or potable water require specific elastomers.

5. Factor in maintenance access and future inspections. If the line will be regularly dismantled, choose designs that ease frequent disassembly.

Installation best practices

• ·  Inspect pipe ends for burrs, dents and correct OD; clean before assembly.

• ·  Hand-fit the adaptor first, then torque bolts to manufacturer specs in a cross pattern. Over-torquing can deform gaskets.

• ·  Use manufacturer torque charts and follow installation guides — many performance issues come from poor installation, not the product itself.

• ·  After commissioning, inspect for leaks and re-torque per the recommended schedule.

When a flexible flange adaptor is not the right solution

• ·  Large alignment errors that require new spools or realignment.

• ·  High-temperature steam lines or aggressive chemicals beyond the adaptor’s elastomer rating.

• ·  Critical rotating machinery or systems where absolute rigidity is required (e.g., some shaft alignments) — a flexible joint would change system dynamics.

A municipal water crew needs to replace a flanged valve in a buried discharge line. The original pipe centers have shifted slightly over time. Instead of cutting and re-aligning the entire spool (many hours of excavation and welding), they install a flange adaptor rated for the system pressure with ±X° angular tolerance and a few millimetres lateral take-up. The new adaptor seals properly, shortens the shutdown from days to hours, and isolates vibration from nearby equipment.

FAQs

Q: How much misalignment can an adaptor handle?
A: It varies by model — check the product datasheet. Typical angular allowances are small (a few degrees); lateral allowances are often measured in millimetres/inches. Don’t exceed the listed values.

Q: Are flexible adaptors leak-prone?
A: Not if properly specified and installed. Leaks usually come from poor material selection, overstressing the joint, or incorrect torque/installation.

Q: Can they replace welded/flanged joints permanently?
A: For many low- to medium-pressure systems, yes. For high-temperature, high-pressure or precision systems, welded or rigid flanged connections may still be preferable.

Conclusion

Flexible flange adaptors are a powerful, practical tool to fix many everyday pipe misalignment problems: they save time, lower labour costs, reduce downtime, and damp vibrations. But they are not magic — you must respect manufacturer tolerances, system pressures/temperatures, and installation best practices. When chosen and installed correctly, they’re often the most cost-effective solution; when misused, they create risk. Always consult product datasheets and, for critical systems, get engineering sign-off.
