Can a Self-Locking Universal Coupling Handle Pipe Misalignment and Ground Movement?

Underground pipelines rarely operate in perfectly stable conditions. In municipal water supply, wastewater treatment, drainage, and underground utility projects, pipes may experience angular deviation, axial movement, vibration, uneven settlement, and ground displacement after installation. If a rigid connection cannot accommodate these changes, excessive stress can be transferred to the pipe, joints, valves, and other connected equipment.

This is why engineers often look for a pipe coupling for misalignment that can maintain a reliable connection while accommodating movement in the pipeline system.

A self-locking universal coupling is designed for applications where pipe sections need both connection security and a certain degree of movement compensation. But can it really handle ground movement? The answer depends on the coupling design, the allowable movement range, the installation conditions, and the type of pipeline system.

Why Pipe Misalignment Matters in Underground Pipelines

Pipe misalignment can occur for many reasons. During installation, individual pipe sections may not be perfectly aligned. After commissioning, external forces can create additional displacement.

Common causes include:

· Differential ground settlement

· Soil movement or lateral displacement

· Thermal expansion and contraction

· Construction tolerances

· Vibration from pumps and machinery

· Traffic loads above buried pipelines

· Changes in soil moisture or groundwater conditions

· Pipe movement near structures, valves, or pipeline transitions

Even relatively small alignment changes can create additional loads at rigid joints. Over time, these stresses may contribute to leakage, joint damage, pipe deformation, or premature component failure.

For this reason, a flexible connection can be particularly valuable in underground infrastructure.

How Does a Self-Locking Universal Coupling Accommodate Misalignment?

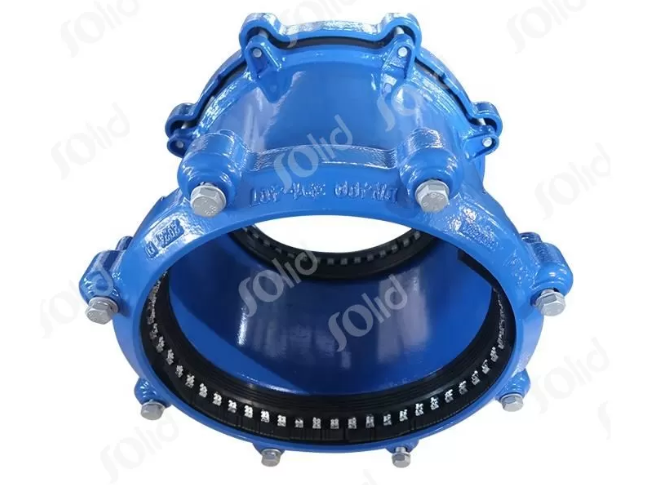

A self-locking universal coupling typically connects two pipe ends through a flexible mechanical assembly while maintaining secure axial retention. Unlike a simple rigid connector, the coupling can be designed to accommodate a controlled amount of angular and axial movement.

This makes it suitable as a pipe coupling for misalignment in applications where exact pipe alignment cannot always be maintained.

Depending on the design, the coupling may accommodate:

1. Angular Deflection

Angular deflection occurs when two connected pipe sections are not on exactly the same centerline.

A universal coupling can allow a limited angle between the connected pipes without forcing the entire pipeline into perfect alignment. This can be useful when installation conditions make precise alignment difficult or when underground movement causes gradual pipe displacement.

The allowable deflection should always be checked against the manufacturer's technical specification. A coupling should not be treated as unlimited articulation.

2. Axial Movement

Underground pipelines can also experience axial movement. Pipe sections may move because of thermal changes, pressure effects, settlement, or external soil forces.

A properly engineered flexible coupling can accommodate a specified amount of axial movement while maintaining a sealed connection. This can reduce the amount of stress transferred directly to the pipe and surrounding components.

3. Vibration and Dynamic Movement

Pipelines connected to pumps, valves, treatment equipment, or other mechanical systems may experience vibration.

A flexible coupling can help isolate some movement between connected pipe sections and reduce the concentration of mechanical stress at the joint. This is particularly relevant in water and wastewater systems where pumps and other rotating equipment operate continuously or intermittently.

Can It Work as a Coupling for Ground Movement?

Ground movement is one of the most challenging conditions for underground piping.

When soil settles unevenly, adjacent sections of pipe may no longer remain at the same elevation. One section can move downward while another remains relatively stable. In other situations, lateral soil movement can push the pipeline sideways.

This creates bending and joint displacement within the system.

A properly selected coupling for ground movement can provide a controlled degree of flexibility between pipe sections. Instead of forcing the pipeline connection to remain completely rigid, the coupling can accommodate specified angular or axial movement.

However, it is important to understand the difference between accommodating ground movement and withstanding unlimited ground displacement.

A universal coupling is not a substitute for proper pipeline engineering. If a project is located in an area with significant differential settlement, landslide risk, seismic movement, or unstable soil, engineers must evaluate the expected displacement and select a connection system with sufficient movement capability.

What Makes a Self-Locking Coupling Different?

One of the key considerations in underground pipeline connections is axial security.

A flexible connection should not simply allow the pipe to move freely without control. The joint must remain mechanically secure under the expected operating conditions.

A self-locking design is intended to maintain axial restraint while allowing the coupling to perform its designed movement function. This combination can be valuable in municipal infrastructure where the pipeline must remain connected even as operating loads or installation conditions change.

For project engineers and procurement teams, several technical parameters should be reviewed before selecting a coupling:

· Allowable angular deflection

· Permitted axial movement

· Working pressure

· Pipe outside diameter range

· Pipe material compatibility

· Sealing performance

· Axial restraint capability

· Corrosion protection

· Operating temperature

· Installation requirements

· Applicable standards and certifications

These specifications are more important than simply choosing a coupling based on nominal pipe size.

Applications in Municipal Water and Wastewater Projects

Self-locking universal couplings can be considered for a wide range of underground infrastructure applications.

Municipal Water Supply

Water distribution networks can cross roads, structures, different soil conditions, and areas with changing ground elevations. Flexible pipe connections can help accommodate installation tolerances and controlled pipeline movement.

Wastewater Pipelines

Gravity sewers and pressurized wastewater pipelines may experience settlement and ground movement, particularly in large underground networks. A flexible coupling can provide additional tolerance where pipe alignment changes are expected.

Underground Drainage Systems

Stormwater and drainage networks often cover extensive areas and pass through different soil conditions. Movement at individual pipe joints can become a concern as the surrounding soil settles over time.

Pipeline Rehabilitation and Repair

During repair or replacement work, achieving perfect alignment between existing and new pipe sections may be difficult. A universal coupling with misalignment capability can simplify connection work where the existing pipeline cannot be repositioned easily.

Industrial and Utility Networks

Pipelines serving pumping stations, treatment plants, and utility infrastructure can benefit from flexible connections where vibration and mechanical movement are present.

How to Choose the Right Pipe Coupling for Misalignment

Selecting a coupling should begin with the actual movement expected on the project rather than simply searching for the most flexible product.

First, determine the type of movement involved. Is the pipeline expected to experience angular deviation, axial displacement, settlement, vibration, or a combination of these conditions?

Second, calculate the expected magnitude of movement. A coupling designed for minor installation misalignment may not be suitable for major differential settlement.

Third, verify pressure and pipe compatibility. The coupling must match the pipe diameter and material while maintaining the required sealing and mechanical performance.

Finally, consider installation conditions. Underground projects may have limited working space, and the coupling should be practical to install, inspect, and maintain within the project environment.

Engineering Flexibility Without Sacrificing Connection Security

The major advantage of a self-locking universal coupling is the ability to combine controlled flexibility with mechanical connection security.

For underground pipelines, this can be particularly valuable because movement is not always predictable after installation. Soil settles, infrastructure loads change, equipment vibrates, and environmental conditions can affect the pipeline over its service life.

A suitable coupling can help accommodate controlled pipe movement instead of transferring every displacement directly into the pipe or rigid connection points.

That does not eliminate the need for proper pipeline design. Instead, it gives engineers another tool for managing the mechanical behavior of the pipeline system.

Conclusion

So, can a self-locking universal coupling handle pipe misalignment and ground movement?

Yes—when the coupling is specifically engineered for the required range of movement and properly matched to the pipeline application.

As a pipe coupling for misalignment, it can accommodate controlled angular and axial deviations that may occur during installation or operation. As a coupling for ground movement, it can provide additional flexibility for underground systems exposed to settlement, vibration, and other forms of controlled displacement.

For municipal water, wastewater, drainage, and underground utility projects, the most important consideration is not simply whether a coupling is flexible, but how much movement it can safely accommodate while maintaining sealing and mechanical security.

Before specifying a coupling, project engineers should review pipe dimensions, operating pressure, expected angular deflection, axial movement, ground conditions, installation requirements, and applicable technical standards. With the right specification, a self-locking universal coupling can become an important part of a more adaptable and reliable underground pipeline connection system.
