Can a Flexible Flange Adaptor Replace a Rubber Expansion Joint?

A flexible flange adaptor and a rubber expansion joint may appear to perform similar functions because both can accommodate a degree of pipe misalignment or movement. However, they are designed for different primary purposes.

A flexible flange adaptor is mainly a mechanical connector used to join a plain-ended pipe to flanged equipment, valves, pumps, or fittings. A rubber expansion joint is an engineered movement-control component designed to absorb thermal expansion, vibration, noise, and multidirectional displacement.

Therefore, a flexible flange adaptor cannot normally replace a rubber expansion joint directly. Replacement may be possible only when the expected movement is small, vibration isolation is unnecessary, pressure thrust is properly restrained, and the adaptor’s published movement limits cover the actual operating conditions.

What Is a Flexible Flange Adaptor?

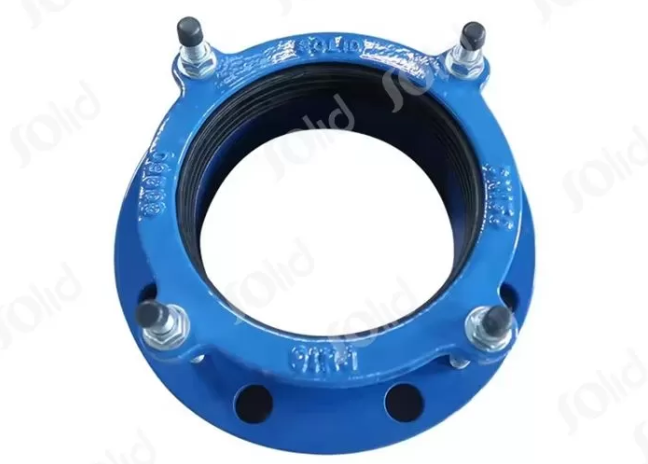

A flexible flange adaptor, also called a flanged coupling adaptor, connects a plain-ended pipe to a flanged component without welding a flange onto the pipe.

Its typical components include:

• ◆  A ductile iron or fabricated steel body

• ◆  An elastomeric sealing gasket

• ◆  An end ring or gland

• ◆  Bolts that compress the gasket

• ◆  A drilled flange for connection to a valve, pump, meter, or fitting

• ◆  Optional gripping elements for axial restraint

The word “flexible” can sometimes be misleading. In this context, flexibility usually refers to the adaptor’s ability to accept pipe outside-diameter tolerances, minor angular misalignment, and limited movement at the connection.

For example, some commercial flange adaptors permit approximately 3° of angular deflection, while certain large-diameter designs may accommodate only a few millimetres of expansion or contraction. These values are product-specific and should never be assumed for every adaptor.

Its principal function remains connection and sealing—not continuous absorption of large or repetitive pipe movement.

What Is a Rubber Expansion Joint?

A rubber expansion joint is a flexible piping element manufactured from elastomeric compounds reinforced with fabric, wire, or other structural materials. It may have one or more arches or a moulded spherical body, depending on its design.

Rubber expansion joints are commonly installed near:

• ◆  Pumps

• ◆  Chillers

• ◆  Cooling towers

• ◆  Compressors

• ◆  Water-treatment equipment

• ◆  HVAC piping

• ◆  Process piping systems

• ◆  Marine and power-generation equipment

Their functions may include:

• ◆  Absorbing axial compression and extension

• ◆  Accommodating lateral movement

• ◆  Accepting angular deflection

• ◆  Isolating mechanical vibration

• ◆  Reducing structure-borne noise

• ◆  Compensating for thermal expansion

• ◆  Relieving stresses caused by limited misalignment

• ◆  Protecting connected equipment from piping loads

The Fluid Sealing Association describes rubber expansion joints as components used to accommodate pressure loads, relieve movement stress, reduce noise, isolate vibration, and compensate for misalignment.

Unlike a standard flexible flange adaptor, a rubber expansion joint has a defined movement rating and spring resistance. Its movement capability must be selected according to the piping system’s calculated displacement.

Flexible Flange Adaptor vs. Rubber Expansion Joint

When Can a Flexible Flange Adaptor Be Used Instead?

A flexible flange adaptor may be a suitable alternative when the application mainly requires a convenient mechanical connection rather than a dedicated movement-absorption component.

1. The Movement Is Small and Non-Cyclic

A flange adaptor may accept slight angular deviation caused by installation tolerances or gradual ground settlement. If the pipe only needs minor alignment correction and will remain relatively stable during operation, a separate rubber expansion joint may not be required.

However, the allowable movement must be taken from the manufacturer’s technical data. A statement such as “allows angular deflection” does not automatically mean that the product can accept unlimited or continuous movement.

2. There Is No Significant Vibration

In a buried water main or a valve chamber without rotating equipment, vibration isolation may not be necessary. A flexible flange adaptor can then provide a practical connection between a plain-ended pipe and a flanged valve.

Near pumps, compressors, engines, or other rotating machinery, the situation is different. Repeated vibration can create fluctuating forces and fatigue at pipe supports, equipment nozzles, and bolted connections. A standard flange adaptor is not normally a substitute for a properly selected vibration-isolating rubber joint.

3. Thermal Expansion Is Controlled Elsewhere

A flange adaptor may be acceptable if thermal movement is already controlled through pipe loops, engineered bends, sliding supports, expansion joints at other locations, or sufficiently short pipe runs.

Consider a simplified example:

ΔL = α × L × ΔT

For a 100 m carbon-steel pipe, using an approximate thermal expansion coefficient of 12 × 10⁻⁶ / °C and a 40°C temperature increase:

ΔL = 12 × 10⁻⁶ × 100 × 40 = 0.048 m

The calculated expansion is approximately 48 mm.

An adaptor capable of only a few millimetres of axial adjustment cannot independently absorb this movement. The piping system would need another method of controlling or accommodating thermal growth.

4. The Joint Has Appropriate Axial Restraint

Many standard flexible flange adaptors are not automatically restrained against pipe pull-out. Internal pressure generates longitudinal thrust, particularly at valves, bends, tees, reducers, blank ends, and other changes in direction or cross-sectional area.

Restrained flange adaptors use gripping rings, wedges, anchor studs, or similar mechanisms to resist axial separation. Unrestrained designs require external anchoring, thrust blocks, tie rods, or another suitable restraint system.

The presence of an elastomeric gasket does not make a flange adaptor an axially restrained fitting.

When Should a Rubber Expansion Joint Not Be Replaced?

A rubber expansion joint should generally be retained when it performs any of the following critical functions.

Absorbing Pump or Equipment Vibration

Rubber has inherent damping characteristics that help isolate high-frequency vibration and reduce noise transmitted through metal piping.

A flexible flange adaptor may relieve a small amount of connection stress, but its compressed gasket does not provide the same flexible body length, spring characteristics, or vibration-isolation performance as a rubber expansion joint.

Accommodating Significant Axial Movement

When a piping system expands and contracts because of temperature changes, the total movement may exceed the limited adjustment available from a flange adaptor.

This is especially important in:

• ◆  Hot-water systems

• ◆  Steam-related auxiliary systems

• ◆  Long outdoor pipelines

• ◆  Process piping with frequent temperature cycles

• ◆  Cooling-water circuits

• ◆  Pipes exposed to changing ambient temperatures

Accepting Lateral Offset

A rubber expansion joint can be designed for lateral movement, where the two pipe centre lines remain parallel but shift sideways.

A flange adaptor normally accepts angularity at the pipe entry rather than substantial lateral displacement. Forcing it to accommodate lateral offset may load the gasket unevenly and increase the risk of leakage or pipe pull-out.

Handling Repeated Operating Cycles

Movement capability is not only about the maximum displacement. Frequency and cycle count also matter.

A connection that moves 2 mm once during installation is fundamentally different from a joint that moves 2 mm during every pump start, temperature cycle, or pressure fluctuation. Rubber expansion joints are engineered for repeated deformation within specified operating limits. A flange adaptor may only be intended to provide installation flexibility or accommodate slow structural settlement.

Protecting Sensitive Equipment Nozzles

Pumps, heat exchangers, chillers, and other equipment normally have limits for allowable nozzle loads. A selected rubber expansion joint can reduce the transmission of pipe displacement and vibration to the equipment.

Removing it and installing a flange adaptor may create a stiffer connection. The resulting force can be transferred directly into the equipment nozzle, casing, flange, or support structure.

Pressure Thrust Must Be Evaluated

Both flange adaptors and rubber expansion joints require careful consideration of pressure thrust.

A simplified pressure-thrust calculation is:

F = P × A

For a pipe with a 300 mm internal diameter operating at 10 bar:

A = π × D² / 4= π × 0.3² / 4 ≈ 0.0707 m²

At 1,000,000 Pa:

F ≈ 1,000,000 × 0.0707 = 70.7 kN

This simplified example produces more than 70 kN of axial force. Actual expansion-joint thrust calculations use the joint’s effective area, which may differ from the nominal pipe area.

If anchors, thrust blocks, control rods, tie rods, or restrained fittings are inadequate, a flexible joint can extend, separate, damage nearby equipment, or leak. Changing from a rubber expansion joint to a flange adaptor does not make pressure thrust disappear.

Other Selection Factors

Before replacing either component, engineers should review more than movement alone.

Pressure and Temperature

The adaptor body, gasket, rubber joint, bolts, and flanges must all be suitable for the maximum operating pressure, test pressure, surge pressure, and temperature.

Higher temperature can reduce the pressure capability and service life of elastomeric materials.

Fluid Compatibility

EPDM, NBR, natural rubber, neoprene, and other elastomers have different resistance to water, oils, fuels, chemicals, ozone, and temperature.

An elastomer should never be selected based only on its colour or generic material name. The precise formulation and manufacturer’s compatibility data should be checked.

Vacuum Conditions

A rubber expansion joint exposed to vacuum may require reinforcement or an internal vacuum-support ring. Without adequate support, its body can collapse.

A flange adaptor does not have an elastomeric arch that can collapse in the same way, but its gasket and mechanical structure must still be rated for the actual pressure conditions.

Combined Movements

Rubber expansion-joint catalogues may publish separate ratings for axial, lateral, and angular movement. These maximum values are not always available simultaneously.

For example, using a large percentage of the available axial movement may reduce the remaining lateral capability. The manufacturer should verify combined-movement conditions.

Pipe Supports and Anchors

Neither product should be considered independently of the complete piping layout. Supports, guides, anchors, equipment nozzles, valve weights, water hammer, pressure thrust, and thermal movement all interact.

A component that appears adequate based on diameter and pressure alone may fail if the surrounding support system is unsuitable.

Conclusion

A flexible flange adaptor cannot generally replace a rubber expansion joint because the two products serve different engineering purposes.

The flange adaptor is primarily a connection device. It simplifies the transition from plain-ended pipe to flanged equipment and can accommodate minor diameter variation, angular misalignment, or limited pipeline movement.

The rubber expansion joint is primarily a movement- and vibration-control device. It is selected to absorb defined axial, lateral, and angular displacement while reducing vibration, noise, and stress transmitted to piping and equipment.

Replacement may be acceptable when movement is small, vibration isolation is unnecessary, thermal expansion is controlled elsewhere, and the flange adaptor’s published ratings satisfy every operating condition. Where the existing joint absorbs thermal growth, lateral displacement, pump vibration, or repeated movement, installing a standard flange adaptor in its place can increase leakage risk, pipe stress, equipment loading, and the possibility of joint separation.

The correct decision should always be based on movement calculations, pressure-thrust analysis, restraint design, pipe-support conditions, and manufacturer-approved performance data—not simply on nominal pipe size or flange compatibility.
