Brass Plumbing Nipple: A Comprehensive Guide from Structural to Applications

Ⅰ. Basic Concept

A brass plumbing nipple is a brass pipe fitting with external threads at both ends. It primarily connects two pipes or devices with internal threads, serving to extend pipelines, alter connection positions, or adjust installation spacing. Structurally, it is a short brass tube with standard threads machined at both ends for quick tightening with threaded connectors.

Ⅱ. Structure and Material Characteristics

(1) Structural Composition

· Main Body: Cylindrical brass tube, typically ranging from 1/2 inch to 12 inches in length.

· Threaded Ends: External threads must conform to standard specifications and be matched with compatible fittings.

· Surface Treatment: Typically in natural brass color, with some products being electroplated for improved corrosion resistance and aesthetics.

(2) Material Advantages

Key properties of brass:

· Corrosion Resistance: Resistant to water, steam, and general corrosive media, suitable for water supply, drainage, and gas systems.

· Strength & Toughness: Moderate mechanical properties, unlikely to break, and can withstand pressures ≤1.6MPa.

· Machinability: High-precision threads ensure tight engagement, reducing the risk of stripping during installation.

Ⅲ. Classification and Application Scenarios

(1) Classification by Purpose

1. Standard Nipple:

· Uniform thread length at both ends for straight pipeline extension.

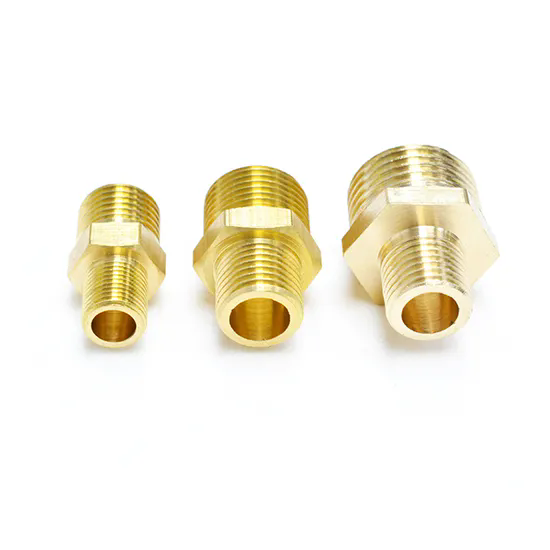

2. Reducer Nipple:

· Different thread diameters at both ends for reducing or enlarging connections.

3. Long Thread Nipple:

· Extended thread length for use with locknuts, allowing installation position adjustment.

(2) Application Fields

· Building Water Systems:

· Connecting faucets, angle valves, and water pipes.

· Acting as an intermediate connector for repairing damaged pipes.

· HVAC:

· Segmenting heating pipes and radiator connections.

· Extending and redirecting air conditioning condensate pipes.

· Gas Systems:

· Short-distance connections for household gas meters and stoves.

· Equipment Installation:

· Transition connections for industrial equipment, water pumps, and pressure gauges.

Ⅳ. Installation and Precautions

(1) Installation Steps

1. Specify Specifications: Verify thread types and pipe diameters.

2. Apply Sealing Materials:

· Wrap Teflon tape or apply thread sealant to prevent leaks.

3. Tighten Connections:

· Use a pipe wrench to screw both ends into female threads, ensuring coaxial alignment to avoid thread damage.

4. Pressure Test:

· Check for leaks after water supply; re-tighten or replace seals if necessary.

(2) Usage Taboos

· Avoid Overpressure: Brass plumbing nipple nipples typically withstand ≤1.6-2.5MPa; use steel fittings for high-pressure systems.

· Prevent Thread Damage:

· Do not overtighten to avoid stripping threads; replace immediately if severe wear is found after disassembly.

· Media Compatibility:

· Prohibit use with strong acids or chlorinated solvents to prevent brass corrosion.

Ⅴ. Selection Standards and Common Specifications

(1) International Standards

· Thread Standards:

· NPT (National Pipe Thread): 60° taper thread for North American water/gas systems.

· BSPT (British Standard Pipe Taper): 55° taper thread for Europe and Commonwealth countries.

· G (ISO 7-1): Parallel thread requiring sealing rings, common in low-pressure water pipes.

· Material Standards:

· US: ASTM B88 (seamless copper pipe), ASTM B43 (brass rod machining).

· EU: EN 1254-1 (copper and copper alloy pipe fittings).

Ⅵ. FAQ

Q: Can brass nipples be used in hot water systems?

A: Yes. Brass plumbing nipple withstands temperatures up to 120°C, suitable for household hot water pipes, but avoid prolonged exposure to >150°C.

Q: How to check thread compatibility?

A: Observe thread profiles: NPT (60° taper), BSPT (55° taper), and G (parallel threads). Test fitting gently (never force mismatched threads).
