A Complete Guide to Flange Adaptors for PE, PVC, and DI Pipes

May. 20, 2026

Flange adaptors are essential pipe fitting components used to create a secure transition between plain-ended pipes and flanged pipe systems. In water supply, drainage, irrigation, industrial piping, and utility networks, they make it easier to connect different materials, simplify installation, and support reliable maintenance. When working with PE pipe connection systems, PVC pipe fittings, or ductile iron (DI) pipelines, choosing the right flange adaptor can have a major impact on sealing performance, structural stability, and long-term service life.


For engineers, contractors, distributors, and project buyers, understanding how flange adaptors work is more than a technical detail. It helps prevent leakage, reduces downtime, and ensures compatibility across different piping materials. This guide explains the structure, working principle, material options, applications, and selection tips for flange adaptors used with PE, PVC, and DI pipes.




What Is a Flange Adaptor?

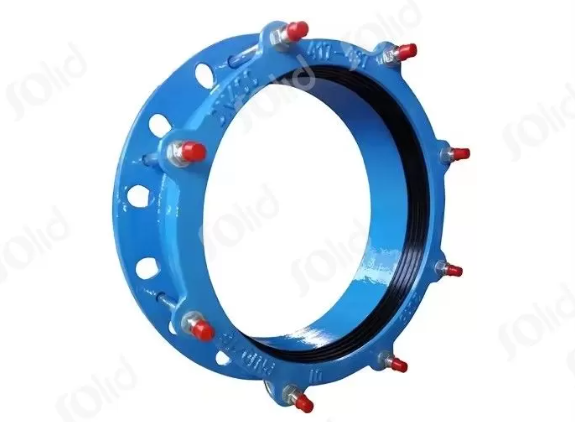

A flange adaptor is a mechanical pipe fitting that converts a plain-ended pipe into a flanged connection. It usually consists of a body, sealing components, and a flange end that can be bolted to another flanged pipe, valve, pump, or fitting. The adaptor grips the pipe tightly and creates a sealed connection without the need for welding or complex fabrication.


Flange adaptors are especially useful where pipes of different materials must connect to standard flanged equipment. In many systems, PE, PVC, and DI pipes are combined in one network, and a flange adaptor becomes the bridge between them.


Why Flange Adaptors Are Important

Modern piping systems often use multiple materials because each one offers specific advantages. PE pipes are flexible and corrosion-resistant. PVC pipes are lightweight and economical. DI pipes are strong and durable for high-pressure applications. However, these materials do not always connect directly to each other or to flanged equipment.


This is where flange adaptors provide value:

·   They create a practical transition between different pipe systems.
·   They support secure sealing in water, sewage, and industrial networks.
·   They simplify installation and maintenance.
·   They reduce the need for custom fabrication.
·   They improve system flexibility in mixed-material pipelines.


In many projects, a well-chosen flange adaptor is the difference between a reliable network and a connection that requires repeated repair.


Flange Adaptor for PE Pipe Connection

PE pipes, also known as polyethylene pipes, are widely used in water transmission, gas distribution, irrigation, and mining. Their flexibility and corrosion resistance make them popular, but their soft structure requires a connection method that distributes pressure evenly.


A flange adaptor for PE pipe connection is designed to grip the pipe firmly without damaging it. The adaptor typically uses a compression-style body or a mechanical end connection that works with a backing flange and gasket. This creates a strong transition from the PE pipe to flanged equipment such as valves, pumps, and hydrants.


When using flange adaptors with PE pipe, several points matter:

·   The pipe outer diameter must match the adaptor size exactly.
·   The adaptor should be suitable for the pipe pressure rating.
·   A proper gasket material should be selected for the fluid and temperature.
·   The flange face should align correctly with the mating flange.


PE systems benefit from flange adaptors because they make it possible to combine flexible PE pipelines with rigid metal components in a safe and practical way.


Flange Adaptor for PVC Pipe Fittings

PVC pipe fittings are commonly used in water treatment, irrigation, chemical transport, and low- to medium-pressure pipelines. PVC is rigid and economical, but its connection requirements differ from those of metal pipes or flexible PE pipes.


A flange adaptor for PVC pipe fittings helps convert a plain PVC pipe into a flanged end. This is often needed when connecting the pipe to valves, meters, tanks, or equipment that uses standard flange connections. Because PVC is more rigid and brittle than PE, the adaptor must support the pipe without creating stress points.


Good practice when selecting a flange adaptor for PVC includes:

·   Avoiding over-tightening during installation.
·   Using the correct gasket thickness and material.
·   Ensuring the flange adaptor is compatible with solvent cemented or plain-end PVC pipe where applicable.
·   Supporting the pipe properly to reduce bending stress.


For many projects, flange adaptors are a better choice than improvised transition methods because they offer a cleaner seal, easier maintenance, and better system compatibility.


Flange Adaptor for DI Pipes

Ductile iron pipes are known for strength, pressure resistance, and long service life. They are commonly used in municipal water supply, wastewater systems, fire protection, and infrastructure projects. Because DI pipes are often part of high-demand networks, the flange adaptor must be strong, precise, and durable.


A flange adaptor for DI pipes usually features a robust metal body and a reliable sealing system. It is designed to handle greater mechanical stress and maintain a stable joint under demanding conditions. In many applications, DI pipes connect to valves, pumps, or special fittings using flange adaptors to maintain standardization across the system.


The main benefits for DI applications include:

·   High pressure tolerance
·   Strong mechanical support
·   Long-term sealing performance
·   Compatibility with heavy-duty infrastructure systems
·   Reduced maintenance needs


Since DI pipelines are often used in critical utility networks, the quality of the flange adaptor should match the quality of the pipe itself.


Common Materials Used in Flange Adaptors

Flange adaptors are manufactured from several materials depending on the pipe type and application. Common options include ductile iron, carbon steel, stainless steel, and coated iron components. For corrosion resistance, many products use epoxy coating, fusion bonded epoxy, or protective paint systems.


The material choice depends on several factors:

·   Water quality
·   Soil conditions
·   Chemical exposure
·   Pressure requirements
·   Installation environment

For example, in aggressive environments or underground networks, corrosion protection is especially important. A flange adaptor with a strong coating system can significantly extend service life and reduce replacement costs.


Key Features to Consider Before Buying

Selecting the right flange adaptor is not only about size. Buyers should also evaluate technical and practical factors that affect performance.


Some of the most important considerations include:

·   Pipe material compatibility
·   Outside diameter accuracy
·   Pressure rating
·   Flange standard such as PN10, PN16, ANSI, or other regional standards
·   Gasket material
·   Coating and corrosion resistance
·   Ease of installation
·   Working temperature range


In international projects, flange standards may vary by region. Matching the adaptor to the correct flange standard is essential for safe and leak-free operation.


Typical Applications

Flange adaptors for PE, PVC, and DI pipes are used in a wide range of industries and infrastructure systems. Common applications include:

·   Municipal water supply networks
·   Wastewater and sewage treatment
·   Irrigation and agricultural pipelines
·   Pump station connections
·   Valve and meter installations
·   Industrial fluid transfer systems
·   Fire protection pipelines
·   Desalination and water treatment plants

Because these adaptors support material transitions, they are especially useful in mixed pipeline systems where flexibility, strength, and corrosion resistance must work together.


Installation Tips for Better Performance

Even a high-quality flange adaptor can fail if installed poorly. Proper installation is critical to ensure sealing and prevent pipe stress.


Important installation tips include:

·   Clean the pipe end before fitting the adaptor
·   Check that the pipe is cut square and free from damage
·   Tighten bolts evenly in a cross pattern
·   Do not over-torque the bolts
·   Use the correct gasket and flange alignment
·   Provide support for the connected pipe to reduce vibration and bending

Good installation practice increases service life and helps the entire system perform as designed.


Why Flange Adaptors Are a Smart Choice

Flange adaptors offer a practical and cost-effective solution for connecting PE, PVC, and DI pipes to flanged equipment. They reduce complexity, support multi-material systems, and help ensure leak-resistant connections across many types of projects. For suppliers, contractors, and distributors, they are a highly marketable product category because they address a common need in water and utility infrastructure.


As pipelines continue to evolve toward greater efficiency and reliability, flange adaptors remain one of the most useful fitting solutions in the market. Their ability to connect different materials with confidence makes them an essential part of modern pipe networks.


Conclusion

A flange adaptor may seem like a simple component, but its role in PE pipe connection, PVC pipe fittings, and DI pipe systems is extremely important. It provides a dependable bridge between plain-ended pipes and flanged equipment, helping create stable, maintainable, and efficient piping networks.


Whether the project involves water distribution, irrigation, wastewater, or industrial fluid handling, choosing the right flange adaptor improves performance and reduces long-term risk. By understanding pipe compatibility, material selection, flange standards, and installation requirements, buyers and engineers can make better decisions and build stronger systems.
